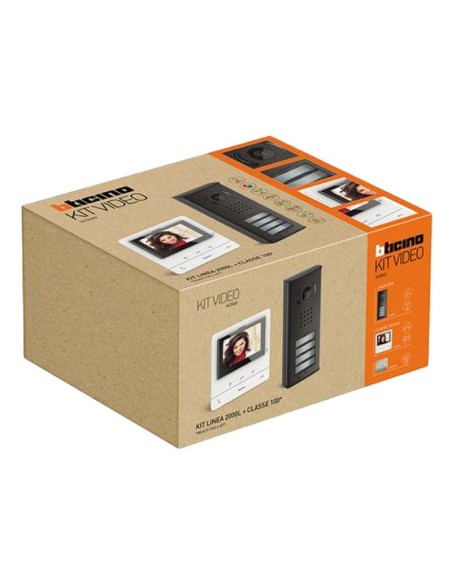

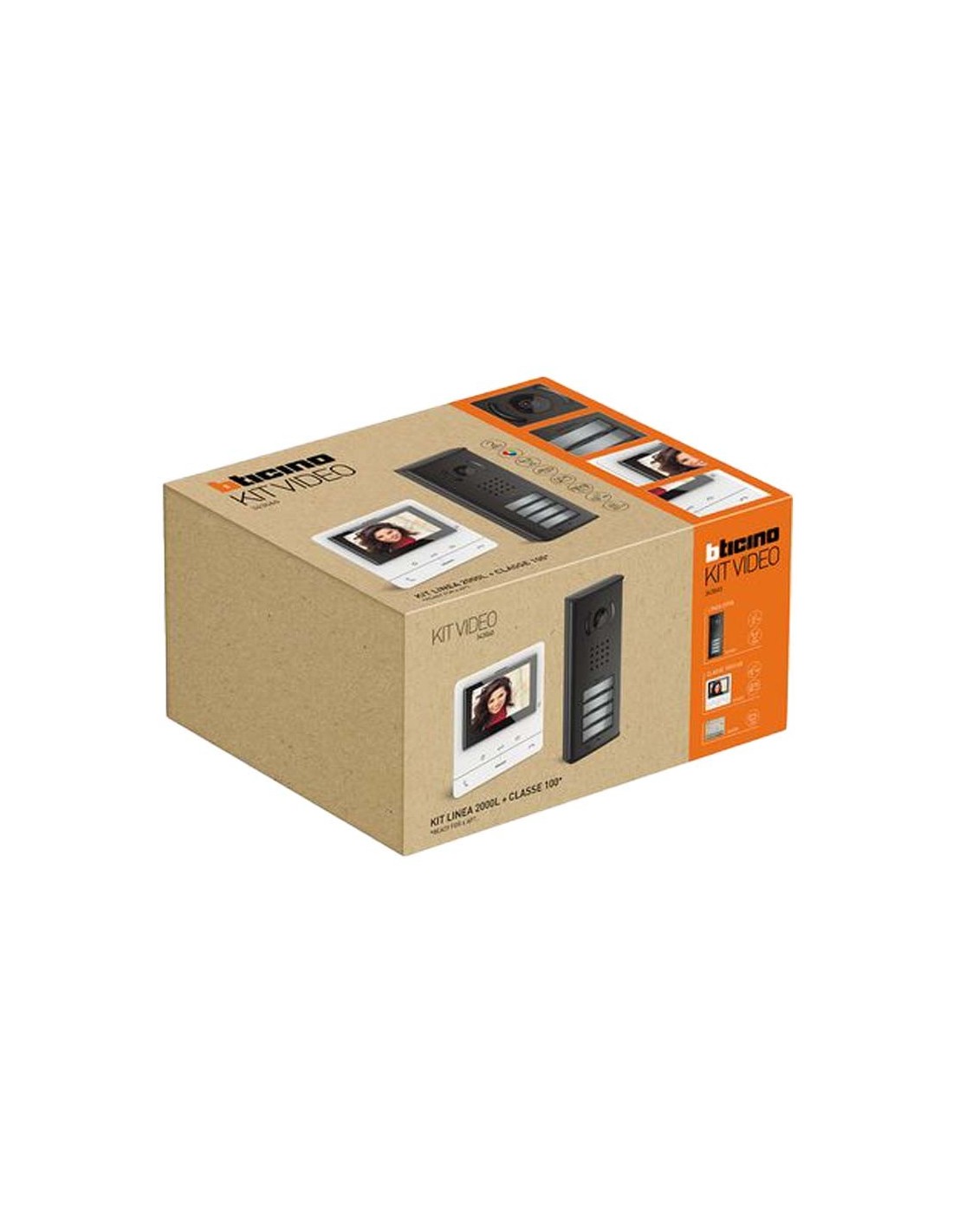

BTicino Classe 100V16E Hands-free 4-Call Kit

Hands-free kit for up to 4 calls, featuring: Classe 100V16E video internal unit and Linea 2000L4 entrance panel with black finish; color camera (2 MP) with ±15° tilt adjustment on both the vertical and horizontal axes.

Integrated light sensor for night-time backlighting of nameplates and white LEDs to illuminate the field of view in low-light conditions. Configurable for installations serving up to 4 apartments via 4 front push-buttons.

Allows activation of an electric lock connected directly between terminals S+ and S- (18 V, 4 A peak, 250 mA holding current, 30 Ohm max). Relay terminals (C/NC/NO) are also available to control a potential second lock. Rated IP44.

The entrance panel can be installed on the BT-332710 flush-mounted box.

The video door entry unit features a 5” LCD display and a teleloop function (for use by hearing aid wearers with a T-switch).

It is equipped with:

• 2 physical buttons for controlling main functions – answering and ending calls;
• 3 touch buttons for controlling main functions – electric lock activation, staircase light control, and entrance panel activation/cycling;
• 4 additional configurable touch buttons with various functions – e.g., intercom, additional electric lock activation, generic activations.

Wall-mounted installation using the supplied bracket, or table-top installation using accessory supports (2 x 344692) – purchased separately. The device, which also includes a professional office function, requires configuration.
