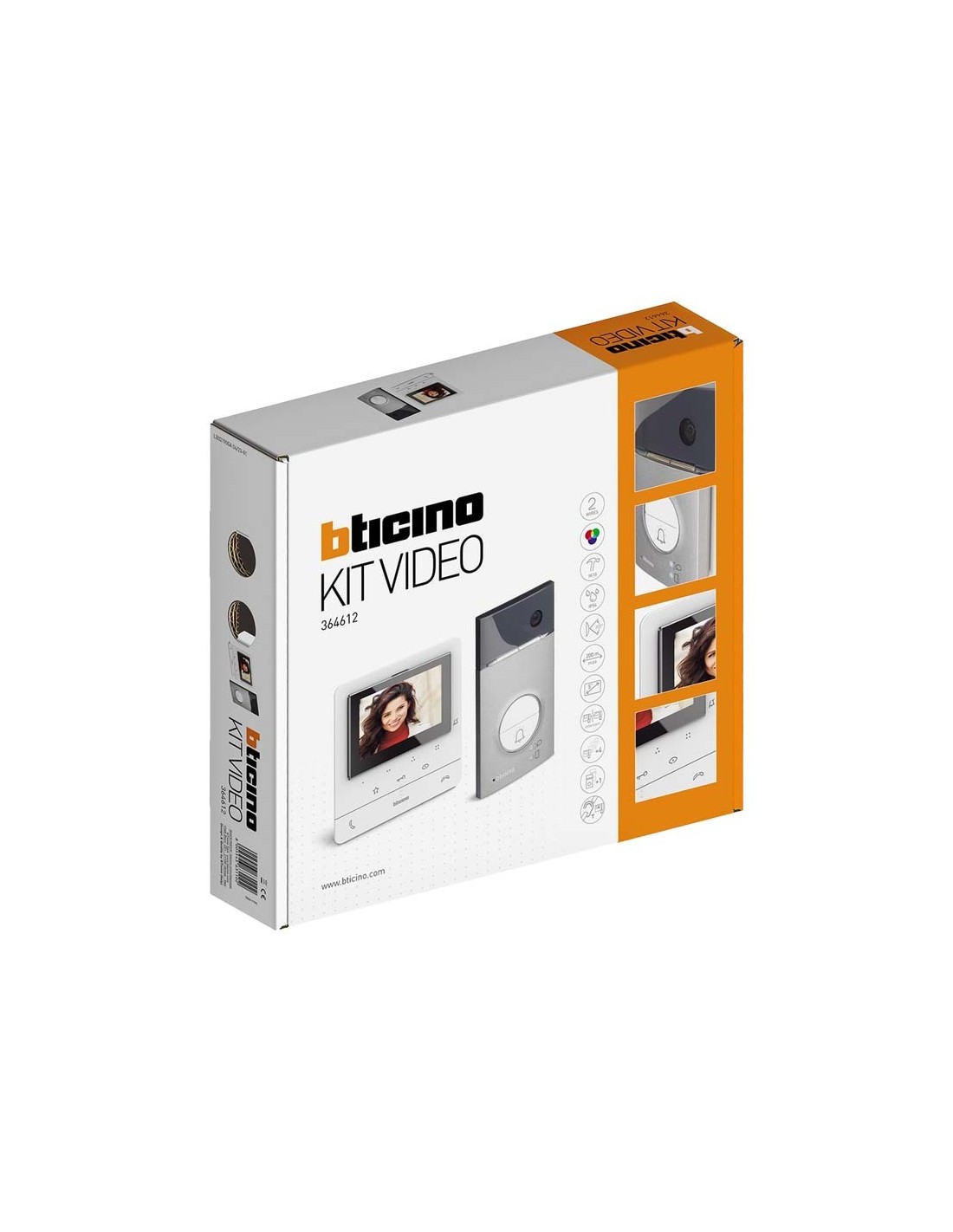

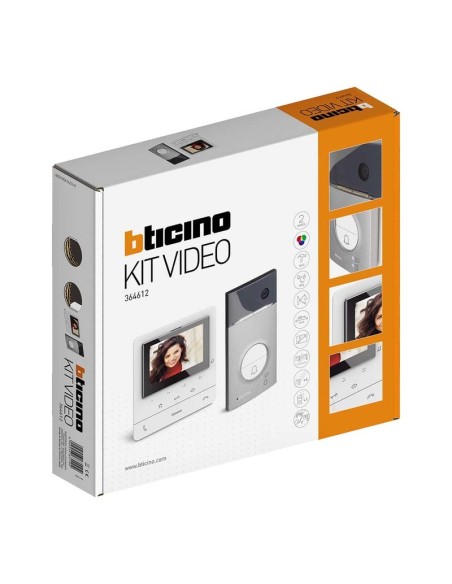

CLASSE100 V16E hands-free video door entry kit for single-family homes BTicino

Hands-free video door entry kit for single-family homes, featuring the Classe 100V16E video internal unit and the Linea 3000 entrance panel with a Zamak front cover and wide-angle color camera. Configurable for single-family or two-family installations. White LED backlighting for the nameplate.

Can be wall-mounted or flush-mounted using specific accessories: (350020) flush-mounting box plus (343061) flush-mounting accessory – to be purchased separately. Can be fitted with a rain shield (343051) – to be purchased separately. The entrance panel has an IP54 protection rating and an IK10 robustness rating.

The video internal unit features a 5” LCD display and a teleloop function (for use by hearing aid wearers with a T-switch). It is equipped with 2 physical buttons for main functions—answering and ending calls—and 3 touch-sensitive buttons for key functions:

• electric lock activation;
• staircase light control;
• entrance panel activation/cycling;

plus 4 additional configurable touch-sensitive buttons that can be assigned various functions—e.g., intercom, additional electric lock activation, or generic activations.

Wall-mounted installation using the supplied bracket, or table-top installation using accessory supports (2 x 344692)—to be purchased separately. The device, which also includes a professional office function, requires configuration.
