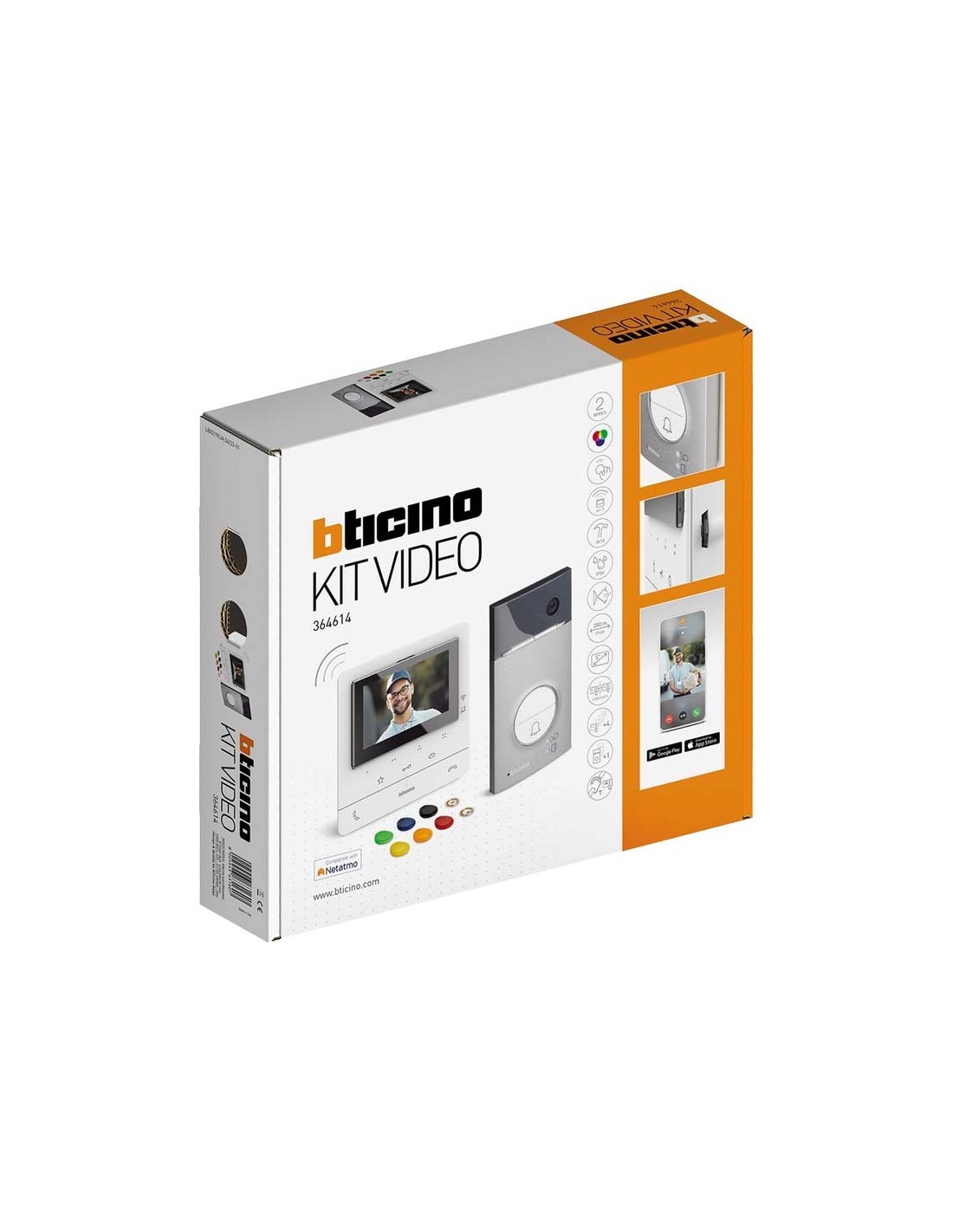

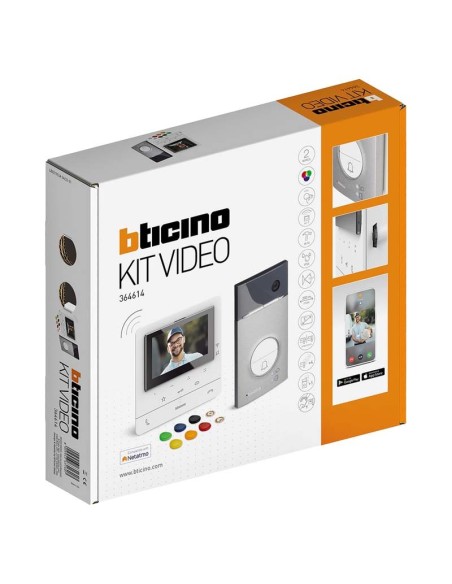

BTicino CLASSE100 X16E hands-free kit for single-family homes

Hands-free single-family kit containing: CLASSE 100X16E Wi-Fi connected video internal unit (hands-free, T-coil/teleloop, 5” LCD display); LINEA 3000 entrance panel with Zamak front cover, wide-angle color camera, and proximity reader (includes a set of colored badges and two clear discs for electric lock activation).

Configurable for single-family and two-family installations. It can manage up to 20 badges (125 kHz) for electric lock activation (including the system management badge). Nameplate illuminated by white LED.

Can be wall-mounted or flush-mounted using specific accessories: (350020) flush-mounting box and (343061) flush-mounting accessory – sold separately. Can be fitted with a rain cover (343051) – sold separately. The entrance panel has an IP54 protection rating and an IK10 robustness rating.

The video internal unit features a T-coil/teleloop function (to enable use by hearing aid wearers with a T-switch).

It features:

• 2 physical buttons for controlling main functions – answering and ending calls –
• 3 touch buttons for controlling main functions – electric lock activation, staircase light control, and entrance panel activation/cycling –
• 4 additional configurable touch buttons for various functions – e.g., intercom, additional electric lock activation, generic activations.

It is equipped with a side lever for adjusting: display color, brightness, and contrast; audio volume; ringtone volume; and configuration settings.

Wi-Fi. LED indicators are provided for call muting and Wi-Fi status.

Additionally, the Wi-Fi connection allows the video door entry unit to be paired with the Door Entry App (available for Android and iOS). The App enables management of the unit's main functions (call answering, electric lock activation, outdoor station activation/cycling, firmware updates, and additional activations).

Installation can be wall-mounted using the dedicated bracket or via optional table-top stands (2 x 344692)—sold separately. The device, which also features a professional office mode, requires configuration. It supports integration with connected third-party devices (e.g., NETATMO smart indoor and outdoor cameras).
