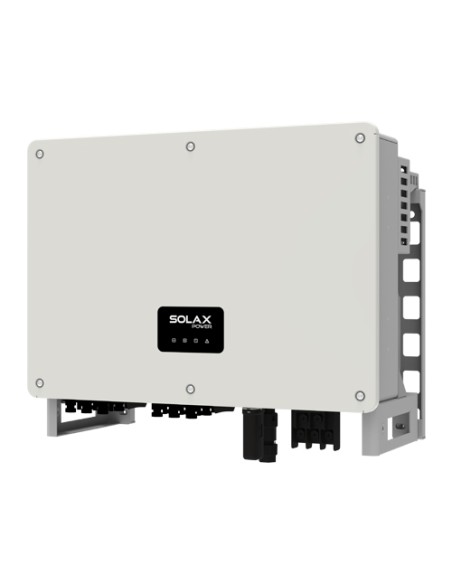

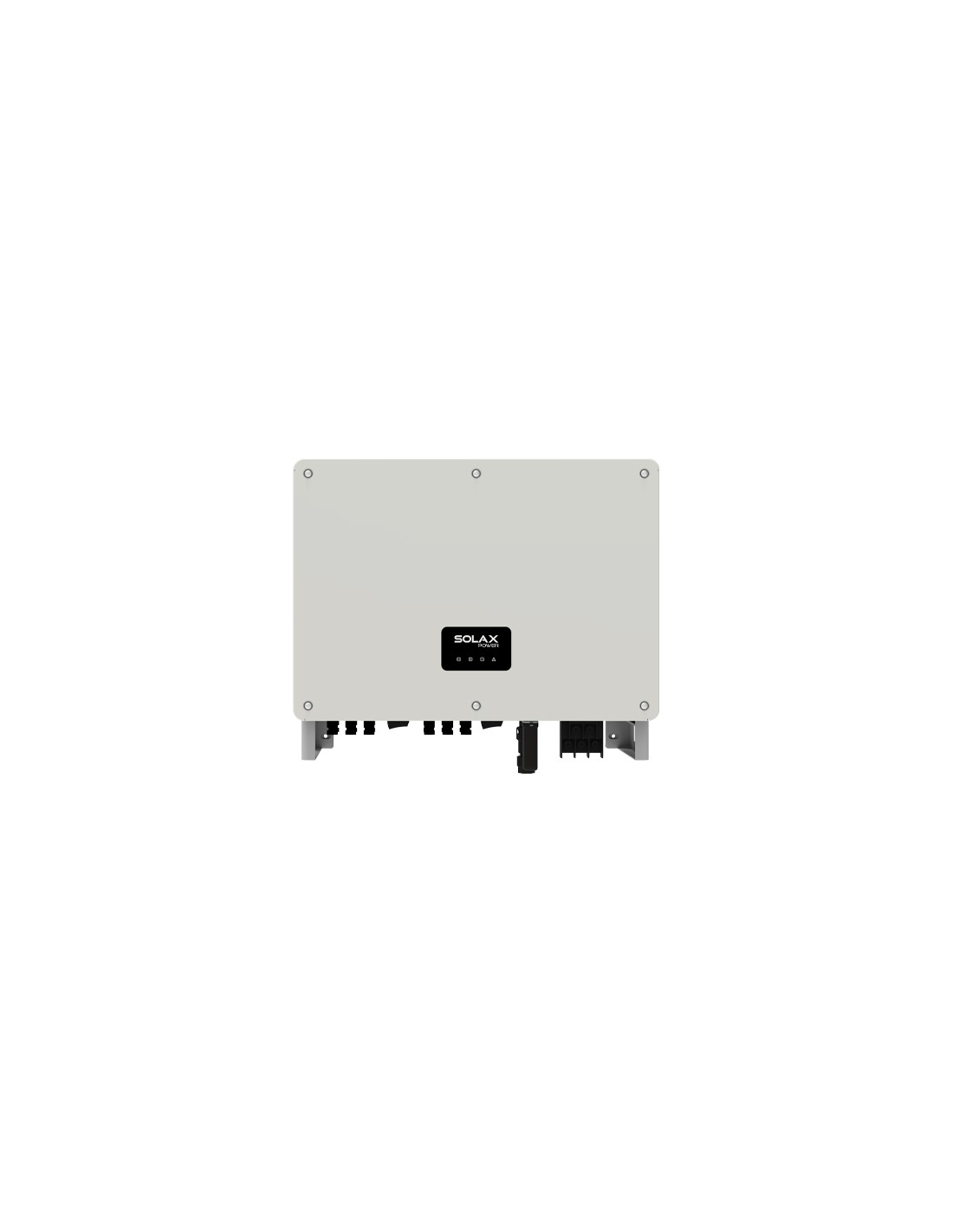

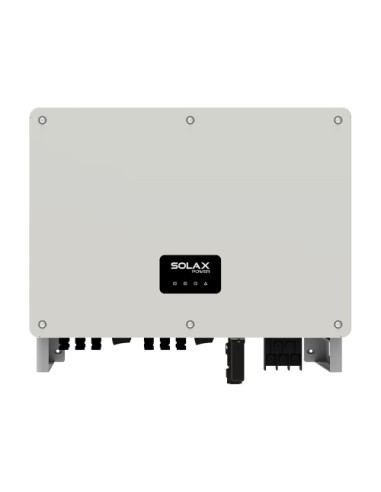

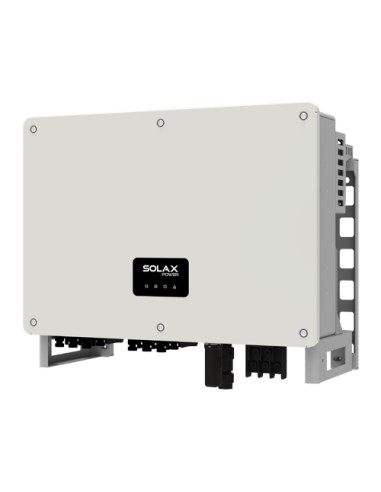

Three-phase string inverter 50kW SOLAX POWER X3 MGA - X3-MGA-50K-G2
X3-MGA-50K-G2
You might also like
Greater Energy Harvest
- Maximum efficiency of 98.4%
- MPPT voltage range from 180 to 1000 Vdc
- Up to 6 MPPTs, 2 strings per MPP tracker
- 150% PV input oversizing, 110% output overloading
- Maximum MPPT current of 32A
Safety and Reliability
- IP66 protection
- AFCI protection (Optional)
- SPD (Type II) on both AC and DC, SPD Type I+II (Optional)
Smart Maintenance and Cost Efficiency
- Integrated export power control
- Remote configuration and updates
- Supported smart I-V curve diagnosis
- Aluminum AC cable connection available
- Fuse-free design with smart string current monitoring
- Nighttime reactive power compensation
- 24/7 operation monitoring (Optional)
- Smart air cooling for extended fan lifespan
- Advanced heat dissipation for a system 10% lighter
- Power
- 50kW
- Measures
- 630 x 521 x 286mm
- Tensione di lavoro
- 600V
- Tipo inverter
- Stringa
- Single-phase/Three-phase
- Three-phase
