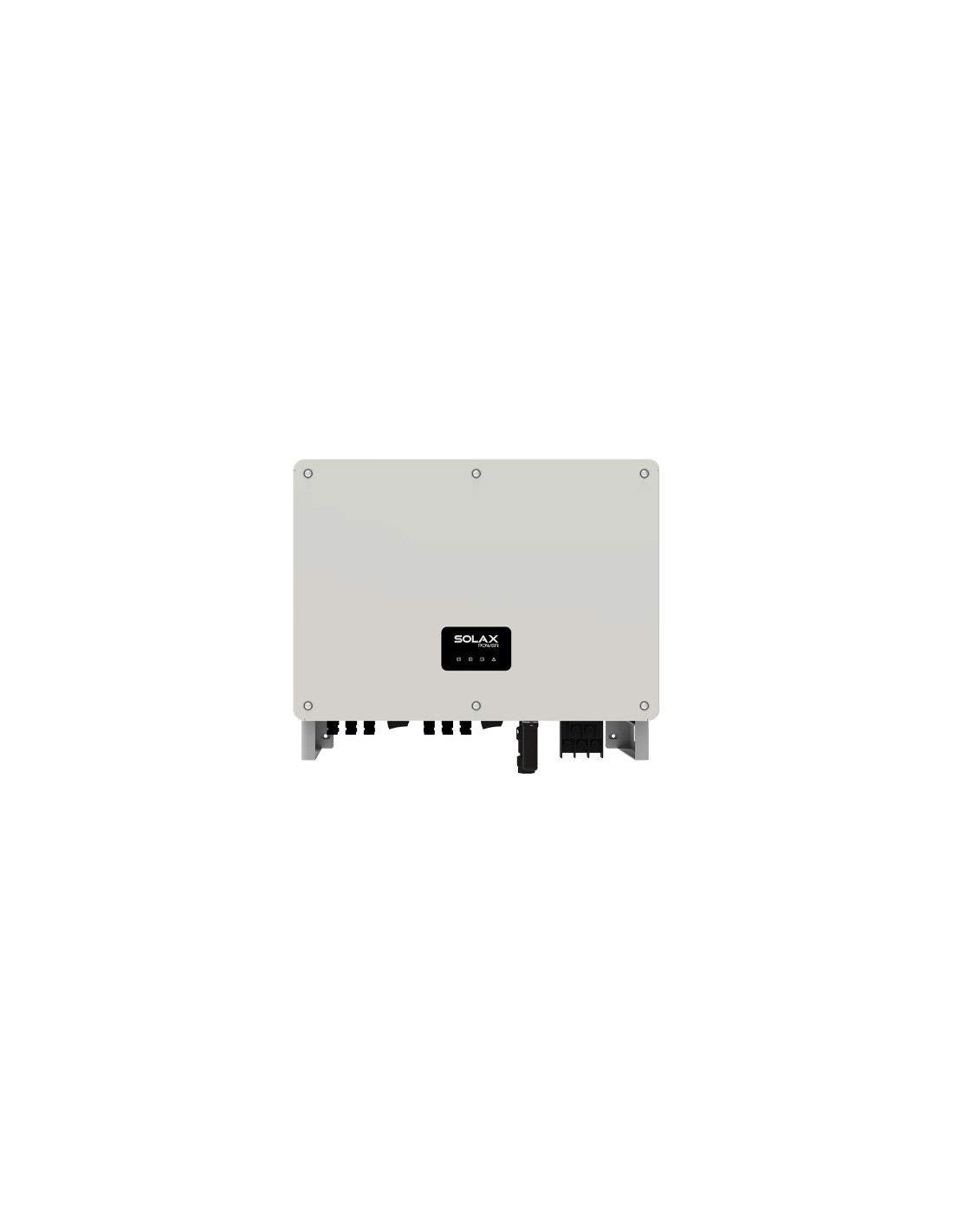

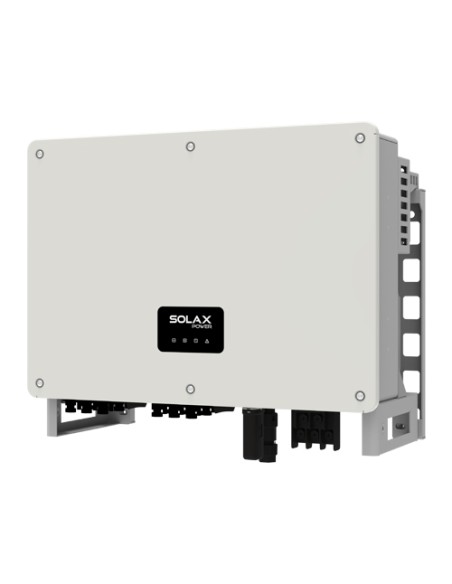

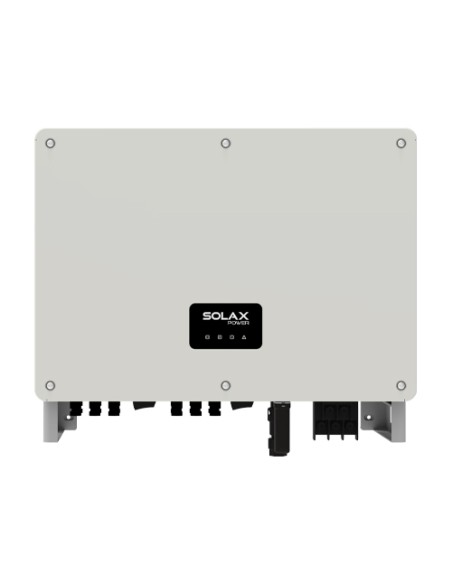

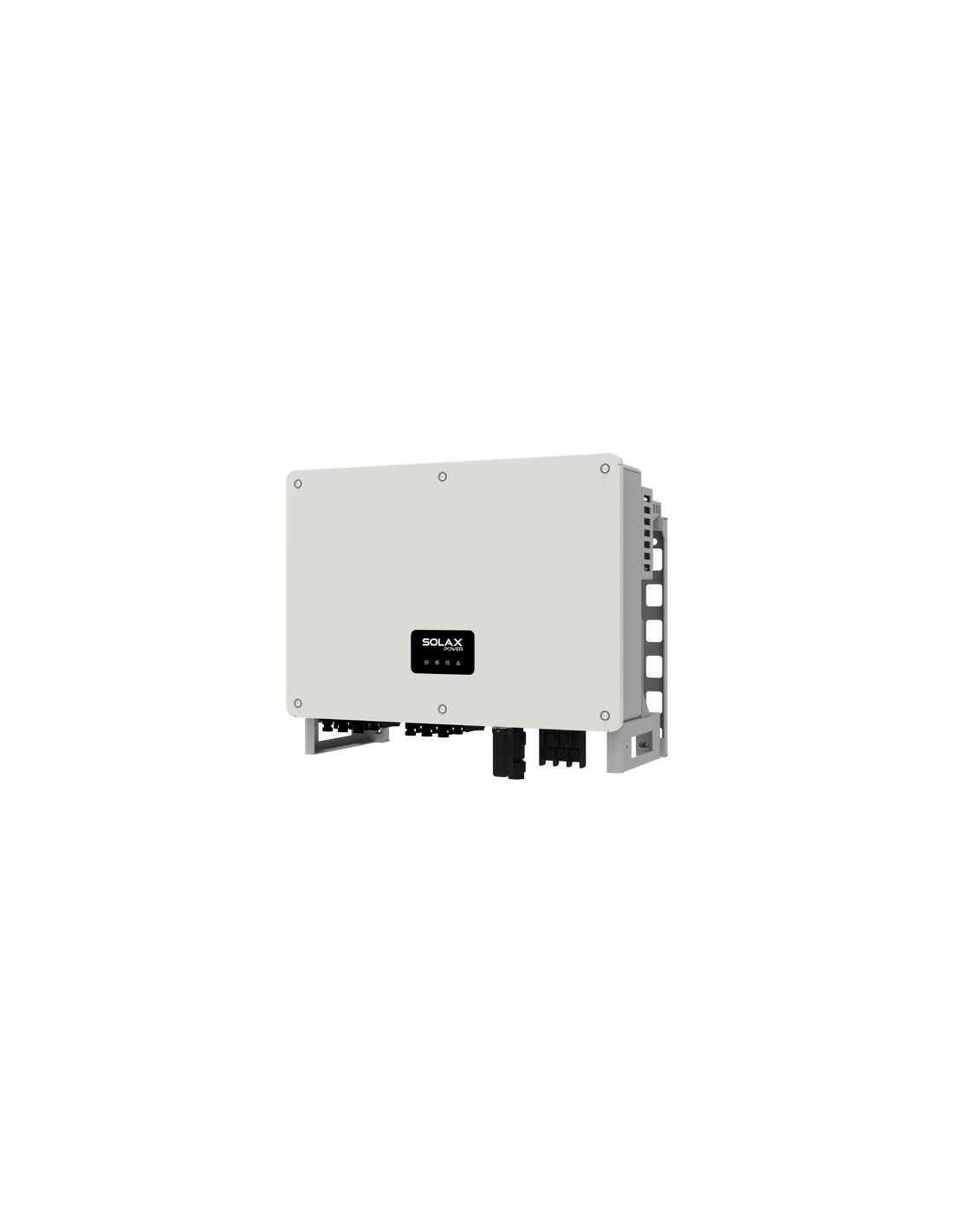

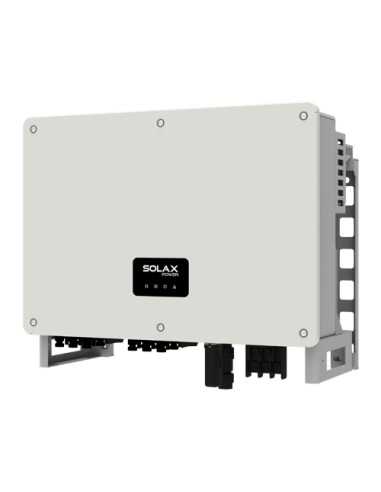

Three-phase string inverter 40kW SOLAX POWER X3 MGA - X3-MGA-40K-G2

Greater Energy Harvest

• Maximum efficiency of 98.4%
• MPPT voltage range from 180 to 1000 Vdc
• Up to 6 MPPTs, 2 strings per MPP tracker
• 150% PV input oversizing, 110% output overloading
• Maximum MPPT current of 32A

Safety and Reliability

• IP66 protection
• AFCI protection (Optional)
• SPD (Type II) on both AC and DC, SPD Type I+II (Optional)

Smart Maintenance and Cost Efficiency

• Integrated export power control
• Remote configuration and updates
• Supported smart I-V curve diagnosis
• Aluminum AC cable connection available
• Fuse-free design with smart string current monitoring
• Nighttime reactive power compensation
• 24/7 operation monitoring (Optional)
• Smart air cooling for extended fan lifespan
• Advanced heat dissipation for a system 10% lighter
