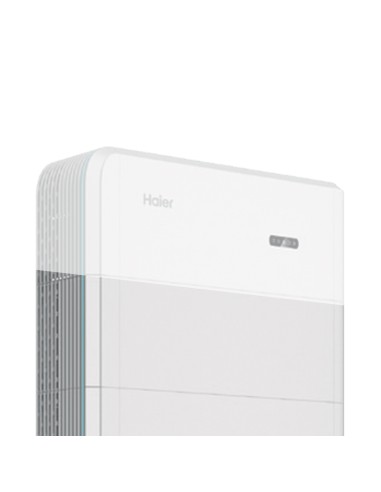

Haier 8kWh lithium battery for Smart Cube integrated system
MB01E0M00

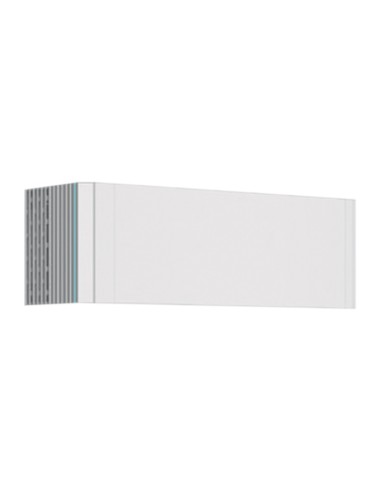

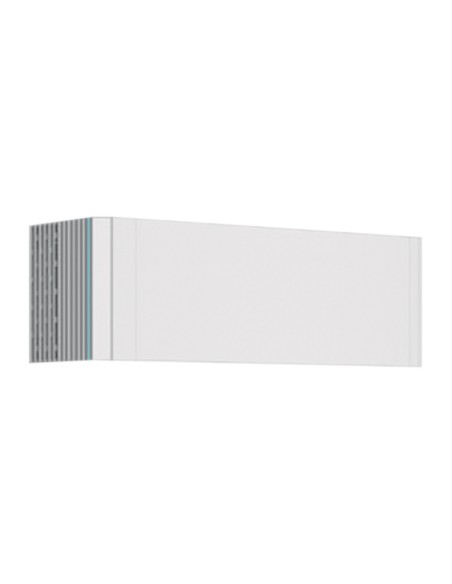

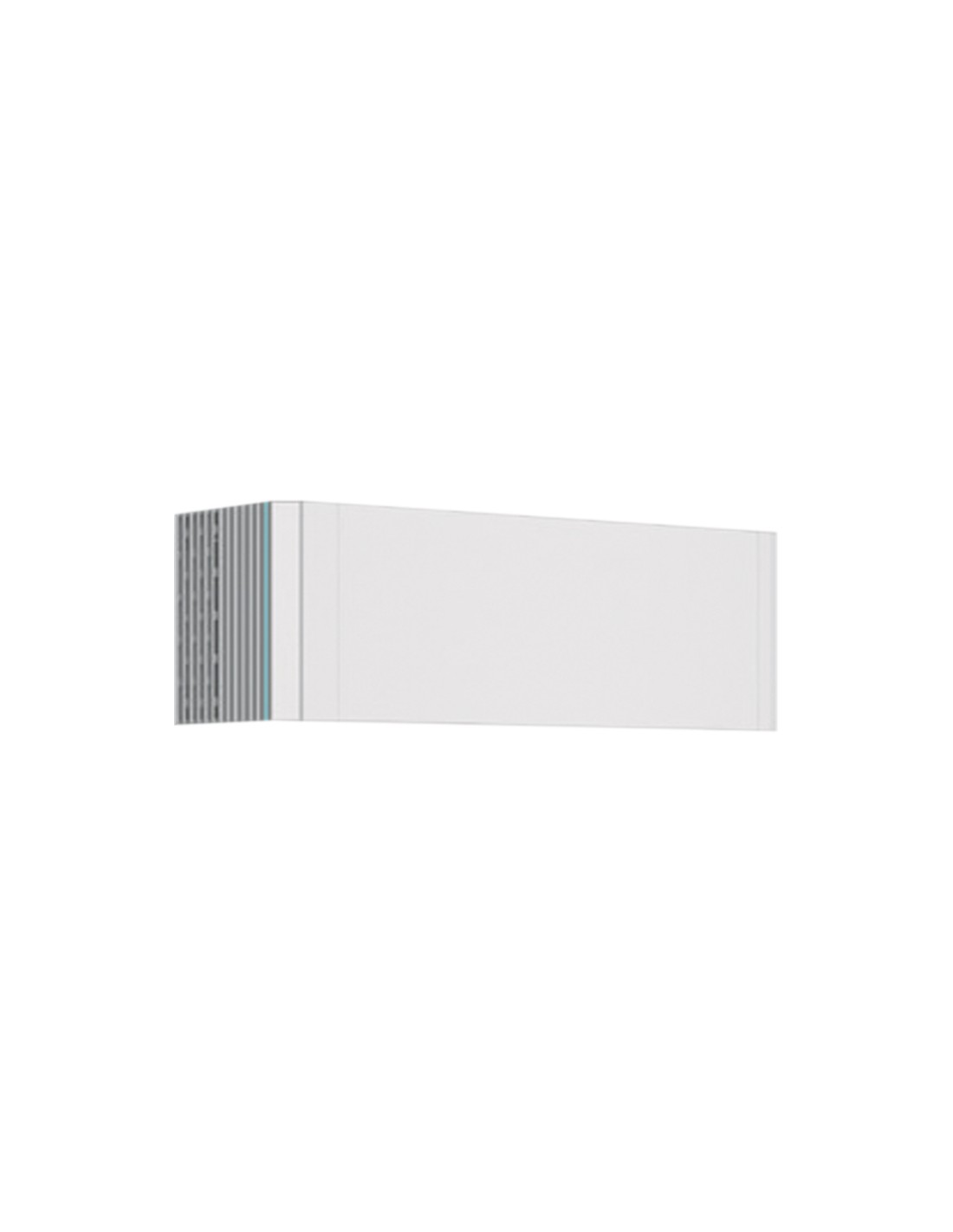

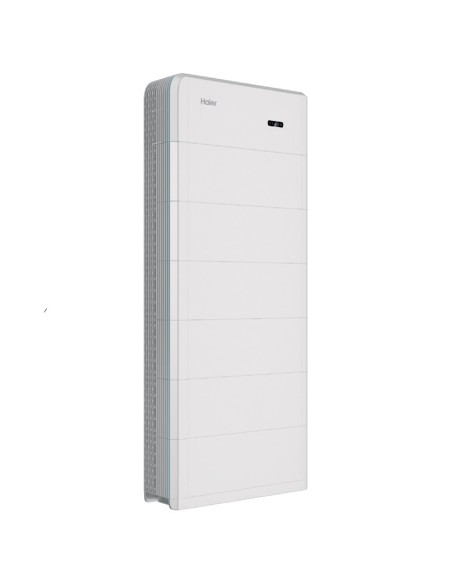

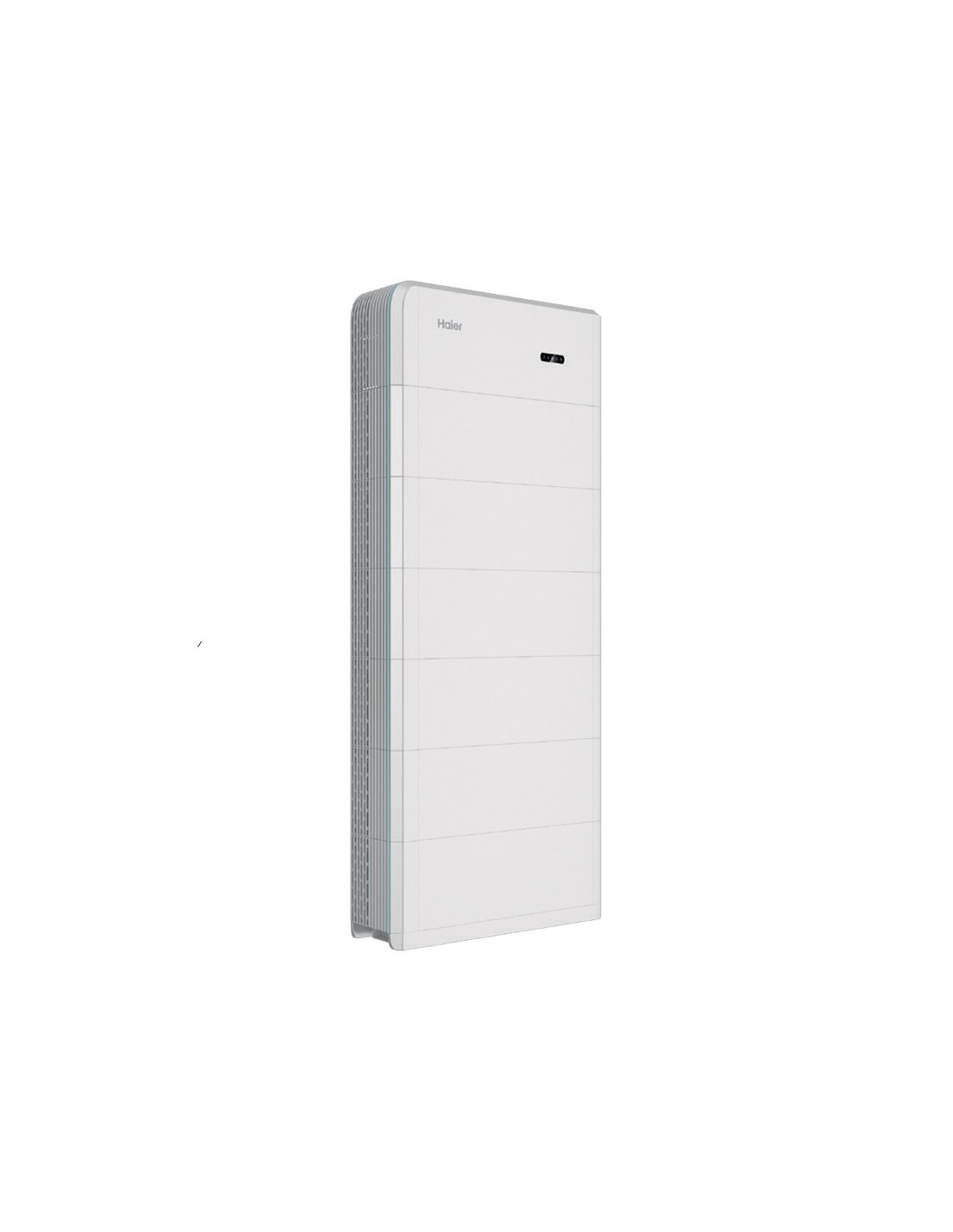

The Haier Smart Cube 8kWh LiFePO4 HBP-8.0 is a battery module for home energy storage.
Haier 8kWh lithium battery for Smart Cube integrated system
The Haier Smart Cube 8kWh LiFePO4 HBP-8.0 is a battery module for home energy storage. It uses LiFePO4 technology, ensuring high safety and long life, and is designed for integration into energy storage systems.
Main features
- Model: HBP-8.0;
- Technology: Lithium iron phosphate (LiFePO₄) battery;
- Total energy capacity: 8.06 kWh;
- Usable energy capacity: 7.8 kWh;
- Maximum charge/discharge power: 4000 W;
- Peak power (10 seconds): 6000 W;
- Voltage range (single phase): 300 ~ 600 V;
- Voltage range (three phase): 600 ~ 900 V;
- Weight: 70 kg;
- Dimensions (W x H x D): 767 x 270 x 260 mm;
- Operating temperature: -20 ~ 55 °C;
- Protection degree: IP66;

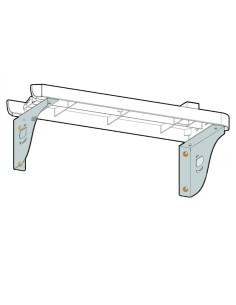

- Installation: Floor or wall mounted;
- Cooling: Natural convection;
- Compliance: CE, IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040.
- Measures
- 767 x 270 x 260 mm
- Storage capacity
- Lithium iron phosphate
- Accumulation capacity
- 8kWh
