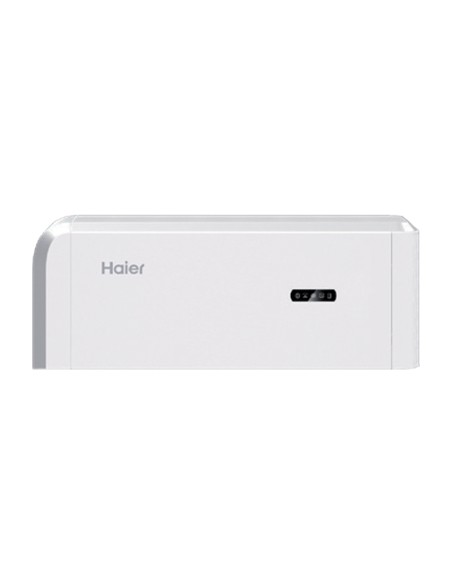

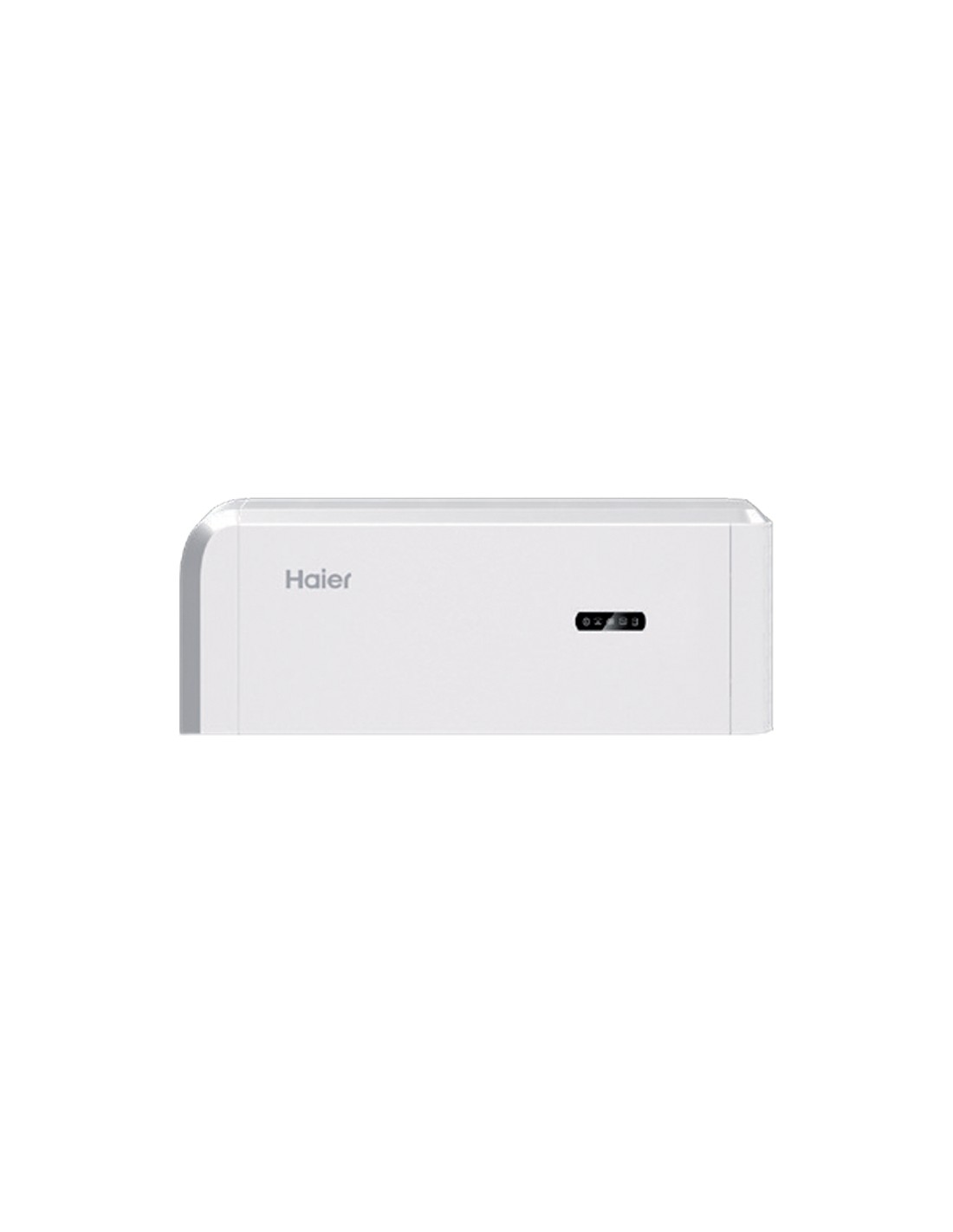

Haier 6kW sngle-phase hybrid inverter for Smart Cube integrated system

The Haier inverter is a single-phase hybrid inverter with an output power of 6kW. It is equipped with two MPP trackers and manages a maximum photovoltaic power of 12kW. It works by converting the direct current of the solar panels into alternating current, allowing the energy to be fed into the grid or stored in the batteries.

Thanks to wireless mounting and an integrated battery management system, it offers high efficiency and ease of installation, representing an advanced solution for residential and commercial photovoltaic systems.

Main features

• Maximum efficiency: 98%;
• European efficiency: 97.4%;
• Backup power: up to 9 kW for 10 seconds in case of blackout;
• MPPT voltage range: 50 ~ 550 V (nominal voltage 600 V);
• Maximum AC output current: 30 A;
• Wireless mounting of components for easier installation;
• Integrated battery management system to optimize energy and safety;
• IP66 protection against dust and water, suitable for outdoor installations;
• Cooling passive with natural convection, without fans;
• Communications: WLAN, Ethernet, RS485, 4G/3G/2G module;
• Conformity: CE, IEC/EN 60730-1, 62619, 63056, 62040.
