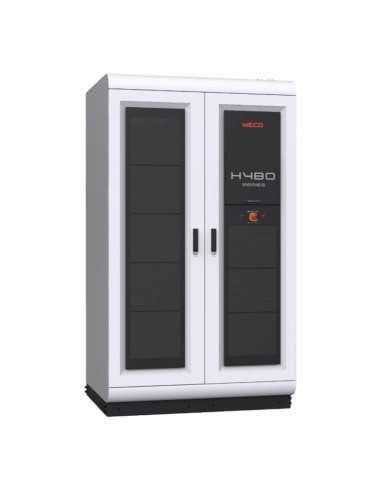

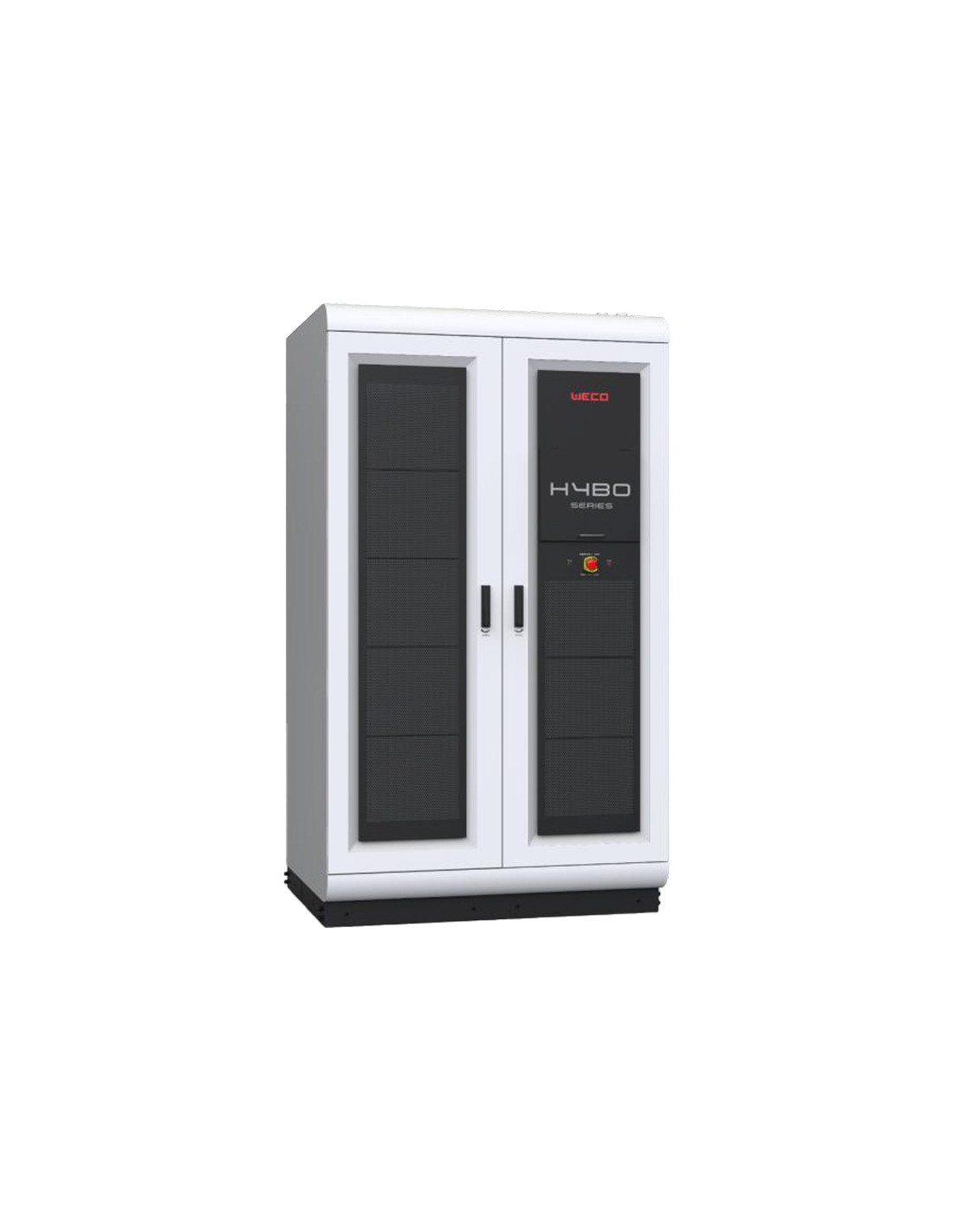

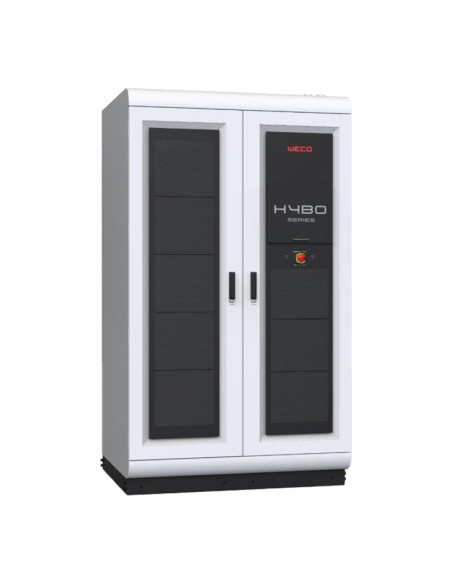

C&I 240kWh Energy Conversion and Storage System Weco HYBO HYBRID

The WECO HYBO 240 AC is a high-performance energy conversion and storage system (BESS) designed to meet the needs of the commercial and industrial sector.

It is a hybrid and modular solution that integrates a powerful 240kW inverter (60kW x 4 MPPT), capable of handling high loads and optimizing solar energy usage. Thanks to its flexible architecture, it can operate in both on-grid (grid-tied) and off-grid (isolated backup) modes, ensuring operational continuity even during blackouts.

Compatible with BESS A-KOOL 115, 215, and LI-KOOL 233.

WECO offers a free first COMMISSIONING service (system start-up after installation).

Main Features

• Maximum MPPT Output Power: 60 kW × 4;
• Maximum MPPT Input Design Power: 84 kW × 4;
• Max MPPT Input Voltage: 650 V;
• Minimum MPPT Voltage: 150 V;
• MPPT Operating Range: 200–650 V;
• Maximum MPPT Input Current: 200 A;
• Number of Battery Input Channels: 4;
• Battery Min/Max Voltage: 680–1000 V;
• Maximum Battery Charge/Discharge Power: 240/240 kW;
• AC Side Nominal Power: 240 kW;
• AC Side Nominal Current: 344 A;
• AC Switch and Breaking Capacity: 400 A / 70 kA;
• AC Nominal Voltage: 400 V ± 15%;
• Nominal Frequency: 50 Hz / 60 Hz;
• Maximum Efficiency: 97%;
• Protection Class: Class I;
• Cooling Type: Forced Convection;
• Communication and Protocol: RS485, CAN, Wi-Fi; ModBus TCP/RTU, SunSpec;
• Operating Temperature: -20 °C ~ 55 °C (power derating above 45 °C);
• Weight and Dimensions: 1010 kg; 1527 × 1100 × 2366 mm.
