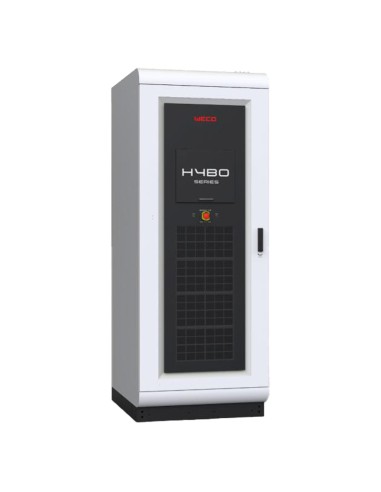

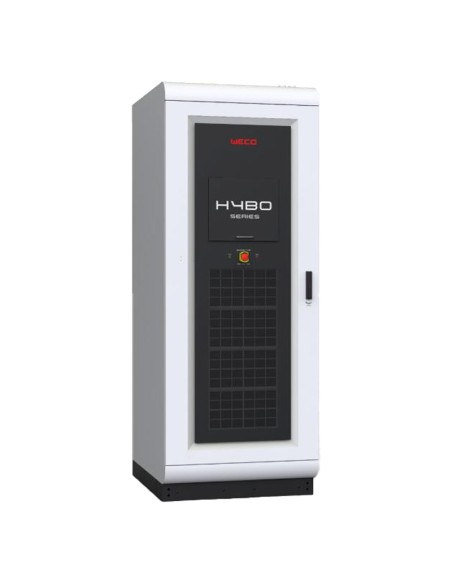

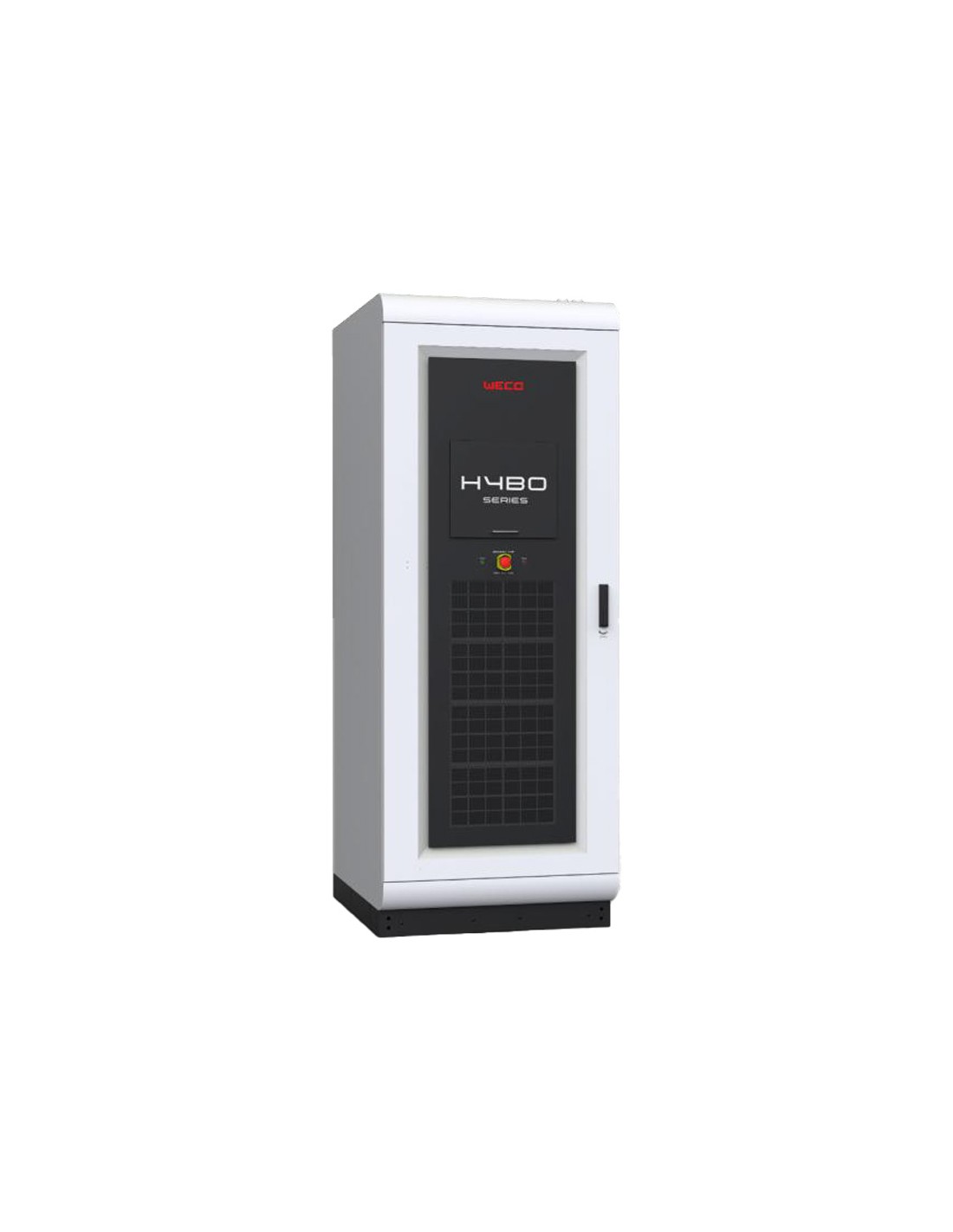

C&I 120kWh Energy Conversion and Storage System Weco HYBO TL PCS

WECO HYBO TL PCS is a modular, compact three-phase energy conversion and storage system (PCS), designed for industrial and commercial applications.

This transformer-less system manages battery charge and discharge up to 180kW, providing reliable backup and off-grid power for critical loads. Thanks to its compact design and high efficiency (97%), the HYBO TL PCS is perfect for those seeking operational continuity and intelligent energy management, without direct photovoltaic integration.

Compatible with BESS A-KOOL 115, 215, and LI-KOOL 233.

WECO offers a free first COMMISSIONING service (system start-up after installation).

Main Features

• Maximum Battery Charge/Discharge Power: 120/120 kW;
• Number of Battery Input Channels: 4;
• Battery Voltage Min/Max: 680–1000 V;
• AC Side Nominal Power: 120 kW;
• AC Side Nominal Current: 172 A;
• AC Circuit Breakers and Interrupting Capacity: 250 A / 70 kA;
• AC Nominal Voltage: 400 V ± 15%;
• Nominal Frequency: 50 Hz / 60 Hz;
• Maximum Efficiency: 97%;
• Cooling Type: Forced Air;
• Protection Class: Class I;
• Communication and Protocol: RS485, CAN, Wi-Fi; Modbus TCP/IP, SunSpec;
• Input Protection: IP55;
• Operating Temperature: -20 °C ~ +55 °C (derating above 45 °C);
• Weight and Dimensions: 570 kg; 1161 × 1100 × 2366 mm.
