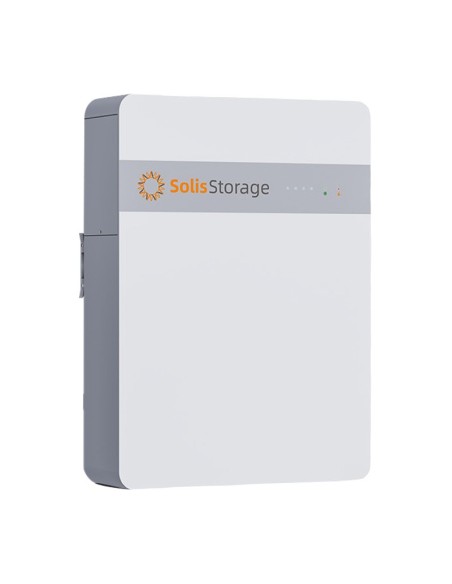

Solis IntelliHome 5kWh LV Lithium Battery

High-performance storage system with LiFePO₄ batteries, up to 100% discharge (DoD) and over 6,000 life cycles. Thanks to IP66 protection, integrated heating, and operation from -20°C to +55°C, it guarantees reliability in any environment. Installation is quick and easy, with expandable capacity up to 128 kWh and automatic switching to backup mode in less than 10 ms for continuous power.

Key Features

• Technology: LiFePO₄ (Lithium Iron Phosphate) battery.
• Nominal Capacity: 5 kWh.
• Operating Voltage: 44.8–57.6 V.
• Cell Capacity: 100 Ah.
• Recommended Charge/Discharge Current: 50 A (maximum 100 A).
• Depth of Discharge Rate (DoD): up to 100%.
• Communication: CAN / RS485 with status indicator and SOC.
• Protection Rating: IP66 with integrated overvoltage, overcurrent, and overtemperature protection.
• Dimensions and Weight: 470 × 655 × 175 mm, 47 kg.
• Installation: Floor or wall-mounted, expandable up to 8 units in parallel.

Available in the following versions:

• 5kWh (ideal for small homes or as an emergency backup);
• 10kWh (perfect for medium-sized daily);
• 16kWh (designed for families with high consumption).
