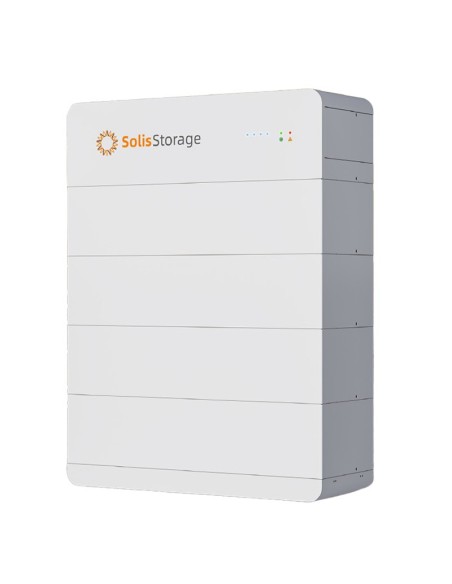

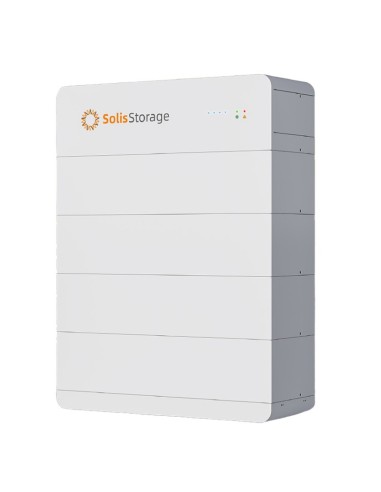

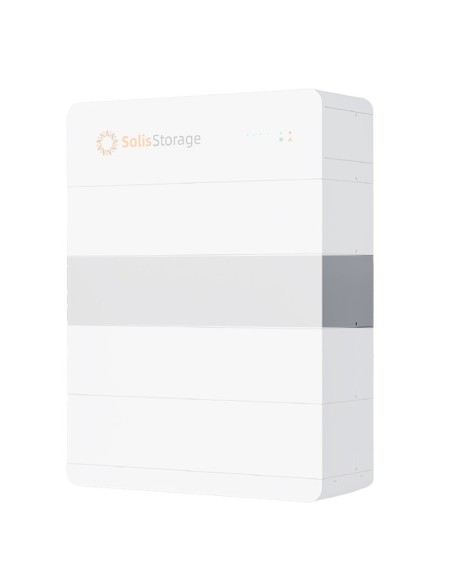

Solis FlexHome 5kWh HV Lithium Battery

The storage system offers high reliability thanks to the use of Grade A LiFePO₄ cells and a multi-level safety architecture, designed to ensure maximum battery protection and a long operational lifespan.

High performance, with up to 100% depth of discharge (DoD), over 6,000 life cycles, and IP66 protection, ensures efficient operation even in harsh environmental conditions, from -20°C to +55°C.

The modular structure allows for quick installation, simplified management, and capacity expansion up to 160 kWh. In addition, the system guarantees power continuity thanks to automatic switching to backup mode in less than 10 ms, supports high loads, and can be integrated with emergency generators and smart energy management functions.

Key Features

• Technology: LiFePO₄ battery (Lithium Iron Phosphate).
• Nominal capacity: 15 kWh (3 modules of 5 kWh).
• Operating voltage: 134.4–172.8 V.
• Cell capacity: 100 Ah.
• Recommended charge/discharge current: 50 A (maximum continuous 50 A).
• Depth of Discharge (DoD): up to 100%.
• Lifespan: over 6,000 charge/discharge cycles (service life up to 10 years).
• Protection: IP66 rating with CAN/RS485 communication and natural cooling.
• Dimensions and weight: 800 × 860 × 285 mm, 170 kg.
• Installation: floor-mounted (default) or wall-mounted, expandable up to 4 systems in parallel (160 kWh total).
