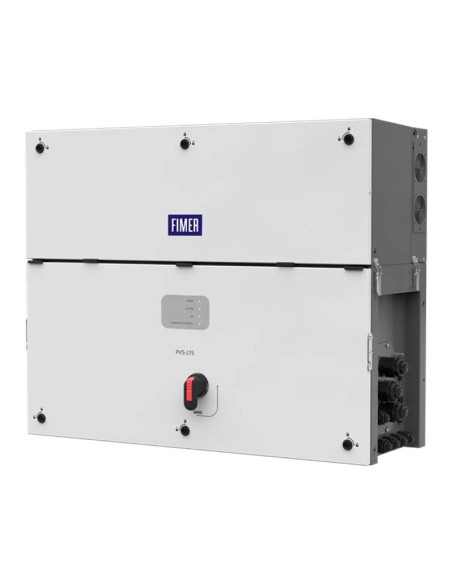

Three-phase string inverter 175kW FIMER PVS TL-SX2-FULL
Three-phase string inverter 175kW FIMER PVS TL-SX2-FULL

Three-phase string inverter 175kW FIMER PVS TL-SX2-FULL

PVS-175-TL-SX2-FULL

The PVS-175-TL is FIMER's innovative three-phase inverter, offering a high-voltage solution ideal for large-scale ground-mounted applications.

Would you like to know the price of this article?
Sign up now (reserved to companies)

Hai bisogno di grandi quantità?

Richiedi un'offerta dedicata!

Se sei interessato all'acquisto di pallet o container di moduli fotovoltaici o grandi quantità di altri prodotti, compila il form e sarai ricontattato da un nostro esperto commerciale per un'offerta dedicata.

Accedi per richiedere un'offerta

You might also like



The PVS-175-TL is FIMER's innovative three-phase inverter, offering a high-voltage solution ideal for large-scale ground-mounted applications.

  • 175.0kW three-phase inverter;
  • AC voltage 800V;
  • IP65 protection rating;
  • 12 MPPTs with 24 quick-connect PV channels;
  • String current monitoring for each MPPT (12ch.);
  • RS485 ports, RJ45 Ethernet;
  • DC and AC disconnect switch;
  • Type 2 DC and AC arresters monitored;
  • Datalogger and WiFi;
  • AC cable gland M40;
  • Warranty Assure 5 years (extendable to 10 years).

N.B. INSTALLATION KIT REQUIRED FOR FIELD INSTALLATION, MUST BE PURCHASED SEPARATELY (AT LEAST ONE PER SYSTEM).

Measures
867 x 1086 x 458 mm
MPPT
12
Inverter type
String
Single-phase/Three-phase
Three-phase
Inverter power
175kW
Inverter series
PVS-TL-SX2-FULL
