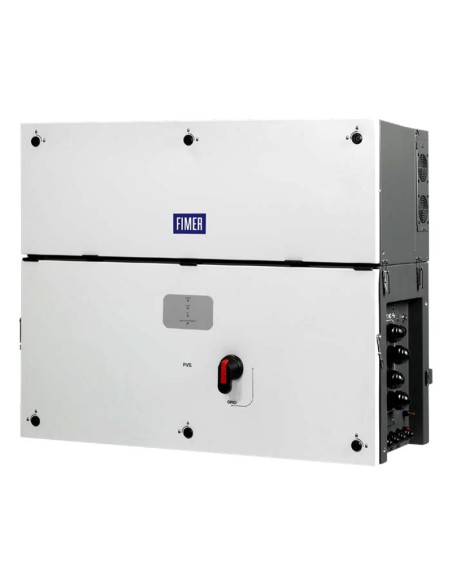

Three-phase string inverter 120kW FIMER PVS TL-B2-SX2-FULL
Three-phase string inverter 120kW FIMER PVS TL-B2-SX2-FULL

Three-phase string inverter 120kW FIMER PVS TL-B2-SX2-FULL

PVS-120-TL-B2-SX2-FULL

The PVS-TL is FIMER's new cloud-connected three-phase string solution for the efficient creation of decentralized photovoltaic systems for both ground-mounted and large-scale commercial applications.

Would you like to know the price of this article?
Sign up now (reserved to companies)

Hai bisogno di grandi quantità?

Richiedi un'offerta dedicata!

Se sei interessato all'acquisto di pallet o container di moduli fotovoltaici o grandi quantità di altri prodotti, compila il form e sarai ricontattato da un nostro esperto commerciale per un'offerta dedicata.

Accedi per richiedere un'offerta

You might also like



The PVS-TL is FIMER's new cloud-connected three-phase string solution for the efficient creation of decentralized photovoltaic systems for both ground-mounted and large-scale commercial applications.

  • 120.0kW three-phase inverter;
  • 480V AC voltage;
  • Protection rating: IP66;
  • 6 MPPTs with 24 quick-connect PV channels;
  • Individual string current monitoring (24ch.);
  • RS485 ports, RJ45 Ethernet;
  • DC and AC disconnect switch;
  • Type 2 monitored DC and AC surge arresters;
  • Protection fuses on both poles;
  • Datalogger and WiFi;
  • 4xM40 AC cable gland (4 single-pole cables);
  • Assure 5-year warranty (extendable to 10 years).

N.B. INSTALLATION KIT (3P51000T000A) REQUIRED FOR FIELD INSTALLATION AND MUST BE PURCHASED SEPARATELY (AT LEAST ONE PER SYSTEM).

Measures
869 x 1086 x 419 mm
MPPT
6
Inverter type
String
Single-phase/Three-phase
Three-phase
Inverter power
120kW
Inverter series
PVS-TL-B2-SX2-FULL
