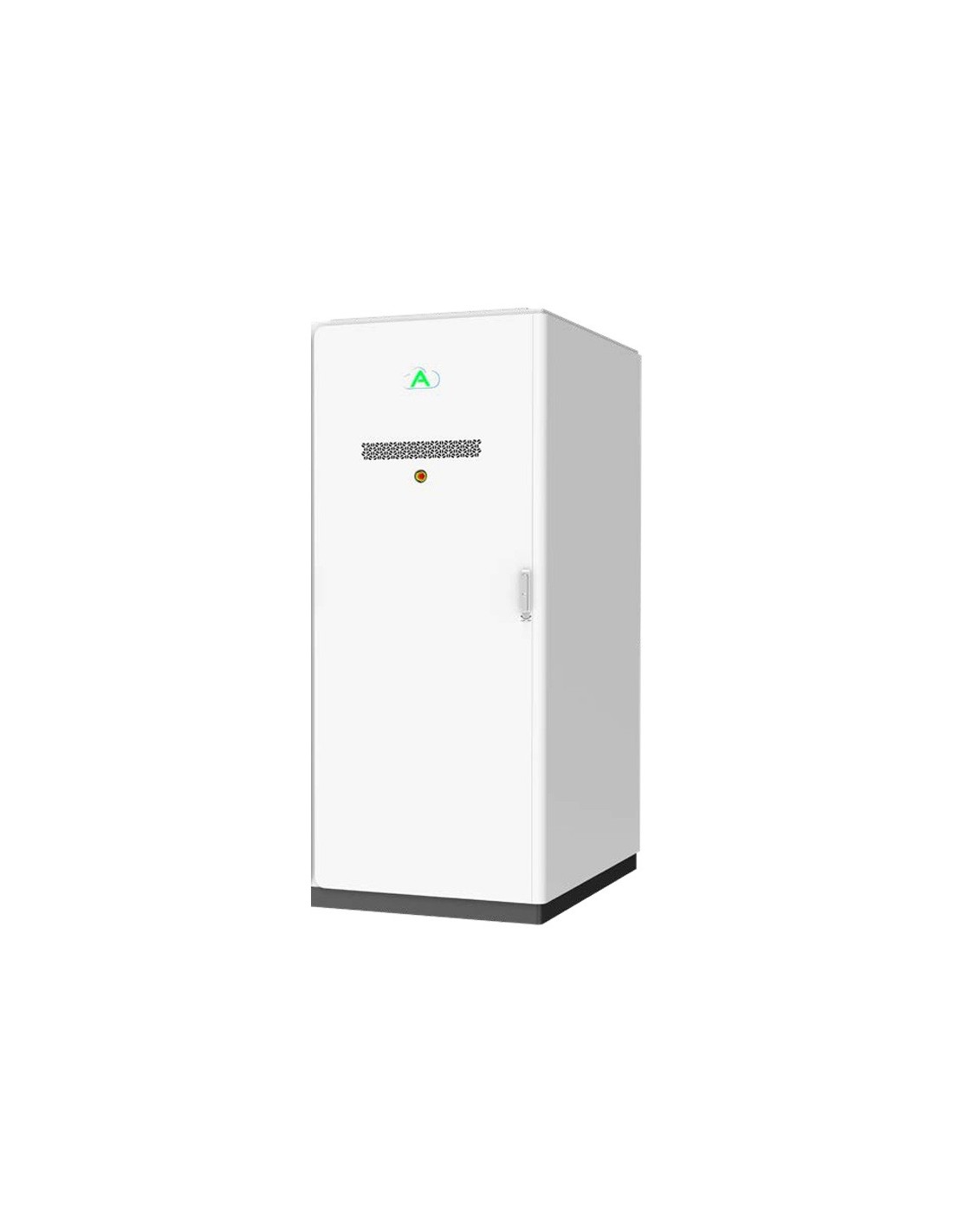

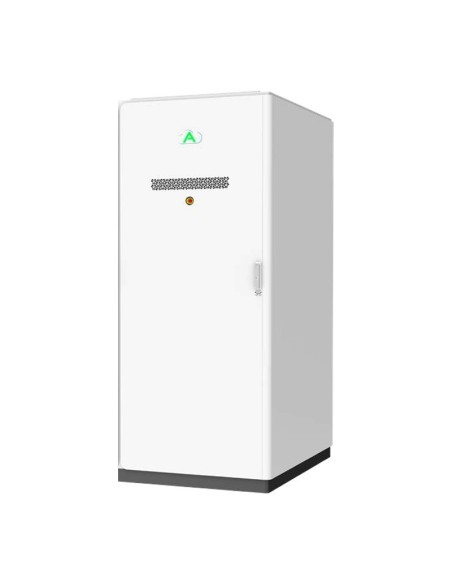

Battery module for outdoor retrofit storage system ZCS Azzurro POWER MAGIC inverter 125kW storage 215kWh
ZPM-215KLA-BC1
The new ZCS Azzurro cabinet is modular in relation to the customer's needs. The system is ideal for industrial installations of great power.
Battery module for outdoor retrofit storage system ZCS Azzurro POWER MAGIC inverter 125kW storage 215kWh
Power Magic is the new outdoor retrofit storage system, ideal for large power industrial installations. The system, modular in relation to the customer's needs, is available with power from 125kW to 750kW and capacity from 215kWh to 6MWh.
It is equipped with a fire protection system with integrated sensors and monitoring as well as liquid cooling. Installation is simple, thanks to the Plug & Play mode.
Main features
- Total battery capacity: 258kWh;
- Integrated fire safety system;
- Liquid thermoregulation of battery modules;
- Communication Ethernet, Bluetooth;
- Expandable up to max 3 Battery Cabinets for each SC;
- Outdoor installation on the ground.
- Measures
- 2330 x 1000 x 1350 mm
- Storage capacity
- Lithium iron phosphate
- Accumulation capacity
- 215kWh
