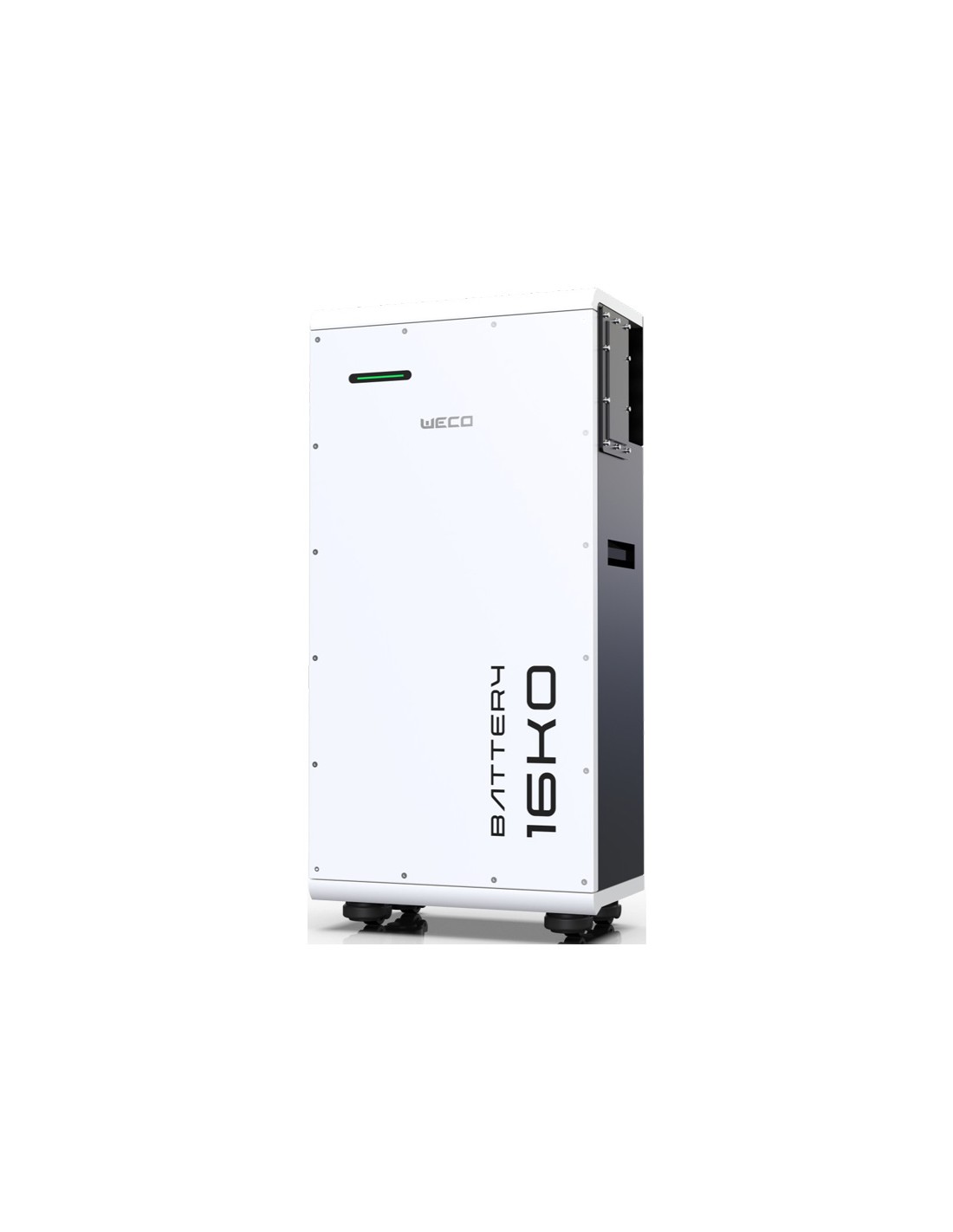

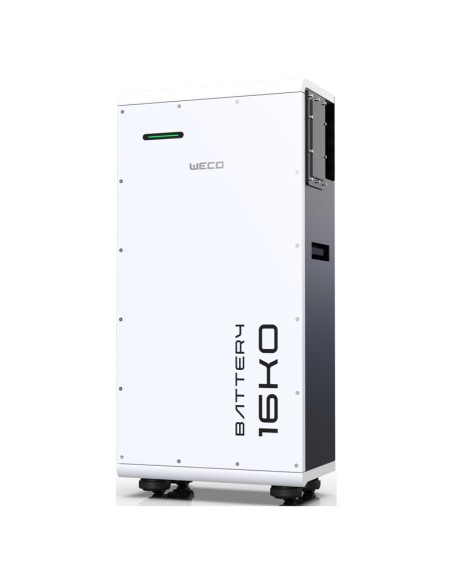

The 16K0 LV battery by Weco is the perfect choice to maximize energy autonomy in homes, thanks to its ideal integration with storage systems and hybrid inverters.

Main Features

• Seismic-proof structure: the battery shows exceptional resilience to seismic activity, ensuring uninterrupted power supply and system reliability during earthquakes;
• Modular power and capacity: 16k0 can support up to 105 modules in parallel for unprecedented capacity;
• Always balanced cluster: automatic balancing control logic;
• Quick installation: easy installation with plug & play automatic configuration;
• Seismic Proof Structure: ensuring uninterrupted power supply and system reliability during earthquakes.

Technical Specifications

• Maximum system capacity: 16.3 kWh;
• Battery system capacity: 16.06 kWh;
• Maximum depth of discharge: up to 98%;
• Module expandability: up to 105 with LV HUB;
• Input protection: IP66;
• Communication interface: RS485, CAN, RS232, Wi-Fi & Bluetooth;
• Dimensions and weight: (WxDxH): 480 × 1000 × 262 mm - 84 kg;
• Max. charge/discharge current: 320 A DC;
• Expected lifecycle: >8000 cycles @25°C 80% DoD.
