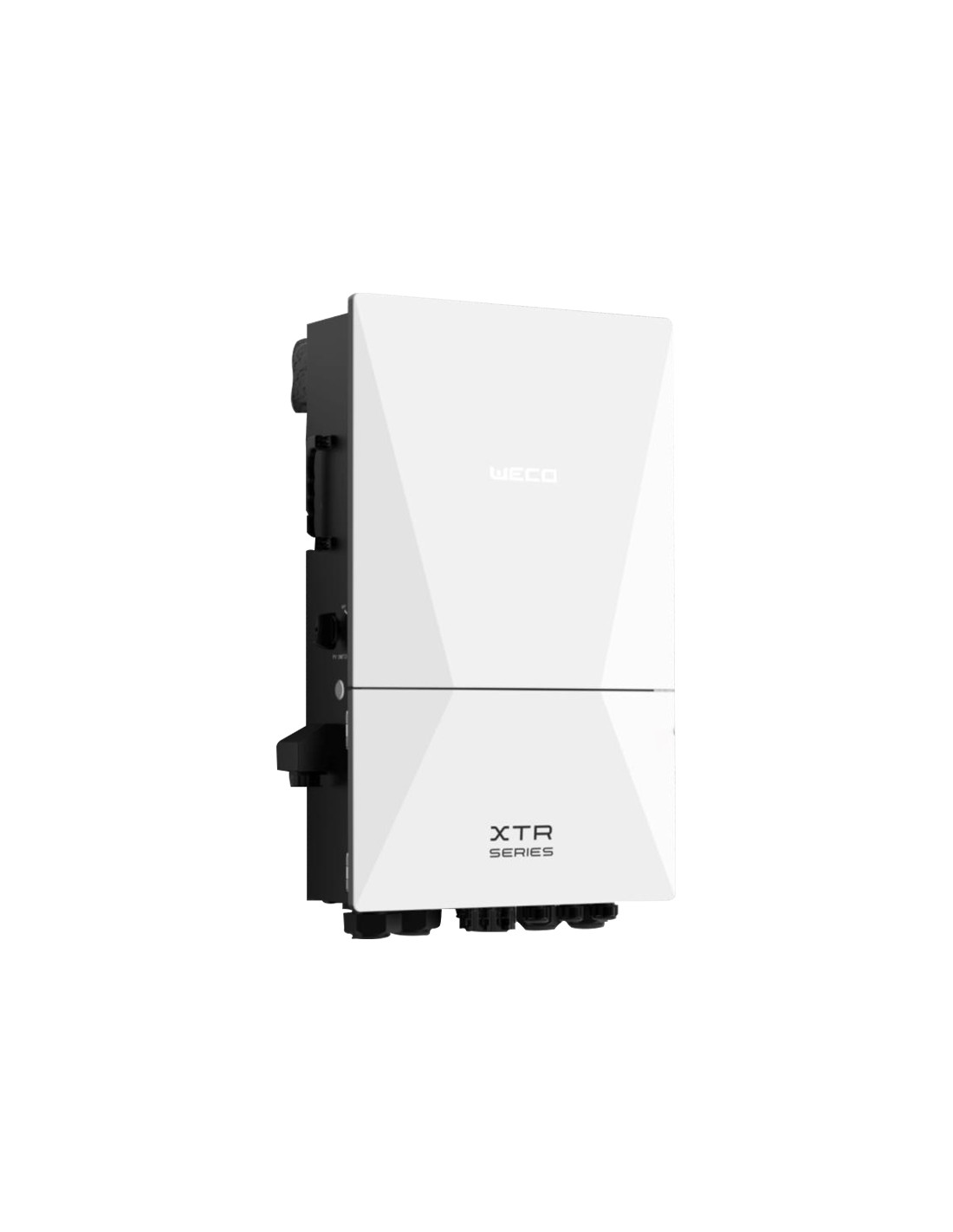

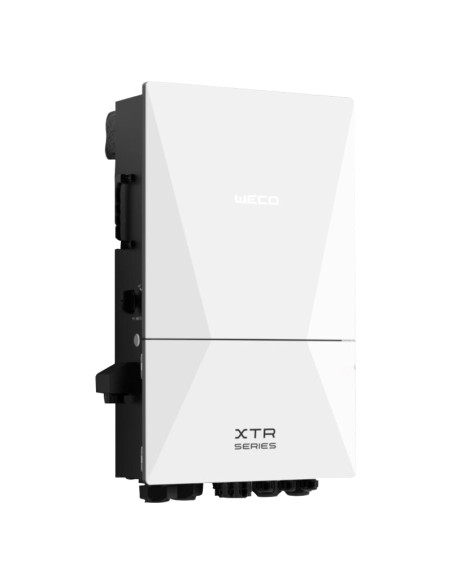

The new three-phase inverter XTR-3 with 15kW is more than just an inverter; it is the energy hub for your living space. Compact and intelligent, it manages energy efficiently, enhancing your daily life with clean and reliable power.

Main Features

• Power: Integrated system with 15kW power, 3 independent MPPTs, and PV current up to 20 A, ideal for managing large loads and complex systems.
• Reliability: Battery charge current up to 380 A and full backup with 150% overload, ensuring consistent energy and operational continuity even under critical conditions.
• Simplicity: Perfect integration with full-power generators and intelligent energy ecosystem management, designed to provide control and autonomy for both home and business.

Technical Specifications

• Rated Power: 15 kW (max apparent power 16,5 kVA);
• Max PV Input: 40 kW, voltage up to 1000 V;
• Number of Independent MPPTs: 3 with 1 string per MPPT;
• Battery Voltage: 51.2 V (operating range 40–60 V), compatible with Lithium - Weco batteries;
• Battery Current: 380 A charging / 350 A discharging;
• Three-Phase AC Output: 220/380 V, 50/60 Hz, power factor >0.99 (0.8 leading–0.8 lagging);
• Integrated Protections: DC disconnection, PV reverse polarity, sensitive residual current, anti-islanding, AC overcurrent and short-circuit, AC overvoltage;
• Inverter Topology: Transformerless, with smart cooling and standby consumption;
• Protection Rating: IP65, operating temperature -25°C to +60°C, max altitude 4000 m;
• User Interface: LED + App, RS485/CAN communication with BMS, RS485 with meter, Wi-Fi Logger for portal;
• Integrated Control: Power Control / Zero Export Control included;
• Dimensions & Weight: 450 x 781 x 266 mm, 50 kg, wall-mounted installation.
