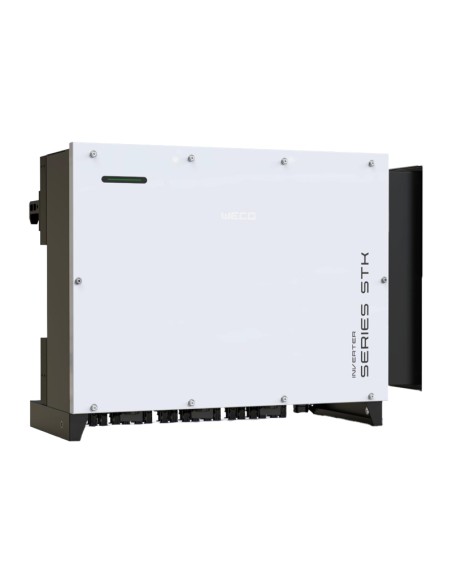

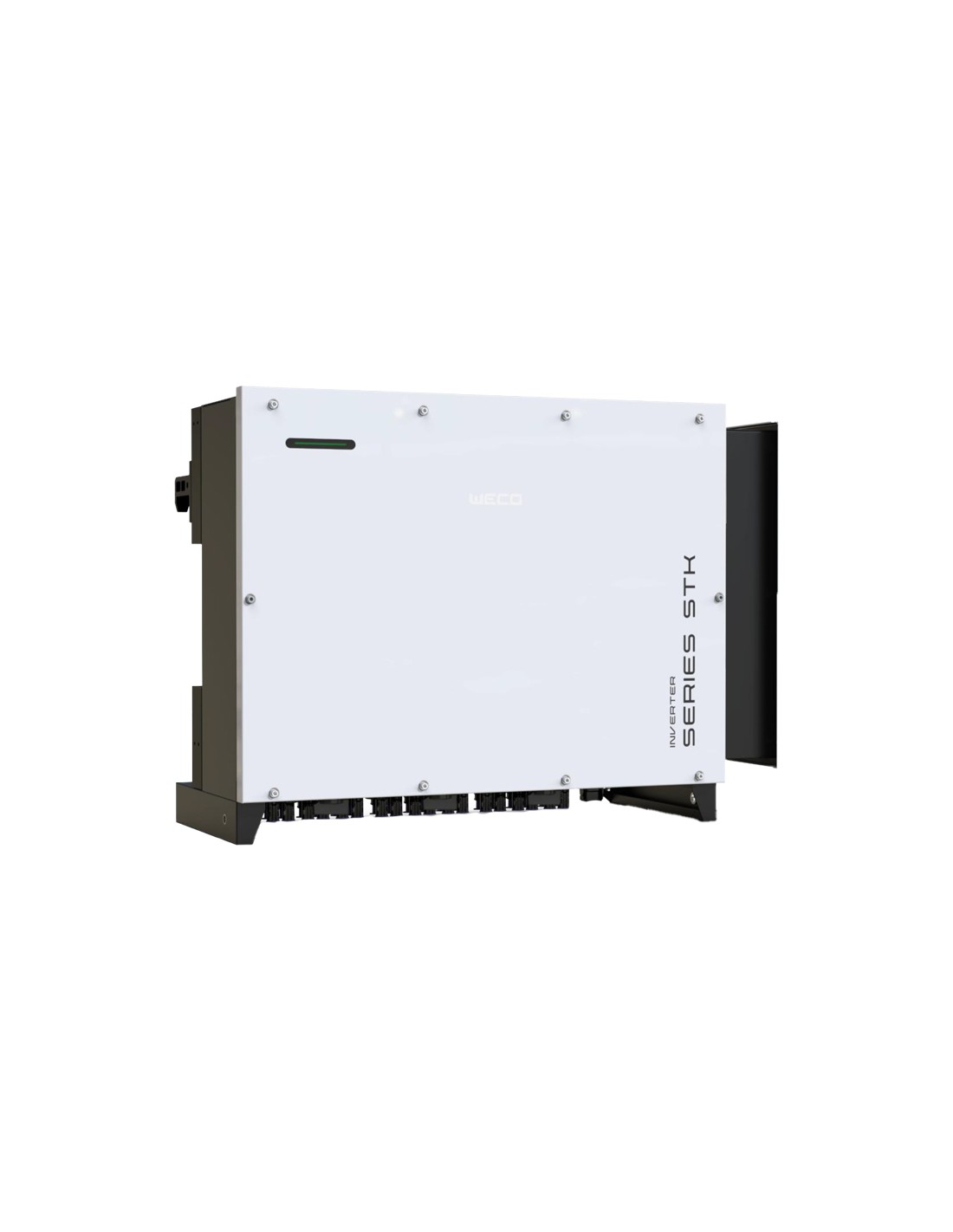

The new Weco series STK three-phase string inverter is designed to ensure optimal integration with the electrical grid and renewable energy generation systems.

Main Features

• IP 66 Certified: Built to withstand dust and heavy rain, IP66 ensures reliable performance in any environment;
• Mobile App: Connect to the WeCo mobile app, enabling real-time monitoring of performance and energy consumption;
• WiFi / Bluetooth: Effortless wireless communication and remote monitoring, enhancing the convenience and flexibility of operation. It comes with a full 5-year warranty, ensuring lasting performance and reliability for maximum peace of mind;
• Warranty: Comes with a full 5-year warranty, ensuring lasting performance and reliability for maximum peace of mind.

Technical Specifications

• Nominal AC active power: 100,000W;
• Max. Efficiency: 98.5%;
• Maximum input voltage: 1100V;
• Maximum input current: 5*32A/3*40A;
• Number of MPPT: 8;
• Maximum number of PV strings: 8*2;
• MPPT operating voltage range: 200V-1000V;
• IP Protection: IP66 (dustproof and waterproof);
• Cooling type: Forced ventilation;
• Warranty: 5 years;
• Dimensions and weight: 936mm*678mm*365mm - 91.5kg.
