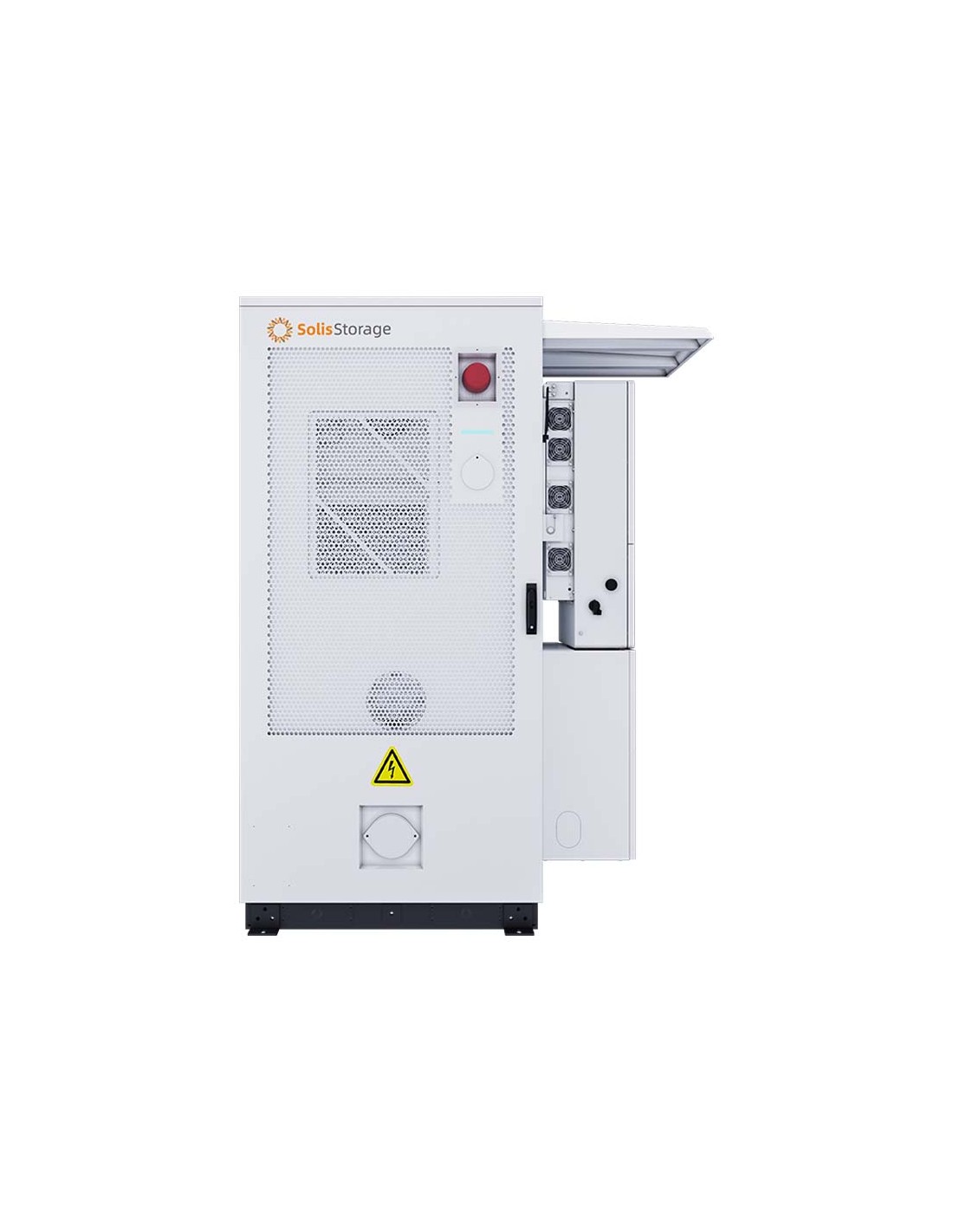

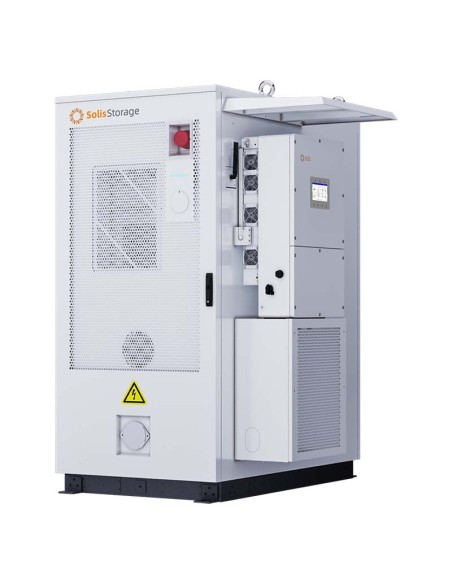

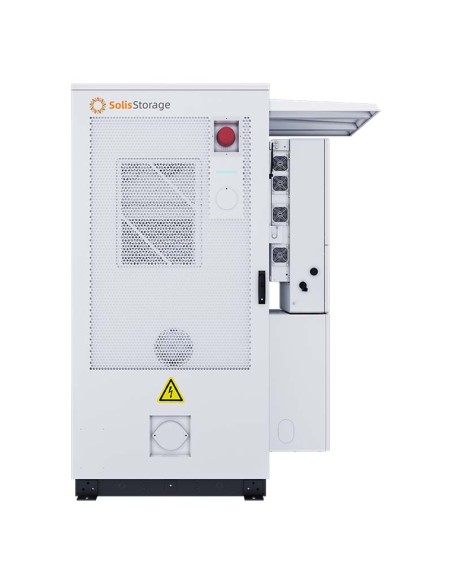

SolisStorage System C&I EverCore 50kW inverter 100kWh storage C5 protection system Solis
EverCore 100kWh system Standard version + C5 environmental Protection. Includes the S6-EH3P50k-H(21A)-NV inverter.
The C&I SolisStorage energy storage system delivers exceptional performance and a rapid return on investment thanks to advanced engineering. It integrates Level 1 battery modules and supports up to 2 times the nominal PV input power, compatible with 21 A high-power PV modules for maximum solar energy production. Thanks to the direct connection to the PV, system efficiency increases and costs are reduced.
The system actively improves your energy savings: dynamic reactive power compensation reduces grid costs, while FFR/FCR compatibility and AI-based tariff optimization minimize expenses and generate new revenue.
Main features
True AC/DC Separation
- A fully decoupled AC and DC architecture delivering physical, thermal, electrical, and protective separation;
- Designed to mirror standard PV installation methods, making installation simpler, safer, and instantly familiar for installers.
True Hybrid Flexibility (New & Existing PV)
- The multifunctional hybrid design supports rapid connection to both new and existing PV systems;
- For retrofit projects, existing PV strings can be connected directly to the hybrid inverter’s PV input — even if the original PV inverter fails — avoiding costly replacements.
Multi-Layer Safety Architecture
- Comprehensive safety protection across cell, pack, and system level, with continuous monitoring and multi-stage protection mechanisms.
Industrial-Grade Reliability
- IP65-rated electronics provide enhanced protection against dust and moisture, significantly reducing failure rates compared to traditional IP20 PCS designs.
Ultra-Fast Backup Power
- Backup power switching in ≤10 ms, providing seamless continuity for critical loads as a built-in feature — not an add-on.
Simplified Installation & Low-Maintenance Design
- The AC/DC separation architecture follows conventional PV installation principles for fast, safe deployment;
- An air-cooled thermal management system with high-quality, industry-proven fans ensures stable operation and long service life, enabling up to 10 years of maintenance-free operation.
High Performance & Long-Life Storage
- Supports up to 2× PV oversizing, maximising solar yield;
- Built using top 1 battery cell suppliers to deliver extended cycle life and higher lifetime energy throughput.
Technical features
- Rated energy capacity: 100.5kW;
- Inverter power rating: 50kW;
- Cell type: EVE, LFP 3.2V / 314Ah;
- Cell cycle life: 8000;
- Anti-corrosion class: IP55(Cabinet)+IP66(Inverter).
NOTE: COMMISSIONING IS NOT INCLUDED.
