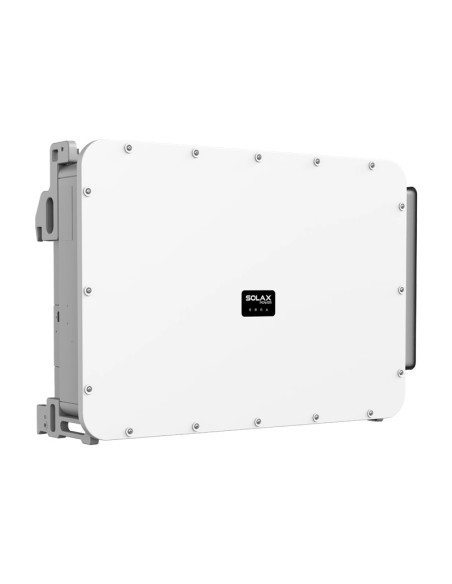

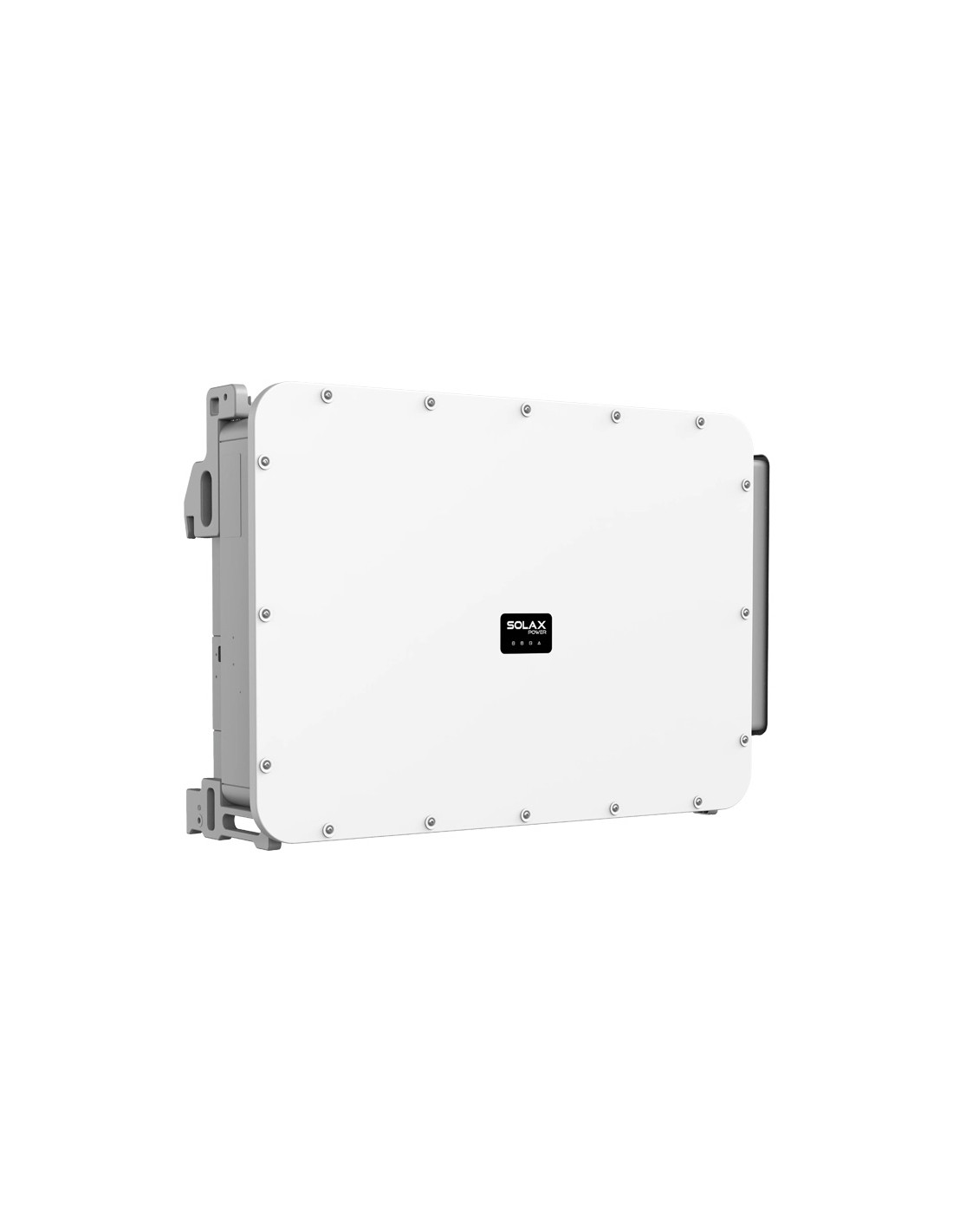

Three-phase string inverter 300kW SOLAX POWER X3 GRAND - X3-GRD-300K-HV
X3-GRD-300K-HV
You might also like
Intelligence for simple and cost-effective maintenance
- Built-in export power control;
- Remote setup and updates;
- 24/7 operation monitoring;
- Power Line Communication (PLC) (optional).
More energy harvesting
- Maximum efficiency up to 99%;
- 460~1500 Vdc MPPT voltage range;
- Up to 6 MPPTs, 5 strings per MPPT tracker;
- Maximum MPPT current 75A.
Safety and reliability
- Protection level IP66 and NEMA4X for the USA;
- AFCI protection (optional);
- AC terminal temperature detection;
- Both AC & DC SPDs (Type II) built-in, Type I+II SPD optional.
- Measures
- 1225 × 825,5 × 369,1 mm
- Tensione di lavoro
- 1080V
- MPPT
- 6
- Tipo inverter
- Stringa
- Single-phase/Three-phase
- Three-phase
- Inverter power
- 300kW
- Inverter series
- X3-GRD
