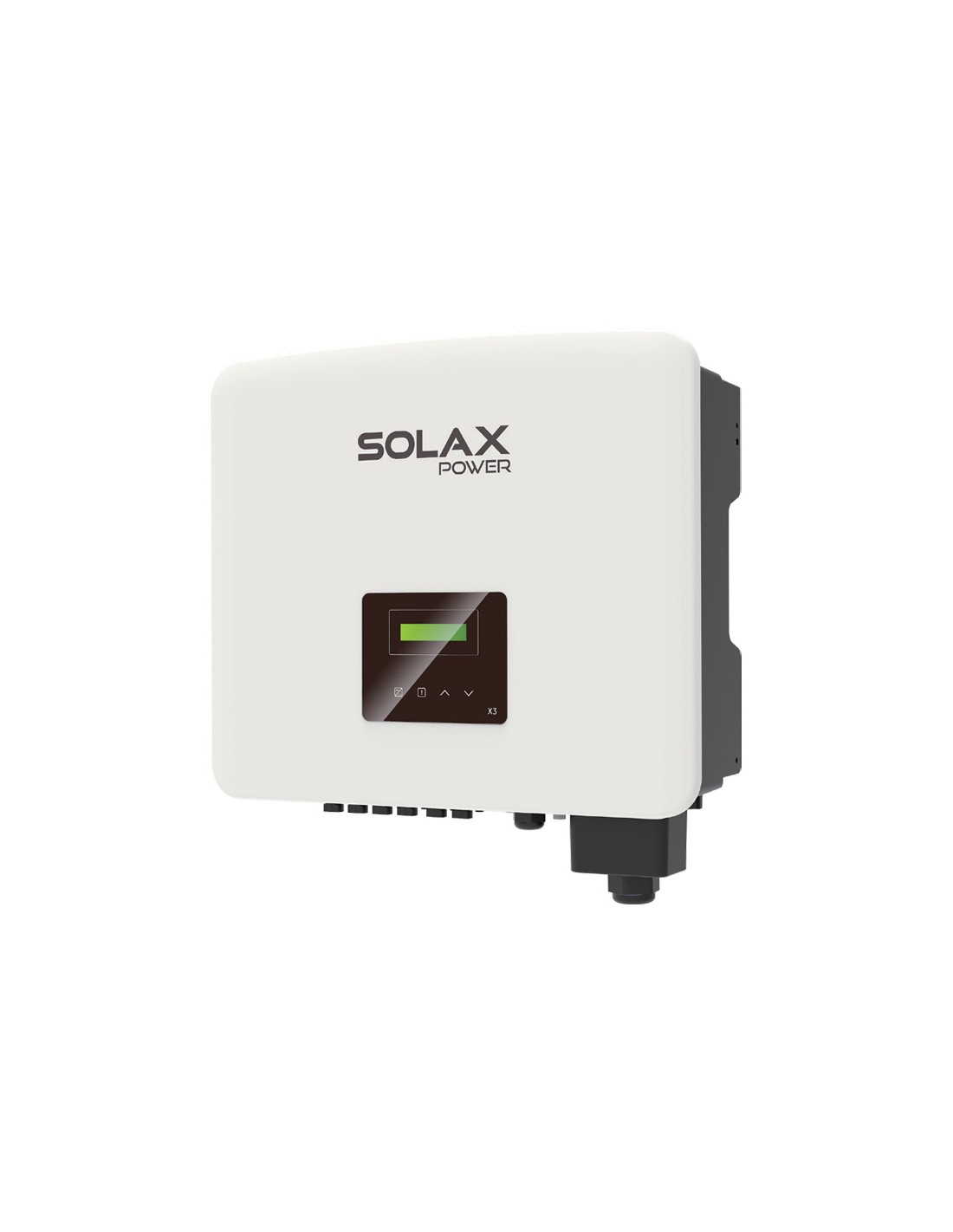

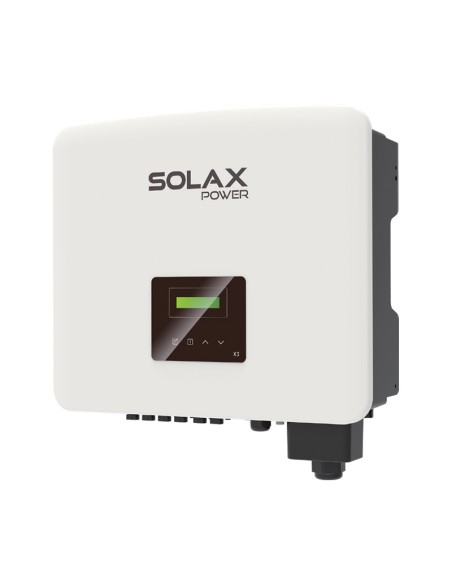

Three-phase string inverter 15kW SOLAX POWER X3 PRO - X3-PRO-15K-G2
X3-PRO-15K-G2
High Efficiency
- Maximum efficiency reaches 98.5%;
- Low startup voltage, wide MPPT voltage range;
- 150% DC oversizing, 110% AC overloading;
- Integrated global MPP scan for higher yield efficiency;
Safety
- Type II SPD protection on both AC and DC sides;
- Arc fault protection (optional);
- IP66 protection;
Smart
- Built-in export power control;
- Smart load management – heat pump (adapter box required);
- 24/7 monitoring and maintenance (optional);
- Multiple monitoring modes supported, optional: WiFi/LAN/4G;
Economical
- Support for high-power solar panels;
- Maximum DC input current of 32A per MPP tracker;
- Up to 3 MPPTs, 2 strings per MPPT;
- Parallel Master/Slave function supported.
- Measures
- 482 x 417 x 181mm
- Tensione di lavoro
- 650V
- MPPT
- 2
- Tipo inverter
- Stringa
- Single-phase/Three-phase
- Three-phase
- Inverter power
- 15kW
- Inverter series
- X3-PRO
