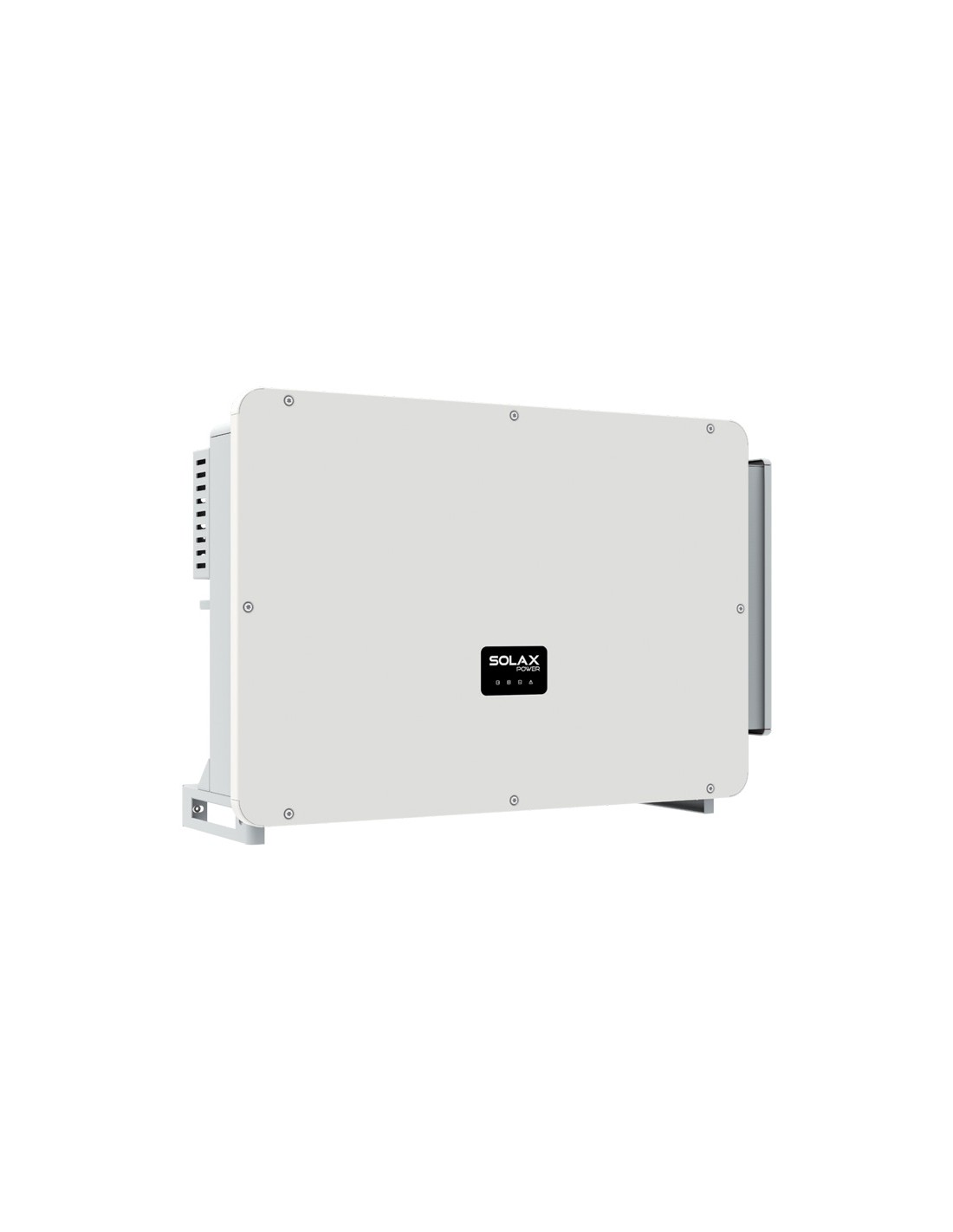

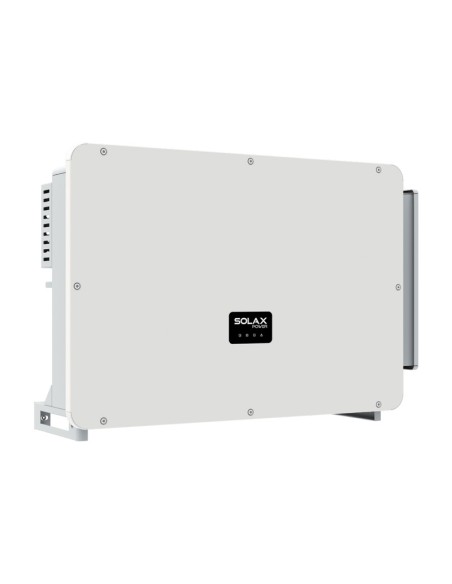

Three-phase string inverter 125kW SOLAX POWER X3 FTH - X3-FTH-125K
X3-FTH-125K
Safety and Reliability
- IP66 protection;
- AFCI protection (optional);
- AC terminal temperature detection;
- SPD (Type II) on both AC and DC sides; SPD Type I+II (optional);
Greater Energy Harvesting
- Maximum efficiency up to 99%;
- MPPT voltage range from 180 to 1000 Vdc;
- Up to 12 MPPTs, 2 strings per MPP tracker;
- 150% PV input oversizing, 110% output overloading;
- Maximum MPPT current of 32A;
Intelligence for Easy and Cost-Effective Maintenance
- Built-in export power control;
- Remote setup and updates;
- 24/7 operational monitoring;
- Smart I-V curve diagnosis supported;
- Nighttime reactive power compensation;
Additional Features
- Aluminum AC cable connection available;
- Power line communication (PLC) (optional);
- Fuse-free design with intelligent string current monitoring;
- Smart air cooling for extended fan lifespan.
- Measures
- 985 x 660 x 327.5mm
- Tensione di lavoro
- 580V
- MPPT
- 12
- Tipo inverter
- Stringa
- Single-phase/Three-phase
- Three-phase
- Inverter power
- 125kW
- Inverter series
- X3-FTH
