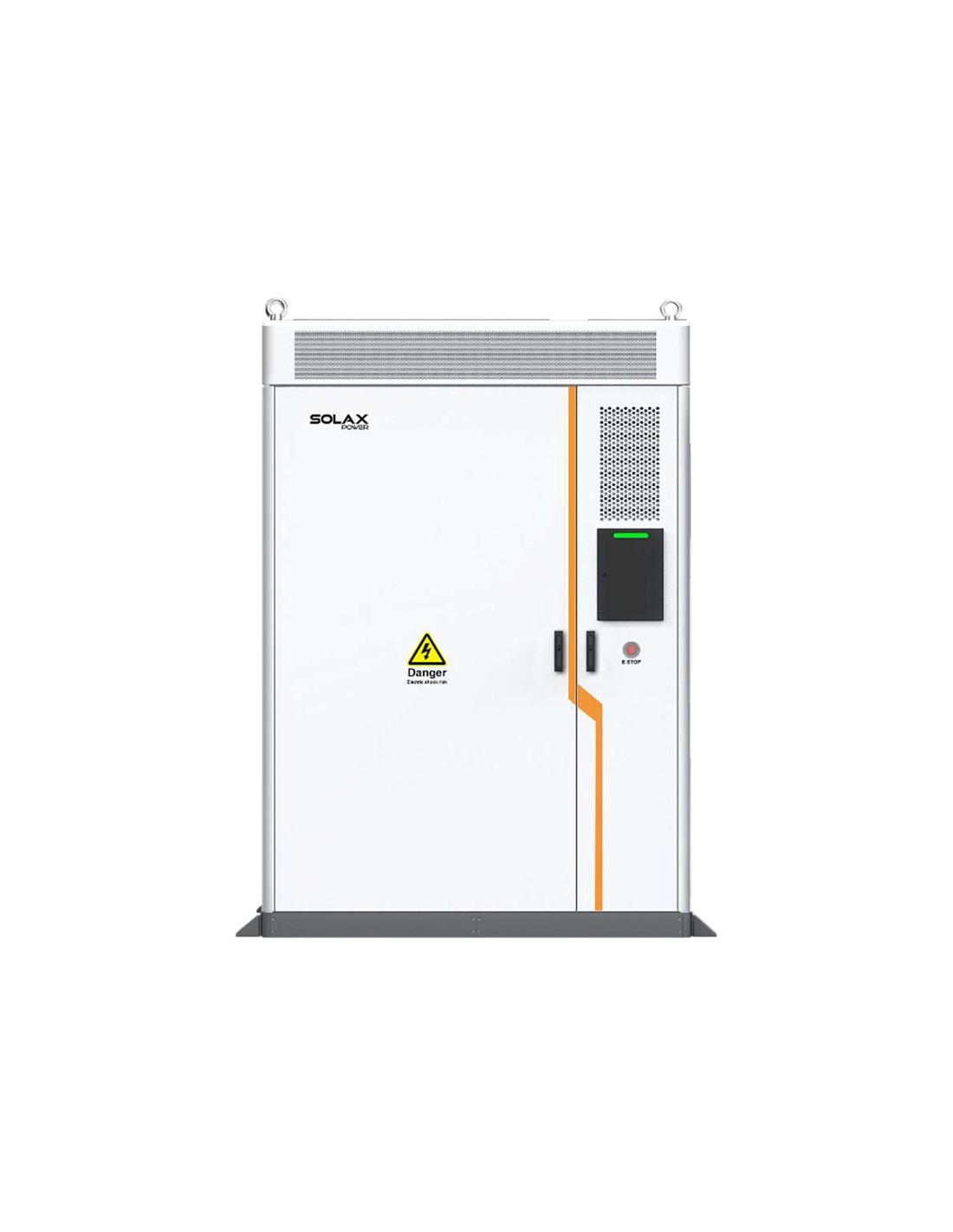

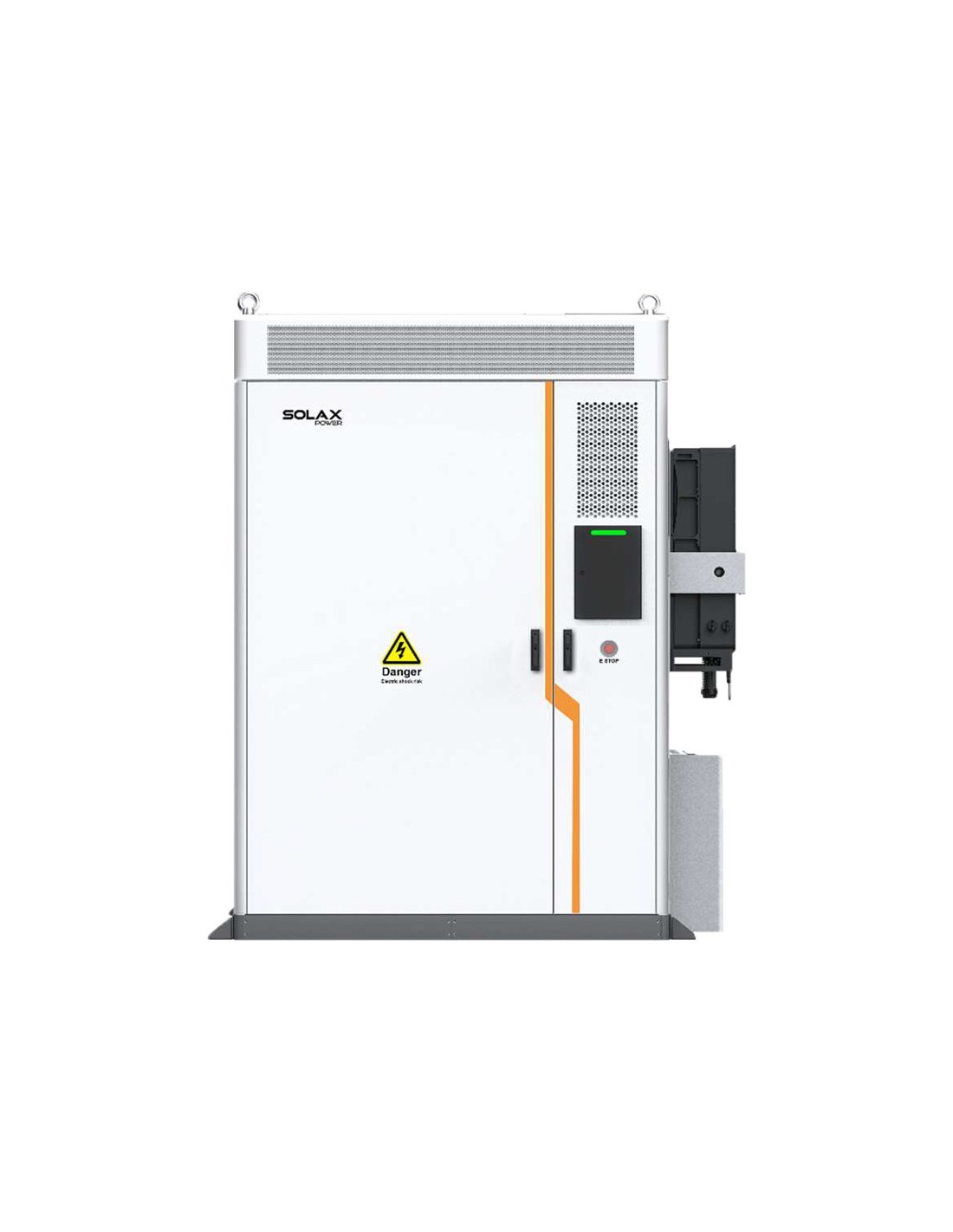

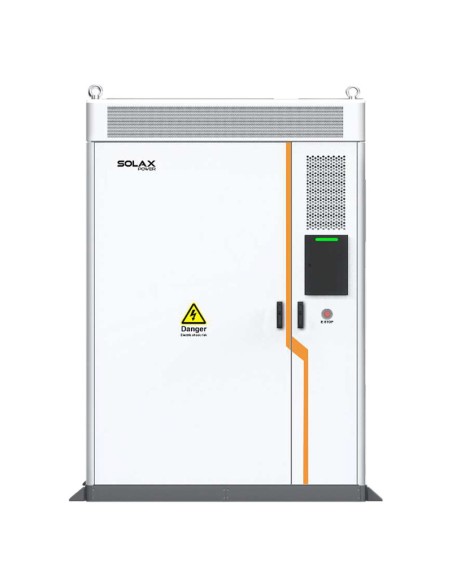

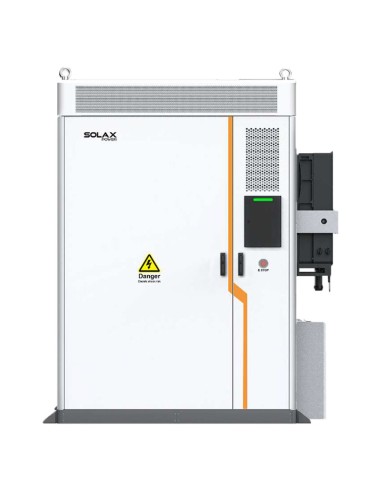

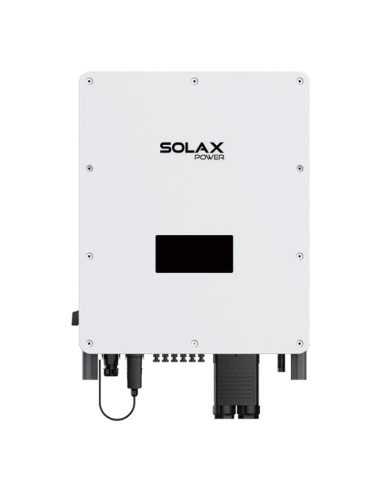

Storage system C&I Aelio inverter 50kW lithium battery 200kWh Solax Power

Main features

High Performance

• Up to 200% PV oversizing;
• Up to 40A DC input current for each MPPT;
• Global MPP scanning for optimal energy harvesting;
• Up to 200 kWh capacity with advanced LFP battery.

Safe

• Four-level fire protection and optional AFCI protection;
• IP66 protection class for inverter, IP55 for cabinet;
• Type II SPD protection for AC and DC, continuously protecting the inverter;
• Intelligent IV curve scanning for early panel diagnosis.

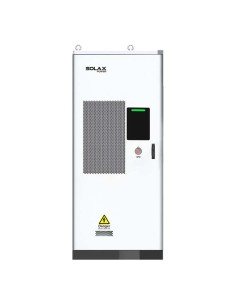

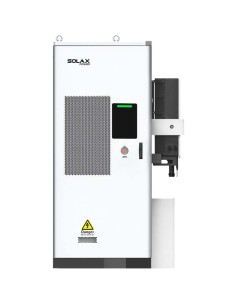

The AELIO C\&I Hybrid series of energy storage cabinets offers advanced energy management, ideal for a wide range of applications. This integrated solution ensures intelligent charge and discharge management, safety, reliability, and ease of use and maintenance. The heart of the AELIO series is innovation, supported by high-density, safe and high-performance LFP batteries. Available in 100 kWh and 200 kWh capacity models, these cabinets ensure stable operations, with pre-set charge and discharge cycles. With 280Ah cells, the AELIO series optimizes initial costs and maximizes business value.

The integrated Energy Management System (EMS) increases efficiency and control, enabling real-time monitoring of batteries, PCS and fire safety systems. With the ability to store data for one year, the advanced EMS enables intelligent operations, such as energy price-based scheduling, PV system management, energy storage and EV charging.

Safety is a priority for the AELIO series, which offers multiple protection systems, including overvoltage, overcurrent and overheat protection, flame retardant materials and a 4-level fire protection system, minimizing risks to users. In addition, the series is designed for C&I PV&ESS scenarios, such as peak management, demand response, backup mode and PV-storage integration, further improving energy management. It also supports advanced applications such as virtual power plants (VPP) and frequency regulation, optimizing companies' energy strategy.
