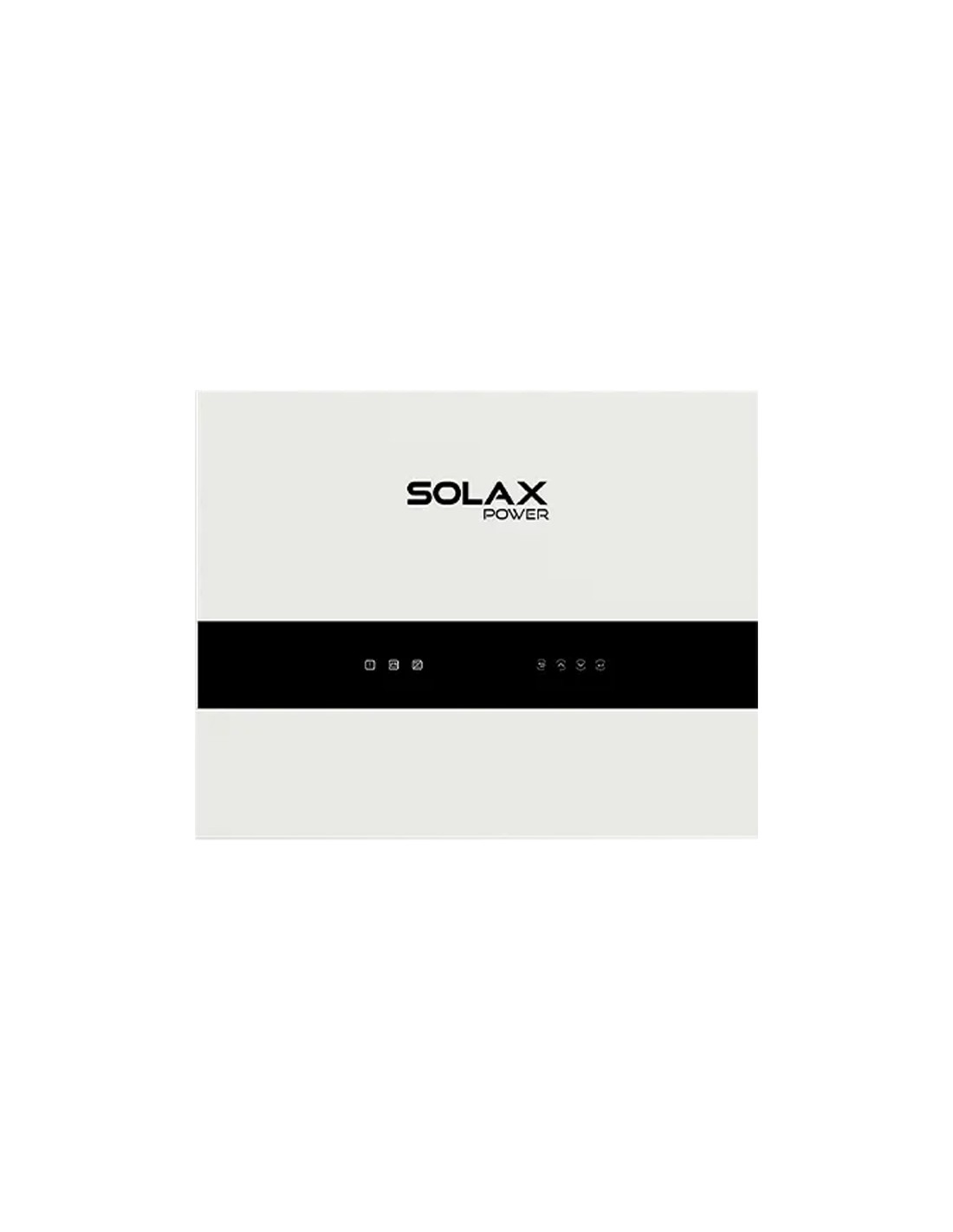

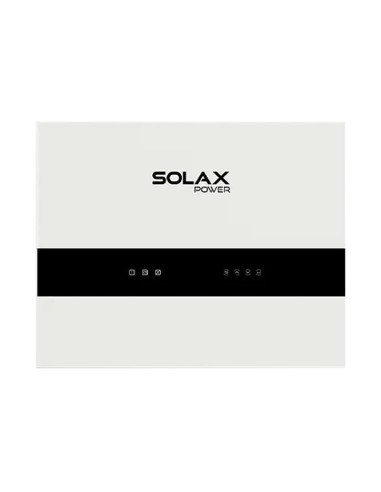

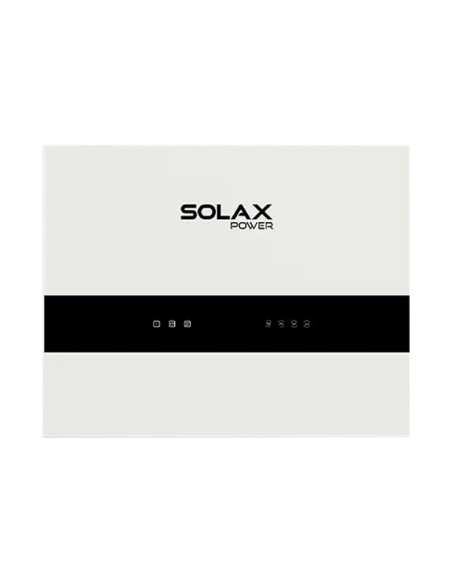

All in One three-phase hybrid inverter IES SOLAX POWER 5kW - X3-IES-5K
X3-IES-5K
X3-IES is a modular energy storage system with 5-15kW three-phase hybrid inverter, BMS and 5-20kWh battery modules, ideal for residences and small businesses, ensuring safety, performance and energy savings.
Quick Installation 0.5 hours
- Modular Design;
- Plug & Play;
- Wireless meter (optional).
Economic Savings
- 7x24 Hourly Tariff (ToU);
- 3 Phase Unbalanced Output.
High Yield and Full Utilization
- Maximum PV oversizing of 200%;
- Maximum PV input of 200%;
- Maximum DC input of 20A for MPPT;
- Low start-up voltage.
High Reliability
- Optional AFCI;
- Optional quick stop;
- Type II SPD on AC and DC side;
- Lithium battery Cobalt-free LiFePO4.
Robust Backup
- Switching time less than 10ms;
- 200% EPS overload for 10 seconds.
Artificial Intelligence-based Energy Management
- Intelligent Scheduling;
- Intelligent load management;
- Intelligent scenarios.
- Measures
- 717 × 405 × 209.5 mm
- Tensione di lavoro
- 600V
- MPPT
- 2
- Tipo inverter
- Ibrido
- Single-phase/Three-phase
- Three-phase
- Inverter power
- 5kW
- Inverter series
- X3-IES
