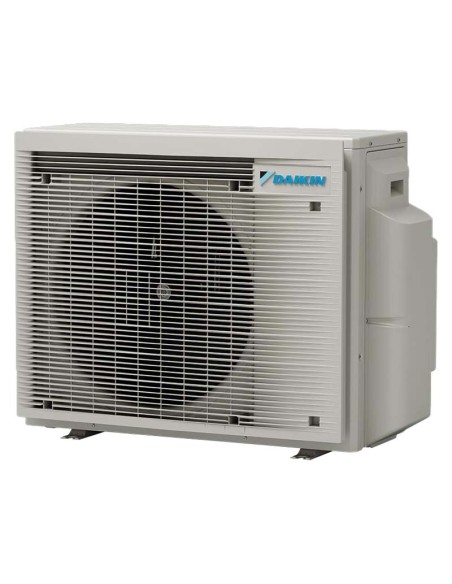

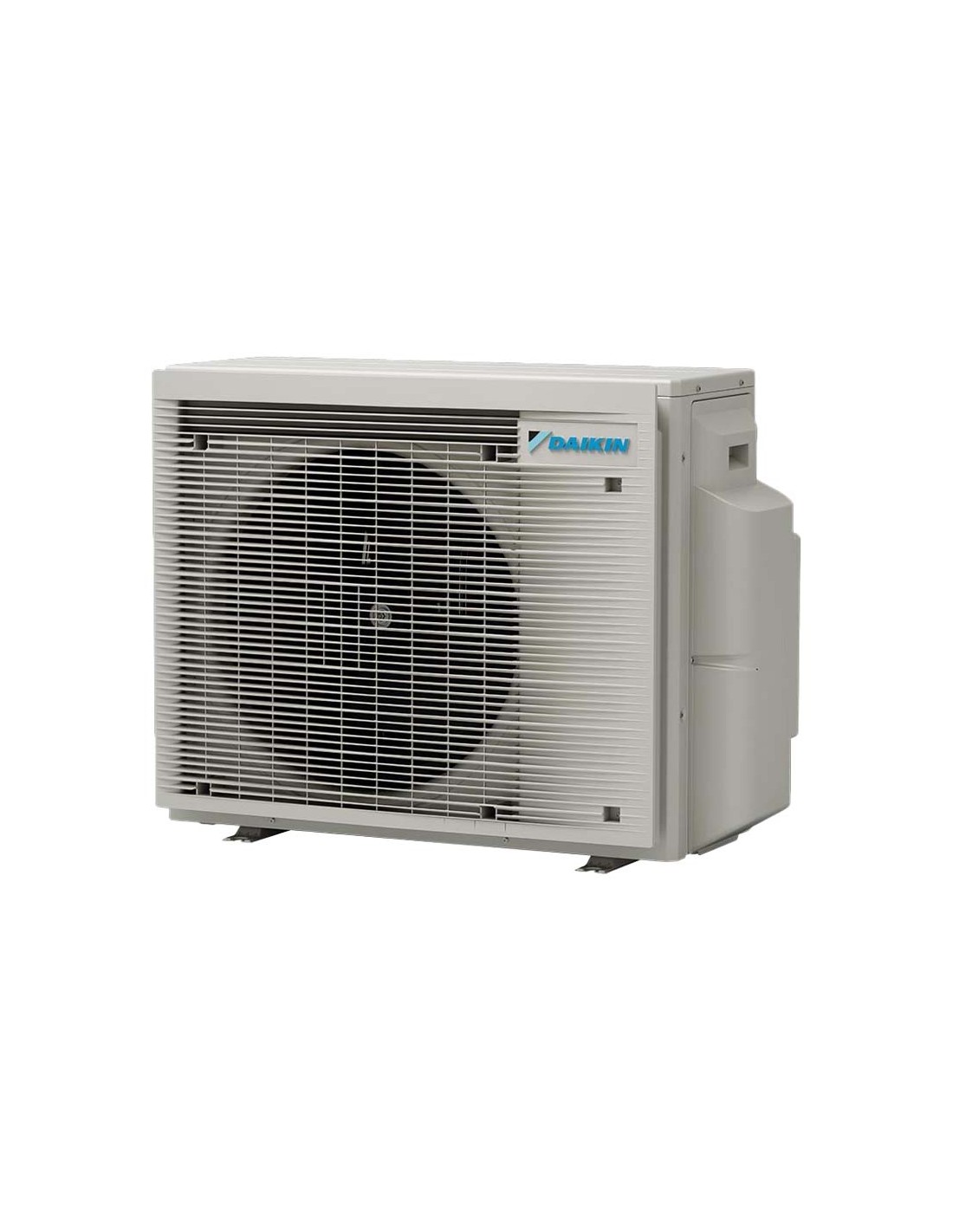

Daikin 4MXM80A8 - Stylish Series

The new range of air conditioners offers excellent performance even in extreme conditions, with an operating range from -20°C to +50°C.

The external unit features a redesigned look and seasonal efficiency values up to A+++ in cooling and A++ in heating, thanks to advanced technologies and integrated intelligence.

You can connect up to 4 internal units to a single external unit, with the advantage that each internal unit is controlled separately. Moreover, the use of R-32 refrigerant significantly reduces environmental impact and energy consumption, while the Swing compressor ensures silent operation and high efficiency.

Various options for internal units are available, including wall-mounted, recessed, or ductable units.

• Model: 4MXM80A(8/9);
• Sound Power: 61 dBA in cooling, 64 dBA in heating;
• Sound Pressure: 40 dBA in cooling, 46 dBA in heating;
• Operating Range: Cooling from -10°C to +50°C, Heating from -20°C to +18°C;
• Refrigerant: R32;
• Refrigerant Charge: 1.80 kg;
• GWP: 675;
• Piping Connections: UE - UI length 30 m, Total piping length 30 m, Height difference 15 m;
• Additional Refrigerant Charge: 0.02 kg/m for piping over 30 m;
• Power Supply: 1 ~ 50 / 220-240 V;
• Current - 50Hz: 20 A;
• External Unit Dimensions: 734 x 958 x 384 mm;
• Weight: 70 kg.
