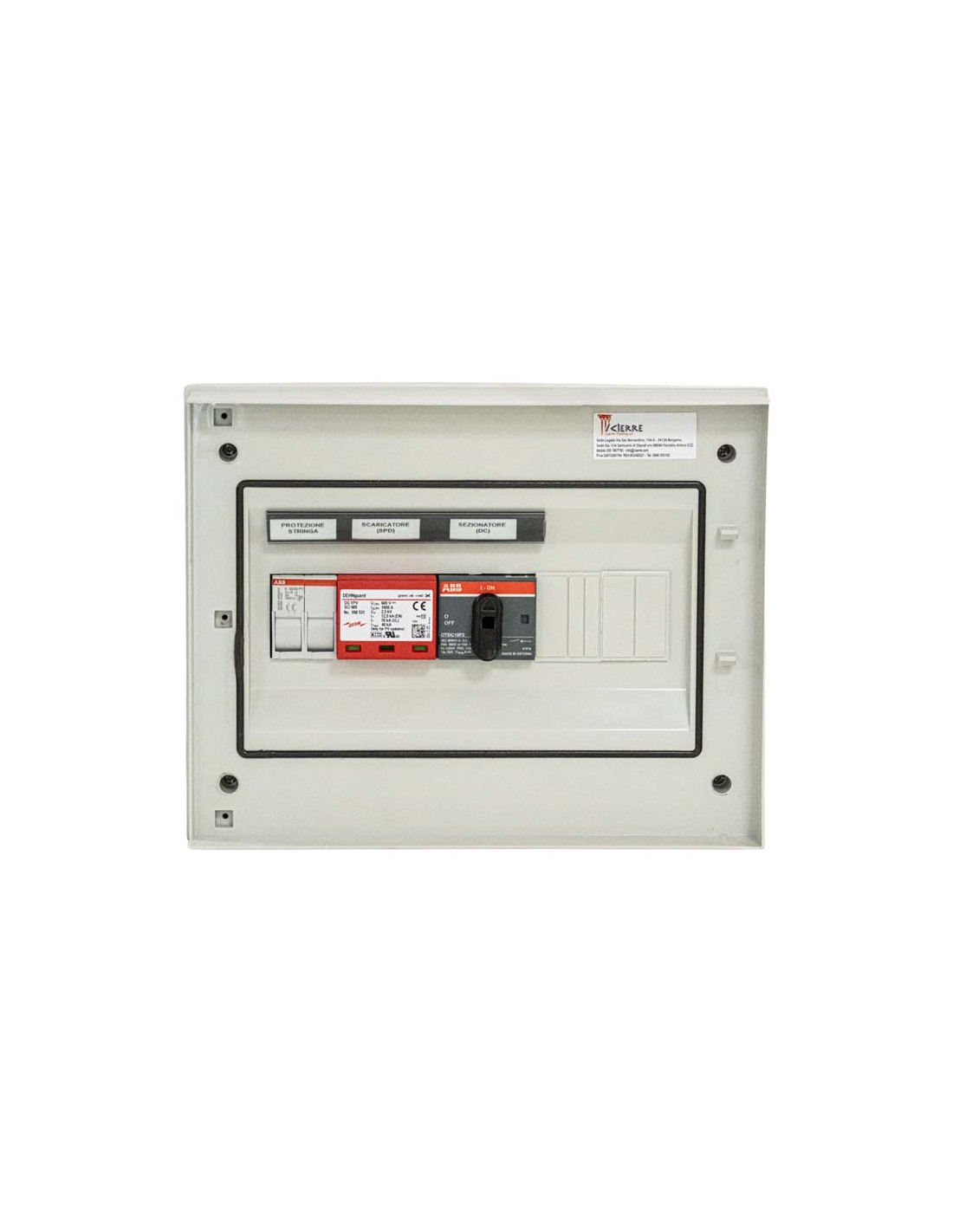

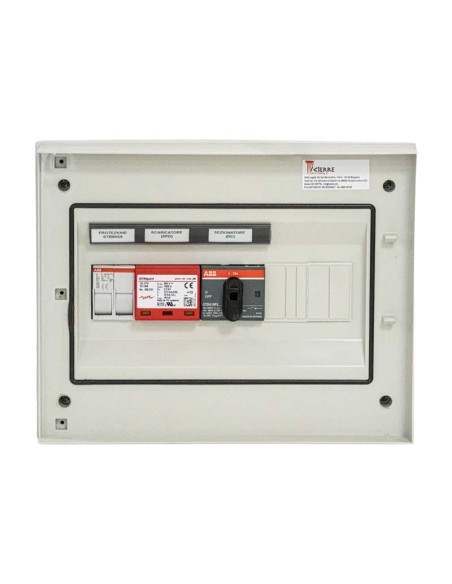

DC panel 3 parallel strings 3IN-2OUT 1000V 32A Icierre
DC panel 3 parallel strings 3IN-2OUT 1000V 32A Icierre

DC panel 3 parallel strings 3IN-2OUT 1000V 32A Icierre

MM033-L

DC panel 3 independent strings 1000V 32A.

Would you like to know the price of this article?
Sign up now (reserved to companies)


Electrical Characteristics

  • ICR-QDC 03/02 1000V 32A SWITCH;
  • 3 IN 2 OUT Strings;
  • 2 1000V Switches;
  • 2 1000V Surge Arresters;
  • 2 Shunt Release Coils (OPTIONAL);
  • Input/Output Terminal Blocks;
  • IP 65 Enclosure 24 Modules;
  • External component identification labels on plastic-coated rails.
Nominal voltage
1000V
AC/DC side
DC side
Electrical panel brands
Icierre
