Daikin ALTHERMA 3 R F 6kW single-phase air-to-water heat pump kit with 180 L DHW production

Daikin ALTHERMA 3 R F 6kW single-phase air-to-water heat pump kit with 180 L DHW production

Main Features

• A stainless steel hot water storage tank of 180 or 230 L combined with a heat pump ensures easy installation;
• All hydraulic components are integrated, so no third-party components are needed;
• The electronic board and hydraulic components are located at the front for easy access;
• Reduced installation space: 600 x 600 mm;
• Integrated auxiliary heater of 6kW;
• The outdoor unit can extract heat from the outside air, even at -25°C.

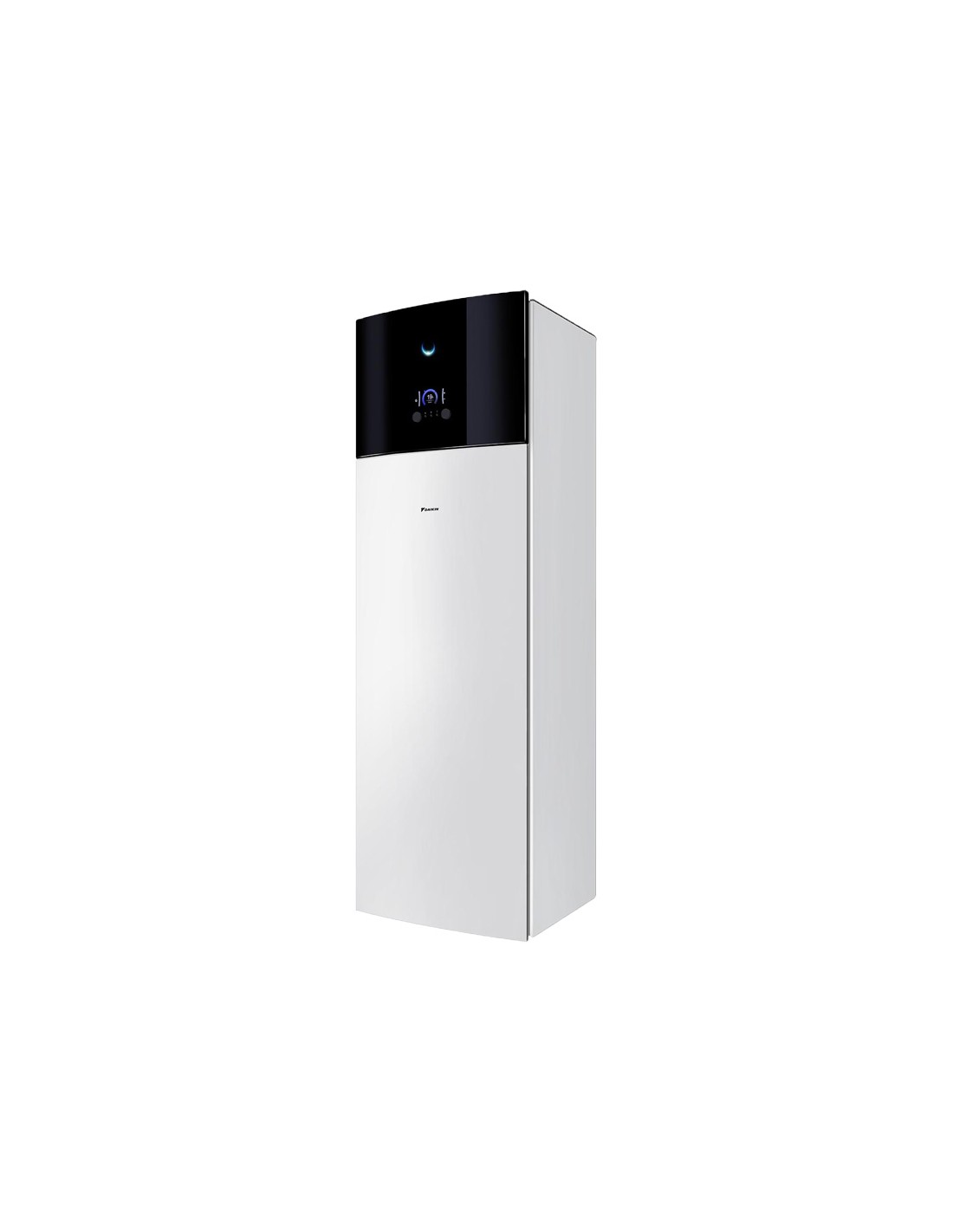

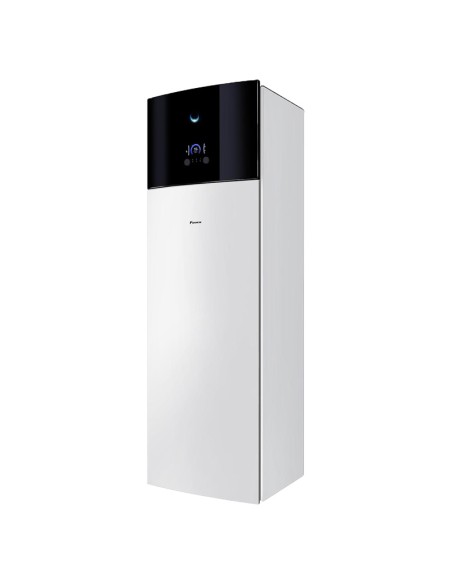

• Indoor unit dimensions: 1650 x 595 x 625 mm - 128 kg;

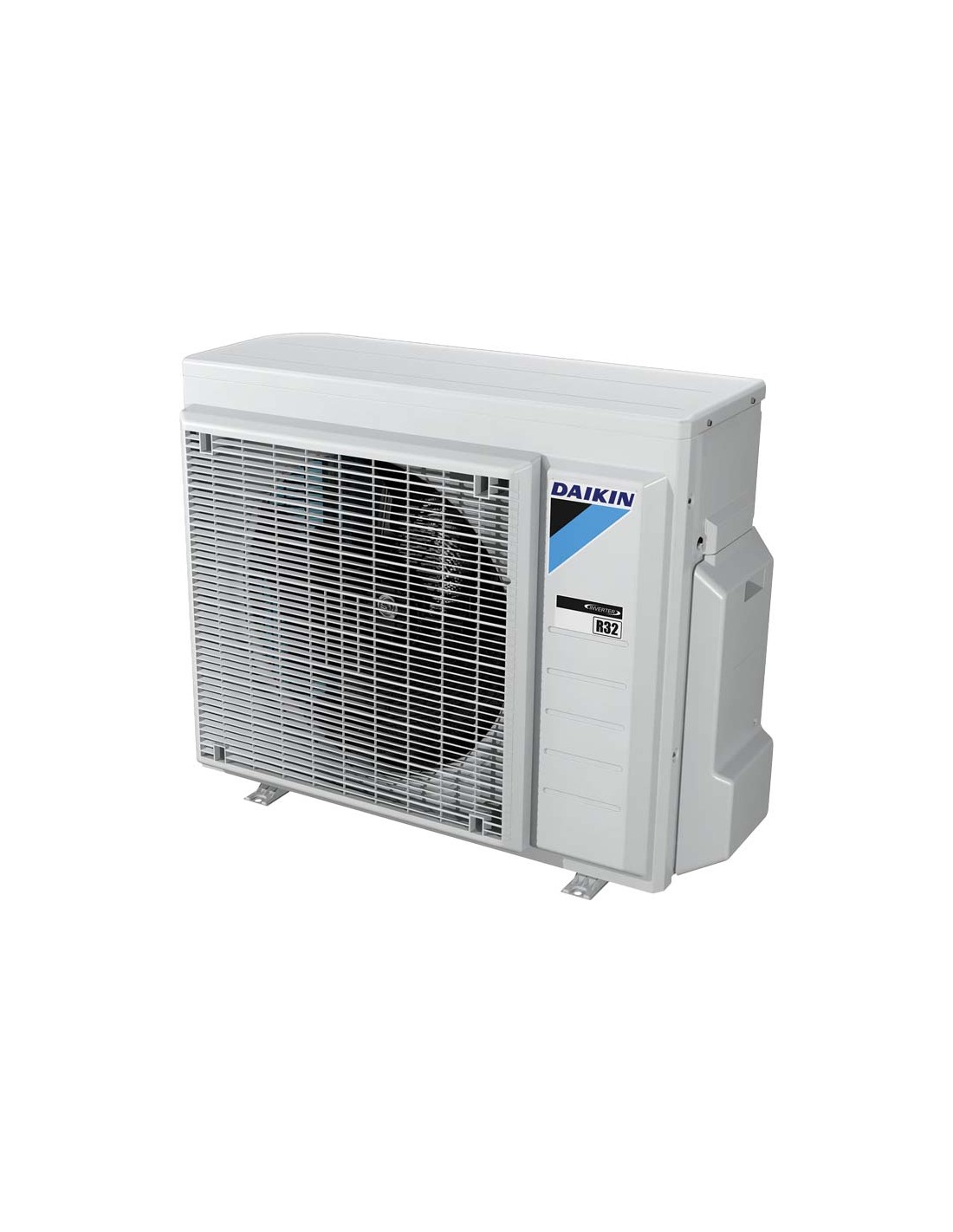

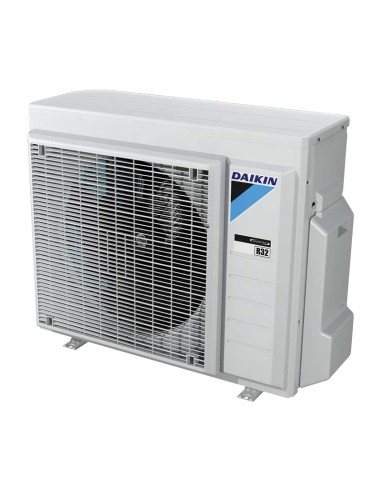

• Outdoor unit dimensions: 740 x 884 x 387 mm - 58.5 kg.

Technical Features:

• Heating capacity: A+7W35 7,74 kW - A-7W35 6,25 kW. (high efficiency at low temperatures);
• Nominal cooling capacity: 5.96 kW;
• Max outlet temperature 65°C;
• Cooling terminal: Water;
• Heating terminal: Water;
• Hot water production: Yes;
• Hot water storage (DHW): Yes;
• Storage capacity (l): 180 L;
• Power supply: Single-phase 230V;
• Control panel, sludge filter, and 10 L expansion tank included;
• Energy class SCOP: A+++;
• Refrigerant gas: R32;
• Remote control and monitoring via app included.

Additional Features

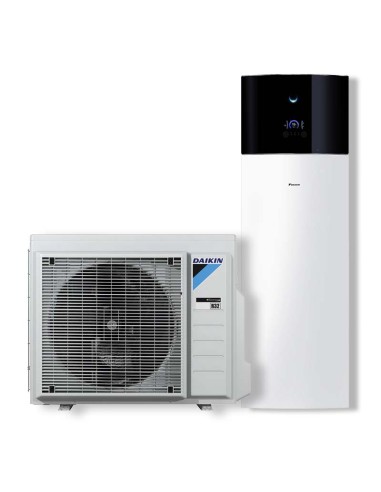

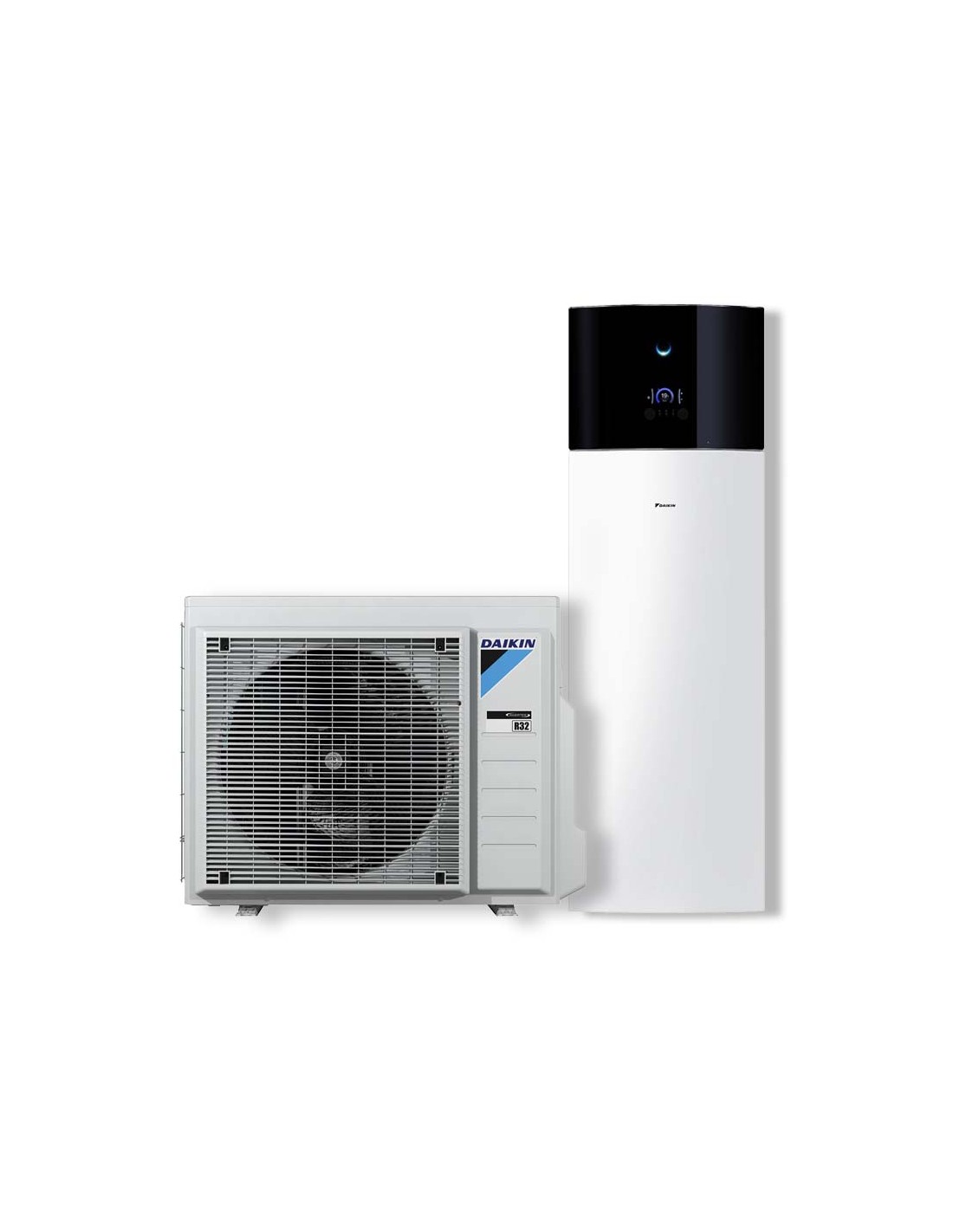

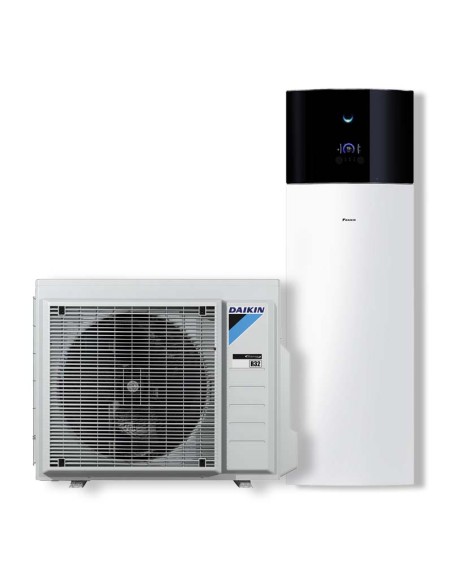

The Daikin air/water heat pump kit consists of a single-phase outdoor unit of 6kW and an indoor air-to-water heat pump unit EHVX04S18D/004 of 6kW with a 180-liter tank. The Daikin Integrated R32 air/water split system offers heating, cooling, and domestic hot water production (DHW) with very high efficiency.
