Daikin ALTHERMA 3 R F 11kW single-phase air-to-water heat pump kit 230L DHW production

Daikin ALTHERMA 3 R F 11kW single-phase air-to-water heat pump kit 230L DHW production

Main Features

• Combination of a 230L stainless steel domestic hot water tank and a heat pump for easy installation;
• Complete hydraulic equipment, no third-party components required;
• Electronic circuit board and hydraulic components located at the front for easy access;
• Small installation footprint: 595 x 634 mm;
• Integrated backup heater available in two versions, 6 or 9 kW;
• Heat pump operation down to -25°C;

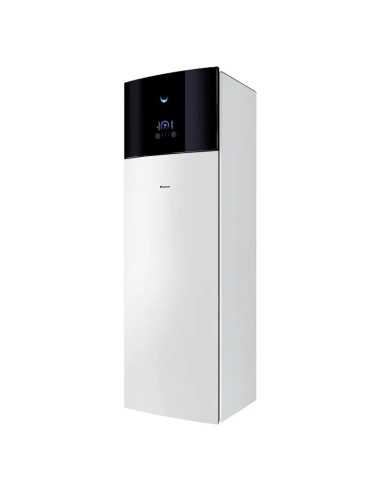

• Indoor unit dimensions: 1855 x 595 x 634 mm - 133kg;

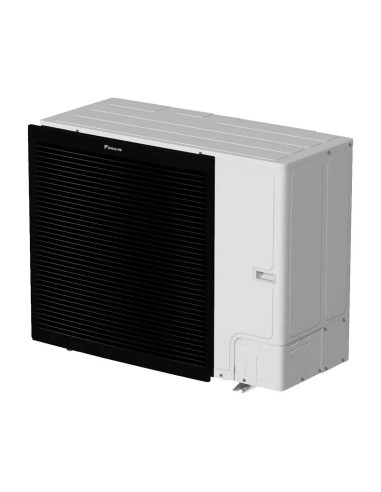

• Dimensions external unit: 870 x 1100 x 460 mm - 101kg.

Technical characteristics

• Heating capacity (kW): 12.44(1)/9.02(2);
• Nominal cooling capacity (kW): 17.44(1)/13.15(2);
• Max flow temperature 60°C;
• Cooling terminal: Water;
• Heating terminal: Water;
• Domestic hot water: Yes;
• DHW storage: Yes;
• Storage capacity (l): 230 L;
• Power supply: single-phase;
• Energy class: A+++;
• Refrigerant gas: R32;
• Remote control and monitoring via app optional.

Additional features

The Daikin air-to-water heat pump kit consists of a 11kW single-phase outdoor unit and an EBVX11S23D6V air-to-water heat pump indoor unit with a 230-liter tank. The Daikin Integrated R32 air/water split system offers heating, cooling, and domestic hot water (DHW) production with extremely high efficiency.

The indoor unit, featuring an elegant and modern design, guarantees high performance for any application, thanks to a flow temperature of up to 60°C. It is ideal for both radiators and underfloor heating systems. It stands out for its ease of installation, as all system and refrigerant gas connections are located on the top of the unit.

Maintenance is also simple, thanks to the frontal accessibility of the electronic board and hydraulic components. Additionally, you can control and monitor the system remotely via the app.

NOTE: The m² value is indicative and depends on insulation, climate zone, and type of distribution system.

NOTE: Mandatory testing is included in the price.
