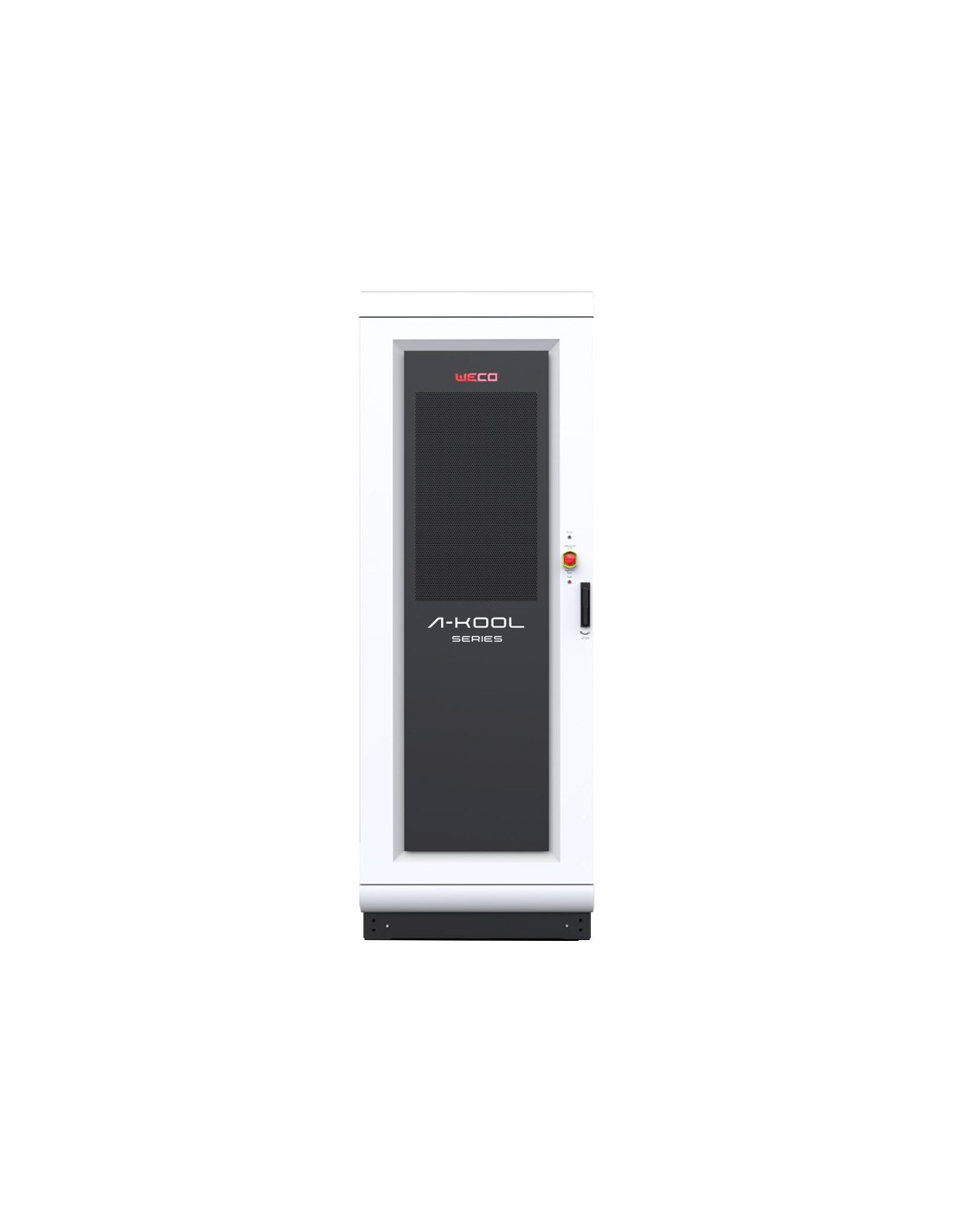

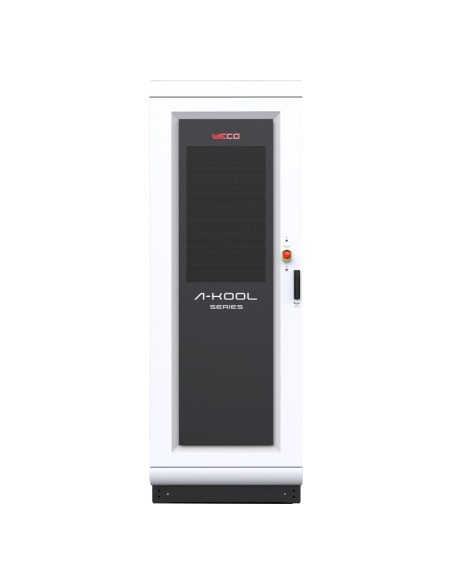

Weco A-KOOL 7X 113kWh C&I Storage System

The A-KOOL 7X BESS cabinet is designed for more compact commercial applications. Battery cabinets with integrated HVAC systems provide efficient temperature management, ensuring higher performance, component lifespan, greater power density, adaptability to different climates, and reduced maintenance, ensuring reliable, quiet, and energy-efficient performance.

Perfect integration with WeCo TK 25-50 series inverters.

WECO offers a free first COMMISSIONING service (system start-up after installation).

Main Features

• Model: A-KOOL 7X 113kW;
• Battery capacity: 112.53 kWh;
• Battery type: LiFePO4 (Lithium Iron Phosphate);
• Battery specifications: 314 Ah - 3.2 V;
• Maximum battery capacity: 16.076 kWh;
• Recommended discharge/charge current: 1.5 C;
• Battery voltage range: 324~ 397Vdc;
• Cycle life (80% DOD): 8,000 cycles;
• Protection systems: Overload protection, high temperature protection, short circuit;
• Communications: Modbus AUV, mobile app, status alerts;
• Operating temperature: from -10°C to +50°C;
• Cabinet dimensions: 1400 x 800 x 2365 mm
