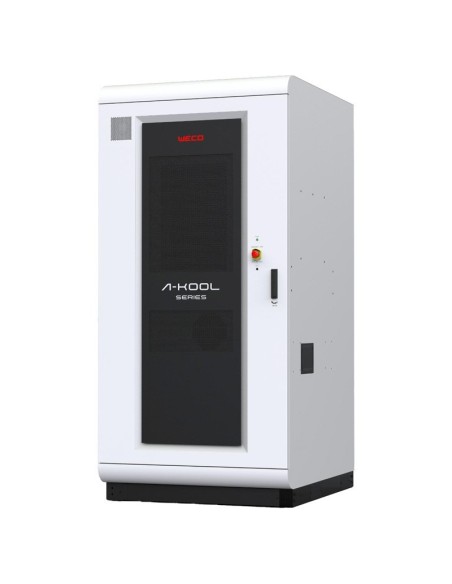

A-KOOL C&I Weco 76.7kWh storage system designed for double inverters
B00085
The system is composed of: 10 1C Weco 7.67kWh battery modules, two HV BOX, and the cabinet.
Prepared for the installation of a double three-phase WECO TK SERIES or SOLIS hybrid inverter from 20kW to 50kW.
WECO offers the first COMMISSIONING service (system commissioning after installation) free of charge.
A-KOOL C&I Weco 76.7kWh storage system designed for double inverters
The system is composed of: 10 1C Weco 7.67kWh battery modules, two HV BOX, and the cabinet. Prepared for the installation of a double three-phase WECO TK SERIES or SOLIS hybrid inverter from 20kW to 50kW.
WECO offers the first COMMISSIONING service (system commissioning after installation) free of charge.
Main Features
- A/C cooling / heating;
- Fire protection system;
- CO2 smoke detector;
- Audible and visual alarm;
- Overpressure valve window;
- Locking mechanism;
- Inverter input;
- Access control;
- Lithium batteries;
- Flood sensor;
- Isolator + contactors;
- Washable filter;
- Stop button emergency.
Other Features
- Mobile App: Connects to the WeCo mobile app, allowing real-time monitoring of performance and energy consumption;
- IP55: Effectively prevents the entry of significant amounts of dust, while safeguarding against water jets and maintaining their functionality and safety in various environments;
- LiFePO4: The battery features high energy density, long cycle life, excellent thermal stability, and increased safety;
- Fire Suppression: Safety always comes first! Each module is equipped with a sophisticated fire protection system, offering unparalleled safety and peace of mind.
- Dimensions: 1130 x 1300 x 2366 mm.
- Storage capacity
- Lithium iron phosphate
- Accumulation capacity
- 76.70kW
- Battery brand
- Weco
- Connectable inverters
- 2
