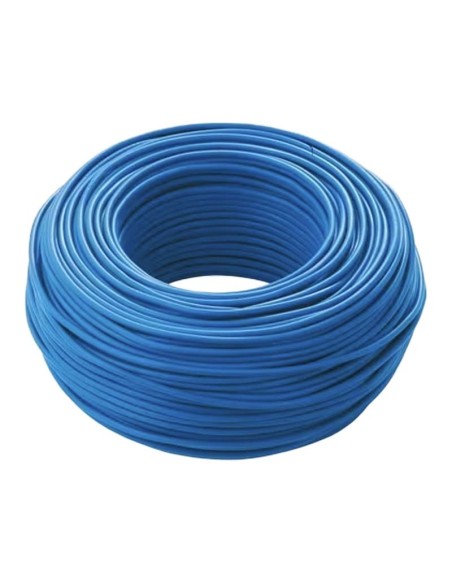

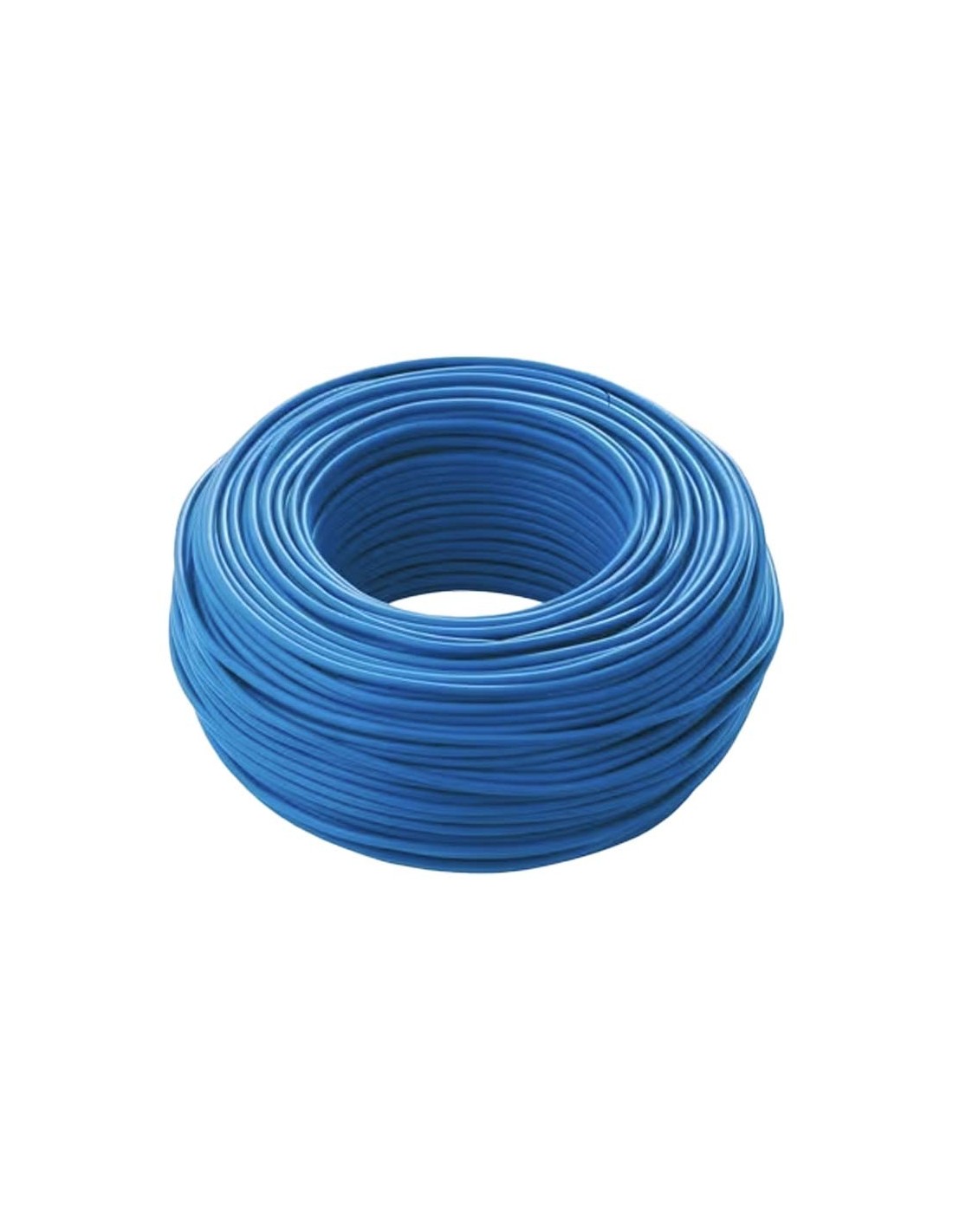

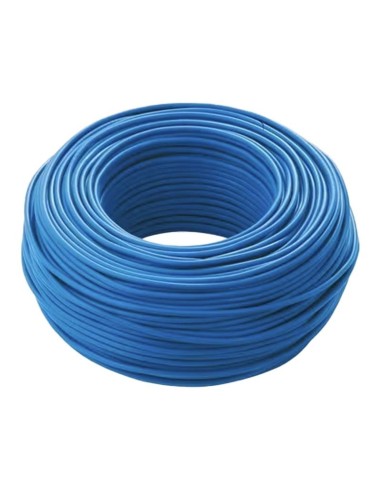

100m of coiled cable - FF5FS171X2.5BL FS17 450/750V 1 X 2,5 Blue 5015 - FS171X2.5BL
  • New
100m of coiled cable - FF5FS171X2.5BL FS17 450/750V 1 X 2,5 Blue 5015 - FS171X2.5BL

100m of coiled cable - FF5FS171X2.5BL FS17 450/750V 1 X 2,5 Blue 5015 - FS171X2.5BL

FF5FS171X2.5BL

FS17 - Single-core power cables with flexible conductors and PVC insulation, unsheathed, for fixed installation.

Would you like to know the price of this article?
Sign up now (reserved to companies)

Hai bisogno di grandi quantità?

Richiedi un'offerta dedicata!

Se sei interessato all'acquisto di pallet o container di moduli fotovoltaici o grandi quantità di altri prodotti, compila il form e sarai ricontattato da un nostro esperto commerciale per un'offerta dedicata.

Accedi per richiedere un'offerta

You might also like



Main Features

  • Nominal conductor cross-section - 2.5 mm²;
  • Number of wires - 1;
  • Conductor class - Class 5 = flexible;
  • Sheath material - None;
  • Rated voltage U0 - 450 V.

FS17 - Single-core power cables with flexible conductors and PVC insulation, unsheathed, for fixed installation. Flame-retardant and with reduced halogen (corrosive gas) emission.

For installation in surface-mounted or flush-mounted conduits or in trunking. Suitable for fixed, protected installation on or within lighting fixtures, and inside switchgear and control gear assemblies with a rated voltage of up to 1000 V AC and 750 V DC.

Suitable for general applications in construction works subject to reaction-to-fire requirements; suitable for bunched installation in environments with higher fire risk (as per CEI 64-8:V4 standard, section 751.04.2.8.a), with a reaction-to-fire class of Cca-s3,d1,a3.

STANDARDS:
CEI-UNEL 35716; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50267-2-1; CEI EN 50525-1; CEI EN 50525-2-31; CEI EN 60754-2; EN 61034-2; EN 50575:2014+A1:2016.

Thickness
2,5mm
Color
Blue
