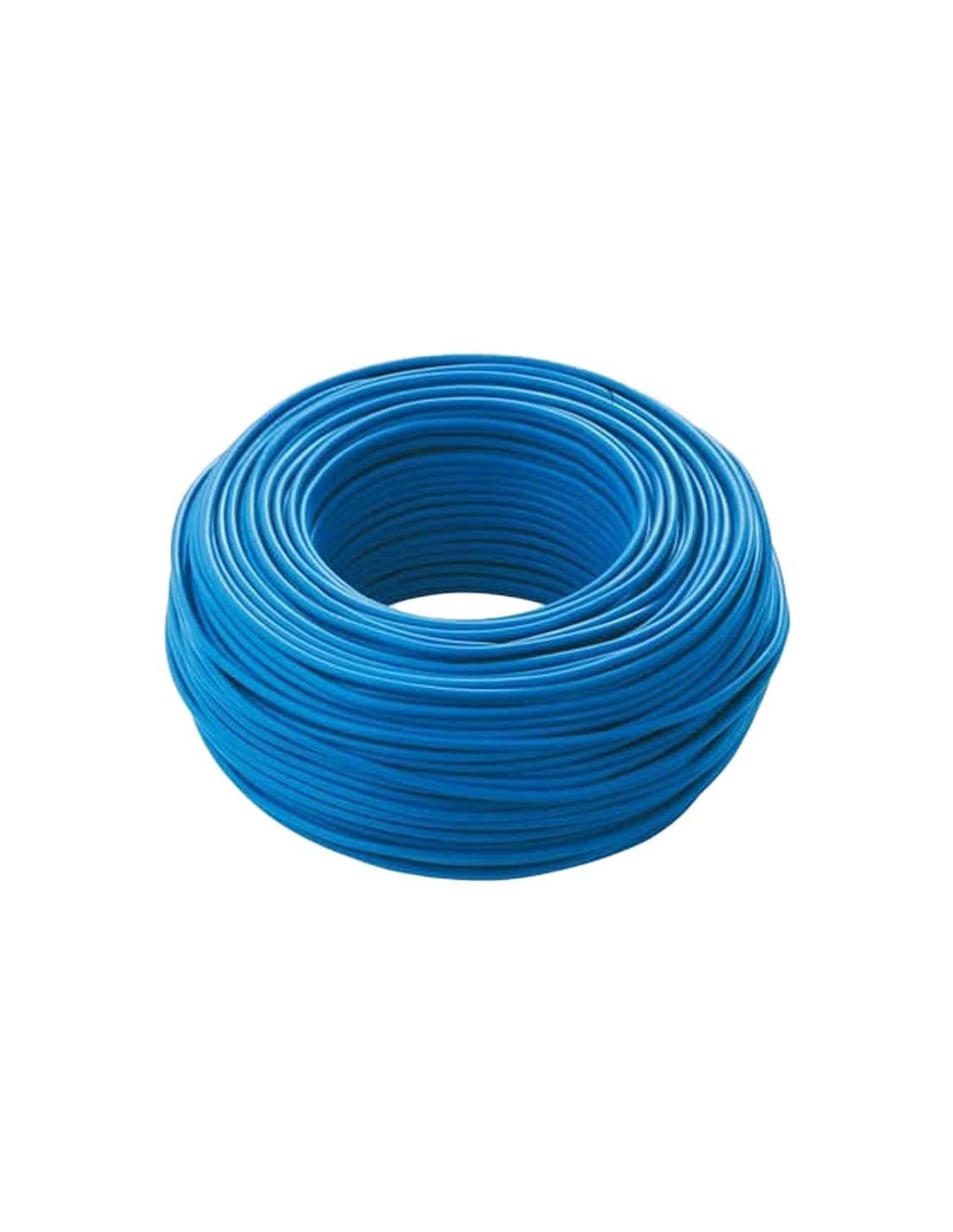

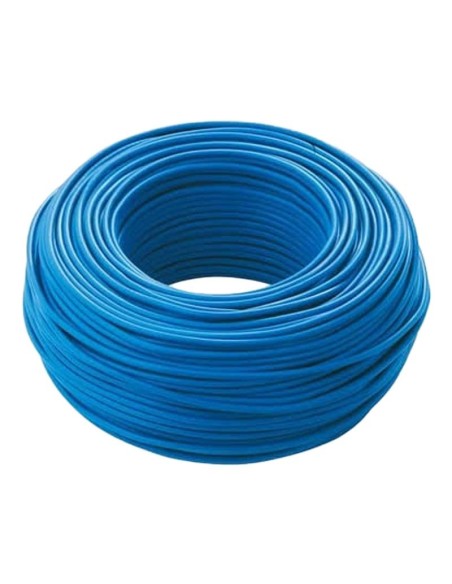

100m of coiled cable - FF5FS171X10BL FS17 450/750V 1 x 10 Blue 5015 - FS171X10BL

Key features

• Nominal conductor cross-section - 10 mm²
• Number of strands - 1
• Conductor class - Class 5 = flexible
• Sheath material - None
• Rated voltage U0 - 450 V

FS17 - Single-core power cables with flexible conductors and PVC insulation, unsheathed, for fixed installation. Flame-retardant and with reduced halogen (corrosive gas) emission.

For installation in surface-mounted or flush-mounted conduits or in trunking. Suitable for fixed, protected installation on or within lighting fixtures, and inside switchgear and control gear assemblies with a rated voltage of up to 1000 V AC and 750 V DC.

Suitable for general applications in construction works subject to reaction-to-fire requirements; suitable for bunched installation in environments with higher fire risk (as per CEI 64-8:V4 standard, section 751.04.2.8.a), with a reaction-to-fire class of Cca-s3,d1,a3.

STANDARDS:
CEI-UNEL 35716; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50267-2-1; CEI EN 50525-1; CEI EN 50525-2-31; CEI EN 60754-2; EN 61034-2; EN 50575:2014+A1:2016.
