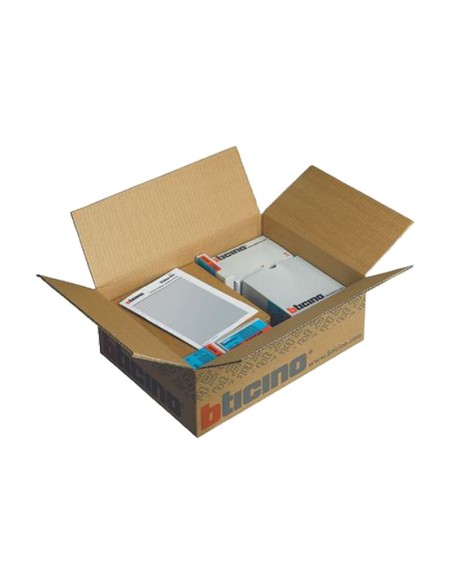

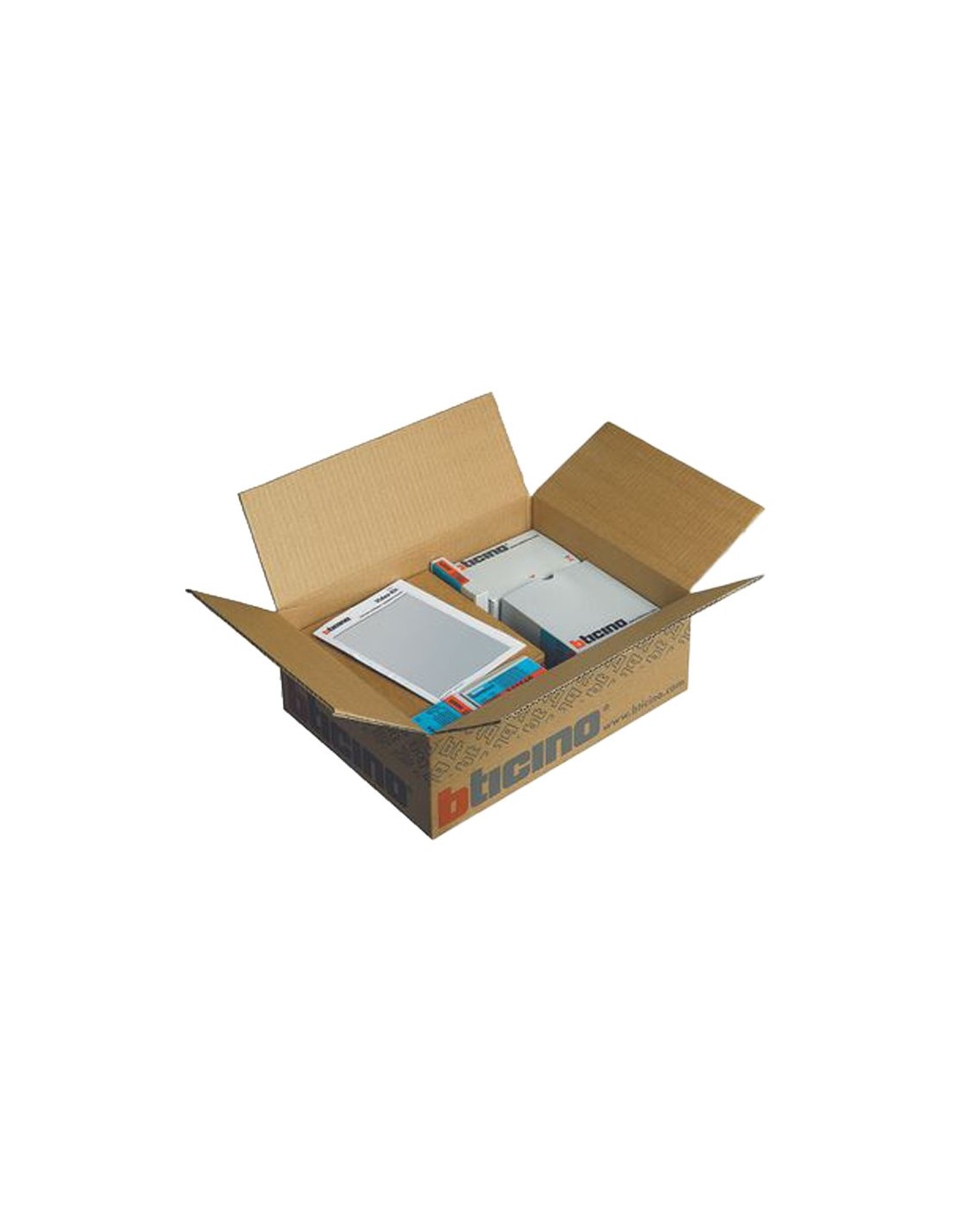

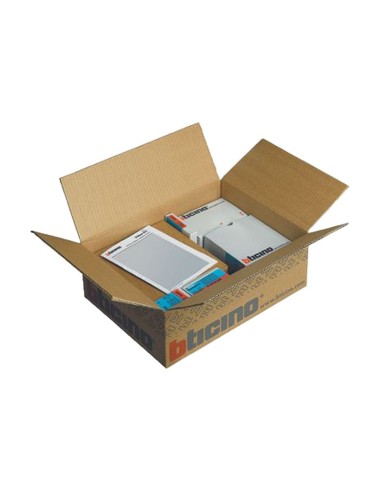

Basic system kit with Sfera audio-video module and power supply Bticino

Basic system kit containing the Sfera audio-video module (BT-351500) and the power supply (BT-346050).

Sfera audio-video module featuring a high-quality, wide-angle 5 MP camera with digital filters and white LEDs to illuminate the field of view. The high-quality digital video signal is transmitted to video internal units via PAL encoding over 2-wire SCS BUS technology.

Speaker and microphone volume adjustments. Supports up to 98 pushbutton calls using additional double-row pushbutton modules. Horizontal viewing angle (119°), vertical viewing angle (92°).

Allows activation of an electric lock connected directly to terminals S+ and S- (18 V 4 A impulsive – 250 mA holding current at max 30 Ohm) and connection of a local door-release pushbutton to terminals PL. Prepared for an additional power supply.

Equipped with front LEDs to indicate operating status: door release, active communication, call in progress, and system busy. Integrated optical sensor for activating night-time backlighting.

To be completed with specific Sfera New and Sfera Robur front covers. The device must be configured either physically or via PC using dedicated software—available for free download at www.homesystems-legrandgroup.com.

Power supply for 2-wire audio and video systems in a 6-DIN modular housing. Power supply: 110–240 V AC.

@ 50–60 Hz. It provides two Safety Extra-Low Voltage (SELV) outputs (one across the BUS TK, BUS PI, and SCS terminals, and one across terminals 1–2).
