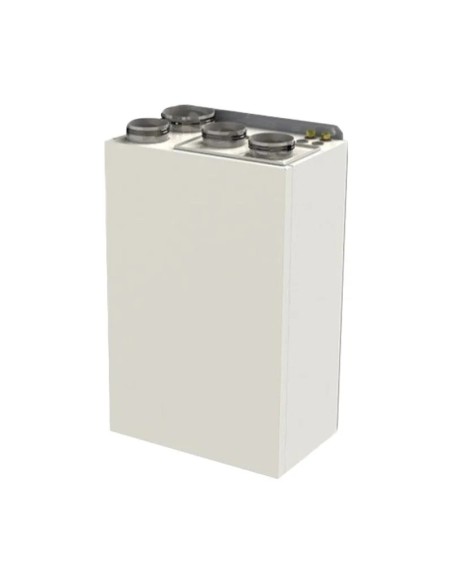

Daikin REV 020 W dehumidifier with dampers and air renewal and heat recovery system water-based operation
Daikin REV 020 W dehumidifier with dampers and air renewal and heat recovery system water-based operation

Daikin REV 020 W dehumidifier with dampers and air renewal and heat recovery system water-based operation

IT.REV020WIS0M0

The REV 020 W from Daikin is a dehumidifier for radiant panel systems with an integrated high-efficiency air freshening and heat recovery system.

NOTE: ACCESSORIES AND AIR DISTRIBUTION ARE AVAILABLE ON REQUEST

Would you like to know the price of this article?
Sign up now (reserved to companies)

Hai bisogno di grandi quantità?

Richiedi un'offerta dedicata!

Se sei interessato all'acquisto di pallet o container di moduli fotovoltaici o grandi quantità di altri prodotti, compila il form e sarai ricontattato da un nostro esperto commerciale per un'offerta dedicata.

Accedi per richiedere un'offerta

You might also like



Daikin REV 020 W dehumidifier with dampers and air renewal and heat recovery system water-based operation

The REV 020 W from Daikin is a dehumidifier for radiant panel systems with an integrated high-efficiency air freshening and heat recovery system.

Main Features

  • Series: REV;
  • Version: W = operates entirely with water and therefore without a compressor;
  • Power supply: Single-phase;
  • Integrated options: Dampers + Indoor Air Quality (IAQ);
  • Dehumidification capacity: 29 l per day;
  • Air flow rate: 260 m3/h;
  • Cooling capacity: 1920 W;
  • Noise level: 38 dB(A);
  • Refrigerant gas: -;
  • Dimensions (W x D x H): 600 x 380 x 980 mm.

Other Features

  • Ceiling-mounted (HO/RER) and wall-mounted (REV) for ducted systems;
  • Includes the new EVO touch control with temperature and humidity control;
  • HO unit with super-light polypropylene casing;
  • The basic version features G2 filters on both the supply and outlet air. that at the recovery unit inlet;
  • Includes T/RH probes;
  • Available in three versions:
    - N Version: dehumidification only and air renewal with heat recovery;
    - C Version: dehumidification with cooling integration and air renewal with heat recovery;
    - W Version: operates entirely with water and therefore without a compressor.
Air flow rate
260 m³/h
Dehumidifier series
REV - W
Dehumidification power
29 L
Control
Included
