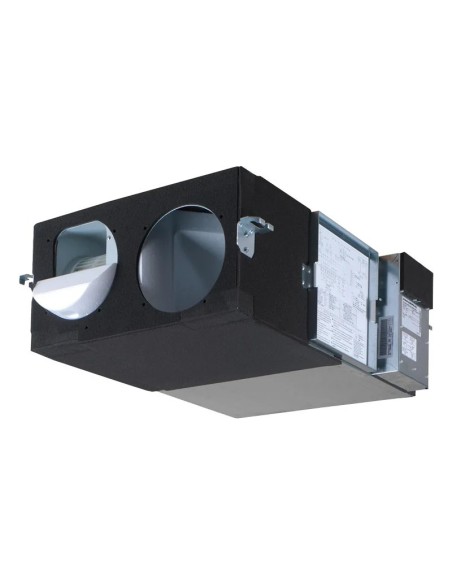

VAM-FC 250 mc/h heat recovery unit Daikin

The Daikin VAM-FC is a highly efficient ventilation unit, ideal for commercial applications.

Main Features

• Model: VAM250FC9;

• Power Supply: Single Phase;
• Power Consumption – 50Hz: 0.161 / 0.161 kW;

• Cabinet: Galvanized steel sheet;

• Dimensions: 285 x 776 x 525 mm;

• Weight: 24 kg;

• Fan: 70.0 Pa;

• Sound Pressure Level– 50 Hz: 28 dBA;

• Heat Exchange Element: Specially treated fireproof paper;

• Connecting Duct Diameter: 150;

• Operating Mode: Heat Exchange Total heat air-to-air cross-flow;

• Sound Power Lwa: 43 dB.

Other Features

• Heat recovery ventilation with post-heat treatment and humidification;
• The "Free cooling" function is available when the outside temperature drops below the inside temperature (e.g., during nighttime);
• Optional fine and medium-mesh dust filters (ePM10 70% (M6), ePM1 55% (F7), and ePM1 70% (F8) allow you to meet customer requirements or regulations;
• Shorter installation times thanks to easy adjustment of the nominal air flow rate, resulting in reduced use of dampers compared to traditional installation;
• Ideal solution for shops, restaurants, or offices that require maximum floor space for furniture and furnishings;
• Reduced energy consumption with a specially designed DC fan motor;
• Possible use as a single module or integrated into the Sky Air or VRV system;
• Wide range of units: air flow from 150 to 2,000 m³/h;
• Specially designed heat exchanger element - uses a material with high latent heat recovery qualities (HEP);
• No condensate drain pipes required;
• Can operate over a wide range of static pressures;
• Comprehensive solution for fresh air supply with optional electric heater.
