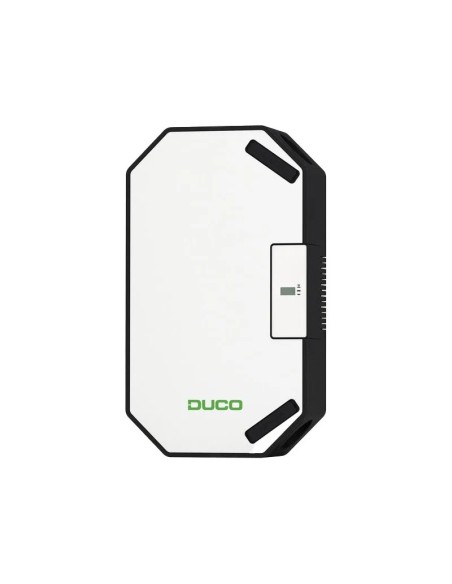

DucoBox Energy Sky D275 heat recovery unit Daikin

DucoBox Energy Sky from Daikin is a flexible and compact silent ventilation unit. Thanks to its features, it is the ideal solution for residential buildings and small utility rooms.

Main Features

• Model: DUCOBOX ENERGY SKY D275
• Flow rate: 275 m3/h
• Recovery efficiency: 91%
• Maximum available head: 200 Pa
• ErP energy efficiency class: A+/A
• Air connections: 4x160 (n x mm)
• Dimensions (W x D x H): 670 x 1180 x 295 mm
• Weight: 19 kg
• Noise Level: 45 dB(A)

Other Features

• Flexible Solution
  Thanks to its compact dimensions of 670 x 1180 x 295 mm, the unit ensures minimal space and can be installed on either a wall or ceiling. The unit also supports different configurations (standard or reversible) and therefore adapts to any type of room and environment. The 45° connections ensure flexibility and space optimization;
• R/L Switch - 100% Software-Based
  This unit is very easy to use as no physical intervention is required. The left/right switch is 100% software-controlled thanks to the patented double bypass principle.
• Compact and lightweight
  The lightweight ceiling model (19 kg) complements the Energy family of heat recovery central ventilation units and fits easily into suspended ceilings thanks to its low height of 295 mm. The unit can also be wall-mounted.
• Intelligent copy function
  Thanks to the integrated software "copy" function, the installer can copy the settings and parameterization of one DucoBox Energy Sky unit to the next. This function is particularly useful when building series with similar houses.
• Automatic calibration
  Relying on the principles of constant pressure calibration, this method allows for a 50% reduction in calibration time. DUCO saves you time and money;
• Intelligent Power Control
  The DucoBox Energy Sky unit automatically adjusts ventilation based on actual needs using the integrated 2-zone control (optional). This allows the ventilation system to be automatically controlled based on CO2 and humidity detection, making ventilation even more efficient. The result is energy savings of 40% and a 30% reduction in noise.
