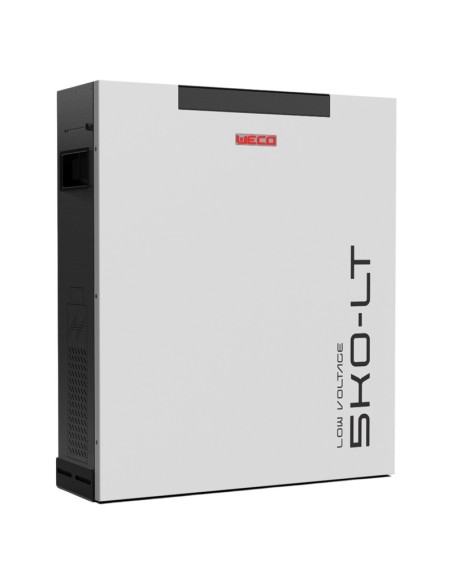

Integrated low voltage energy storage system for reliable residential performance.

A compact LiFePO₄ solution designed to provide efficient self-consumption, stable backup power, and seamless integration with hybrid systems.

Battery capacity 5.12 kWh, scalable up to 537.6 kWh in multi-cluster configuration.

Main Features

Low Voltage

Provides safe and efficient energy storage solutions, ideal for residential and small-scale applications, with reliable performance and easy integration.

Multiple Configuration

Thanks to flexible configuration, units can be wall-mounted or floor-mounted, adapting to various capacity and space needs. Stackable up to 5 units, up to 15 in parallel.

Scalability

Designed for scalability, allows seamless expansion to meet growing energy demand by adding more units in parallel or stacked configurations. Supports continuous expansion. Up to 105 modules, 537.6 kWh in multi-cluster configuration.

Integrated Wi-Fi and Bluetooth

Enables effortless wireless communication and remote monitoring, enhancing convenience and operational flexibility. RS485, CAN, RS232 (with external device).

Technical Specifications

• Maximum battery capacity: 5.12 kWh;
• Maximum cell capacity: 103 Ah;
• Nominal voltage of single module: 51.2 Vdc;
• Depth of discharge: up to 98%;
• Module expandability: up to 15 in parallel (105 with LV HUB accessory);
• Input protection: IP20 (for indoor use only);
• Communication interface: RS485, CAN, RS232, Wi-Fi, and Bluetooth;
• Standard temperature range: 25°C ± 10°C;
• Expected life cycle: > 6000 cycles @ 25°C;
• Accessories included: Wall mounting bracket, power cables for parallel or inverter connection, communication cables for parallel or inverter;
• Dimensions & Weight: 492 × 580 × 155 mm - 46 kg;
