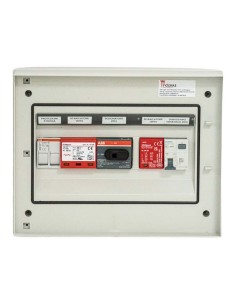

DC field panel 2 indipendent strings 1000VDC - QDC2I-1000
DC field panel 2 indipendent strings 1000VDC - QDC2I-1000

DC field panel 2 indipendent strings 1000VDC - QDC2I-1000

QDC2I-1000

Would you like to know the price of this article?
Sign up now (reserved to companies)

Hai bisogno di grandi quantità?

Richiedi un'offerta dedicata!

Se sei interessato all'acquisto di pallet o container di moduli fotovoltaici o grandi quantità di altri prodotti, compila il form e sarai ricontattato da un nostro esperto commerciale per un'offerta dedicata.

Accedi per richiedere un'offerta

You might also like



Technical features

ELECTRICAL CHARACTERISTICS
Code QDC2I-1000
Type DC
DC Configuration 2IN-2OUT
Inputs/Strings 2
DC Outputs 2
Type Independent
Rated Voltage 1000 V
Rated Current per Input 16 A
Fuse/Protection Rating 16 A
SPD 1000 VDC - Type 2
Disconnector/Circuit Breaker 30 A - 1000 VDC
Protection Rating IP65
REFERENCE STANDARDS
Reference Standard CEI EN 61439-1/2
AC/DC side
DC side
Electrical panel brands
Secsun
CC Configuration
2IN-2OUT
