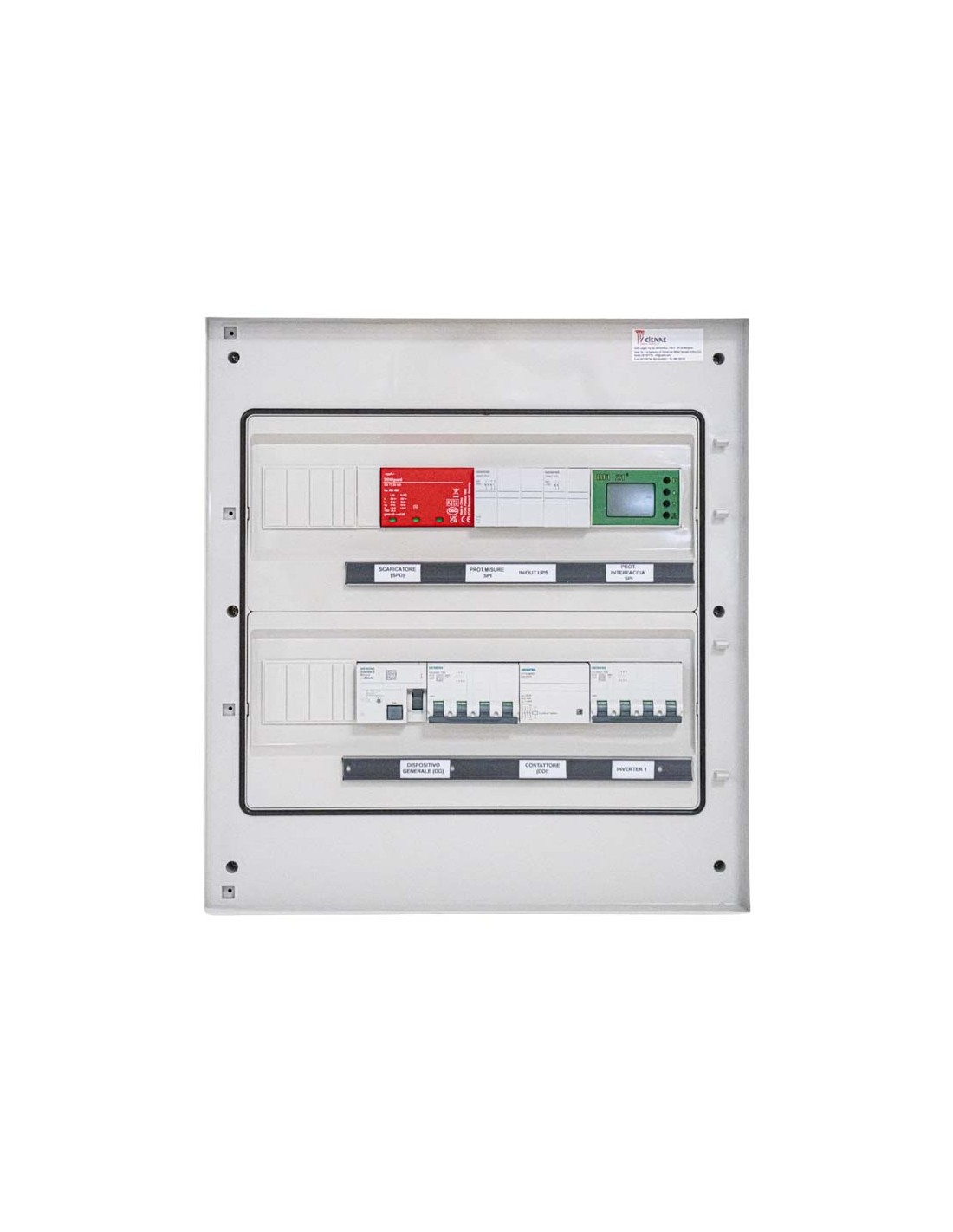

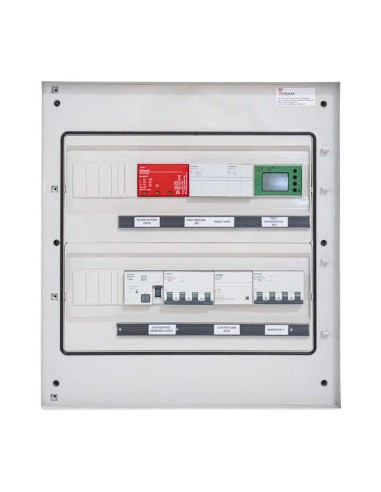

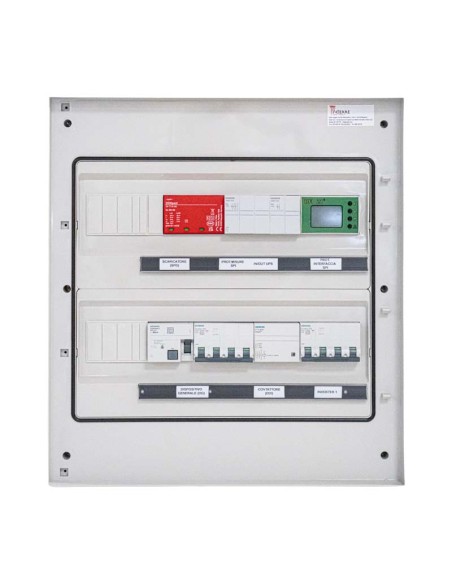

Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre
Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre

Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre

MM007

Three-phase AC panel 12/15kW 25A 400V.

Would you like to know the price of this article?
Sign up now (reserved to companies)


Electrical Characteristics

  • ICR-QAC 12/15 kW 25A (1 Inverter);
  • Complies with CEI-021 Current 25A 400 V;
  • IMTD 4x25A 6 kA (DG);
  • 1 IMTD 4x25A 6 kA 300mA Cl. A (Inverter Protection);
  • Contactor (DDI) 30A-AC3;
  • Surge arrester 4P 440VAC T2 (SPD);
  • 2 - 1P+N fuse holders + 6A fuses (SPI Power Protection / AUX Gen. Protection);
  • 3P+N fuse holders + 2A fuses (SPI Meter Protection);
  • In/Out provision (DDI/M2);
  • External trip provision;
  • UPS IN/OUT provision;
  • SPI CEI 021;
  • 36-Module IP66 Box (424x460x140mm);
  • Terminal blocks Input/Output;
  • Single-Line Diagram - Di.co - SPI Test Report.
Power
12kW
15kW
Single-phase/Three-phase
Three-phase
AC/DC side
AC side
CEI
0-21
Electrical panel brands
Icierre
