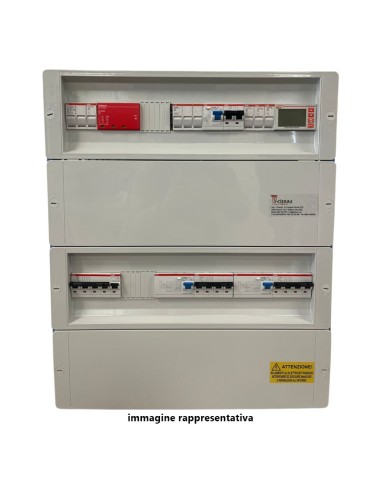

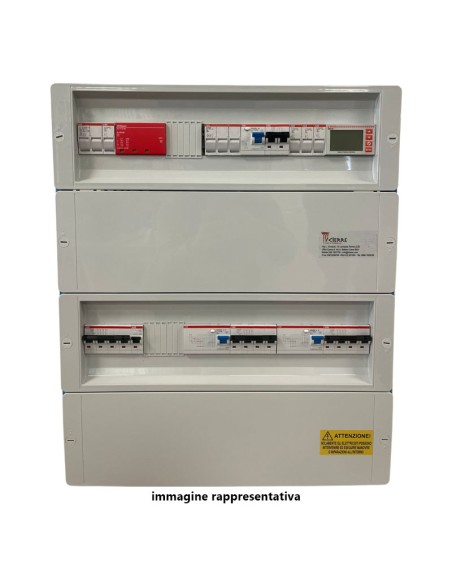

Three-phase AC panel 75/95kW 160A 400V CEI-021 for 1 inverter Icierre

Electrical Characteristics

• ICR-QAC 75/95 kW 160A (1 Inverter);
• Compliant with CEI-021 - Current 160A - 400 V;
• IMT 4x160A 18kA + Adjustable Differential Relay + Toroid (DG);
• Shunt Release Coil with Backup Function (DDR);
• 1 - IMT 4x160A 18kA Inverter Protection;
• Contactor (DDI) 195A-AC3;
• Surge Arrester 4P 440VAC (SPD);
• 2 - Fuse Holder 1P+N (Power Protection SPI / Auxiliary Gen);
• Fuse Holder 3P+N (SPI Measurement Protocol);
• Provision for external Auxiliary Power Supply;
• Provision for Input/Output (DDI/M2);
• Provision for external trip;
• Provision for UPS IN/OUT;
• SPI CEI 021;
• 140-Module IP66 Panel;
• Input/Output Terminal Blocks;
• Single-Line Diagram - Di.co - SPI Test Report.
