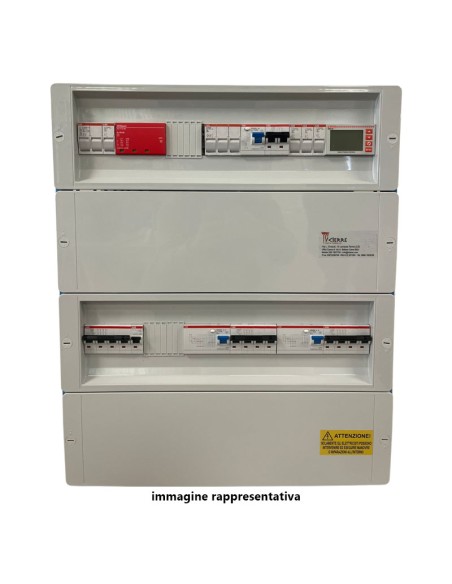

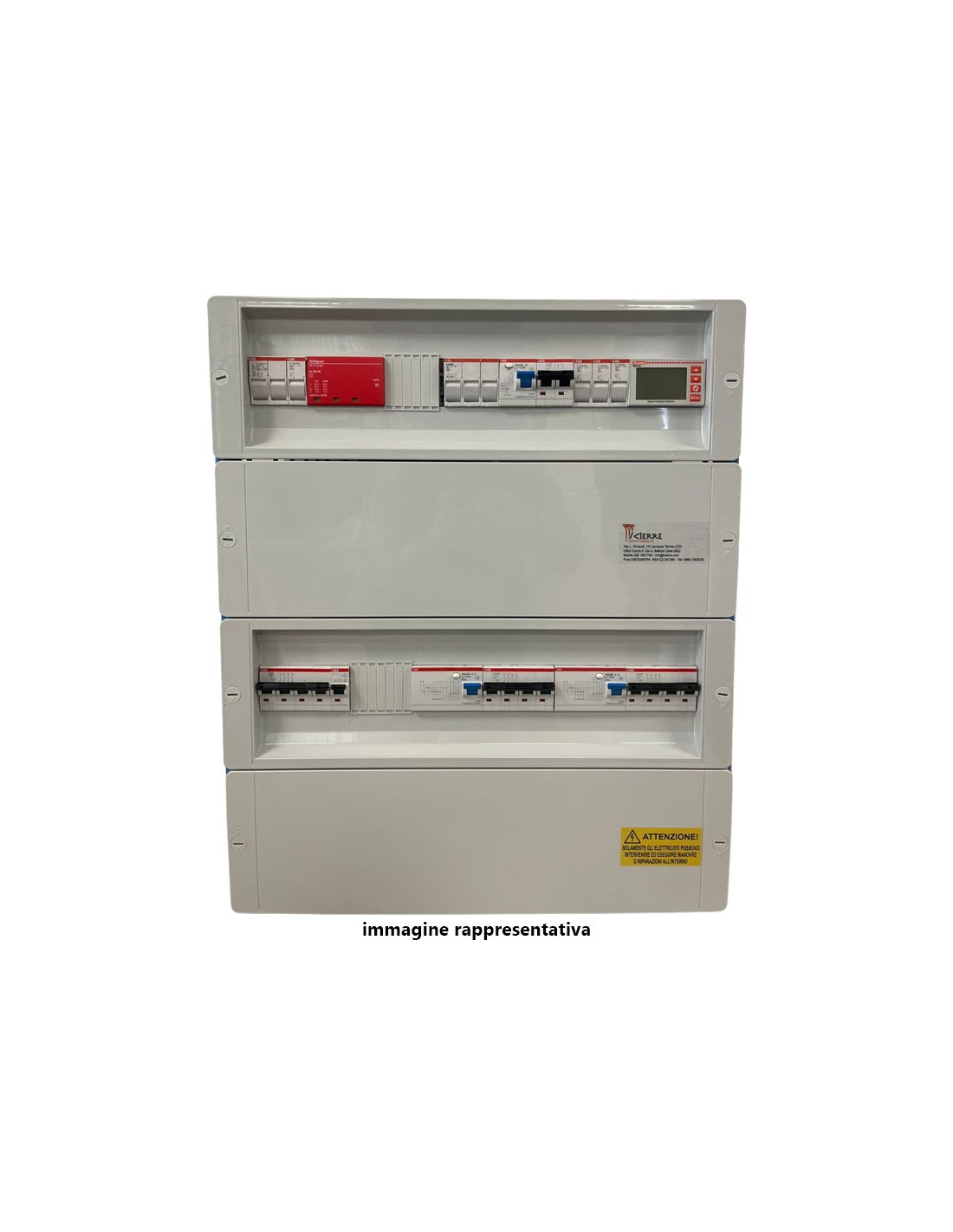

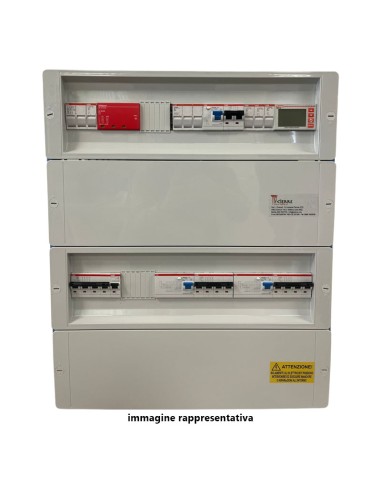

Three-phase AC panel 45/55kW 100A 400V CEI-021 for 1 inverter Icierre
Three-phase AC panel 45/55kW 100A 400V CEI-021 for 1 inverter Icierre

Three-phase AC panel 45/55kW 100A 400V CEI-021 for 1 inverter Icierre

MM065-L

Three-phase AC panel 45/55kW 100A 400V.

Would you like to know the price of this article?
Sign up now (reserved to companies)


Electrical Characteristics

  • ICR-QAC 45/55 kW 100A (1 inverter);
  • Complies with CEI-021- Current 100 A - 400 V;
  • IMTD 4x100A-10 kA-300 mA Cl. A-Backup (DDR);
  • 1-IMT 4x100A-10 kA Inverter Protection;
  • Contactor (DDI) 150A-AC3;
  • Surge Arrester (SPD);
  • Fuse holder 1P+N (SPI Power Protection) 3P+N (SPI Meter Protection);
  • Provision for external Aux Power Supply;
  • Provision for input/output (DDI/M2);
  • Provision for external trip;
  • SPI CEI 021 - 96 Module Panel (480X540X220) IP66;
  • Input/Output Terminal Blocks;
  • Single-Line Diagram - Di.co - SPI test report.
Power
45kW
55kW
Single-phase/Three-phase
Three-phase
AC/DC side
AC side
CEI
0-21
Electrical panel brands
Icierre
