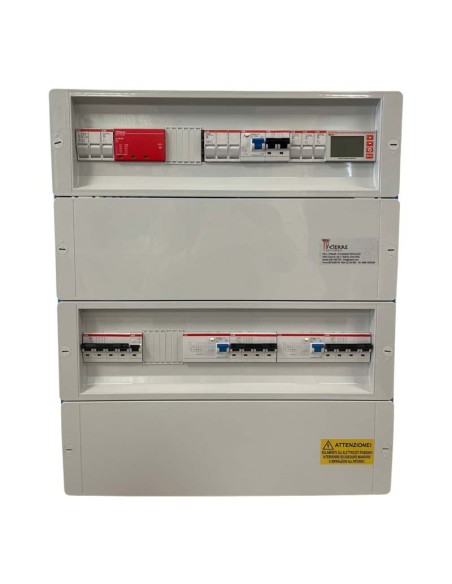

Three-phase AC panel 36/44kW 80A 400V CEI-021 for 1 inverter Icierre

Electrical Characteristics

• ICR-QAC 36/44 kW 80A (1 inverter);
• Compliant with CEI-021 Current 80A 400 V;
• IMT 4x80A 10kA + Adjustable Differential Relay + Toroid (DG);
• Shunt Trip Coil with Backup Function (DDR);
• 1 IMT 4x80A 10kA Inverter Protection;
• Contactor (DDI) 115A-AC3;
• Surge Arrester 4P 440VAC (SPD);
• 2 - Fuse Holder 1P+N (Power Protection SPI / Gen. Aux);
• 3P+N fuse holder (SPI Measurement Protection);
• Provision for external Aux power supply;
• Provision for input/output (DDI/M2);
• Provision for external trip;
• UPS IN/OUT provision;
• SPI CEI 021;
• 72-module panel in thermosetting glass resin IP66;
• Input/Output terminal blocks;
• Single-line diagram - Di.co - SPI test report.
