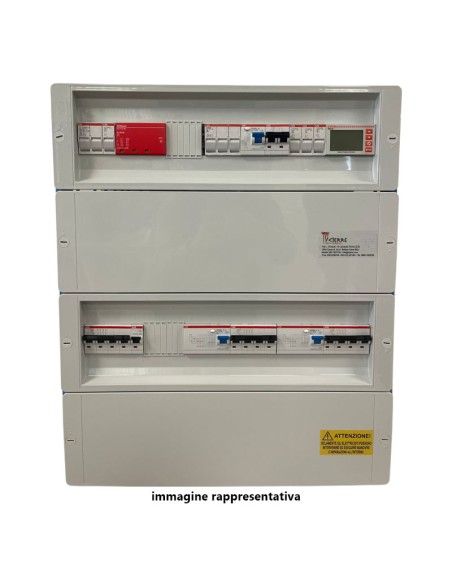

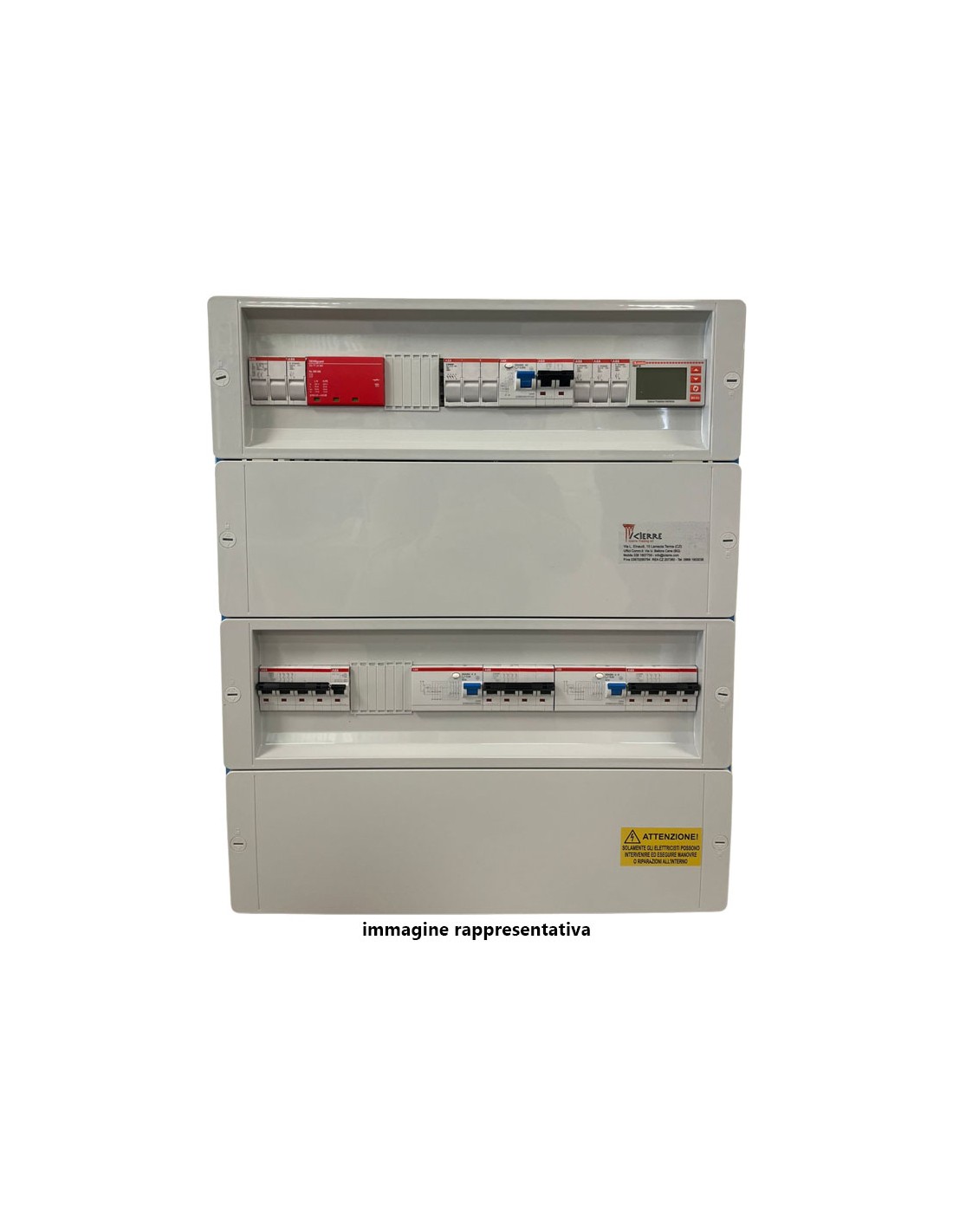

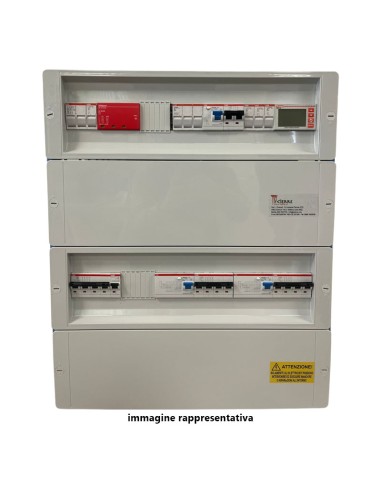

Three-phase AC panel 31/35kW 63A 400V CEI-021 for 1 inverter Icierre

Electrical Characteristics

• ICR-QAC 31/35 kW 63A (1 inverter);
• Complies with CEI-021 - Current 63 A - 400 V;
• IMTD 4x63A-6 kA-300 mA Cl. A- L.C. coil (backup);
• 1 IMT 4x63A-6 kA Inverter Protection;
• Contactor (DDI) 80A-AC3;
• Surge arrester (SPD);
• 1P+N fuse holder (SPI Power Protection);
• 3P+N fuse holder (SPI Measurement Protection);
• Provision for external Aux Power Supply;
• Provision for input/output (DDI/M2);
• Provision for external release;
• SPI CEI 021 - 54 Module Panel (540X560X240) IP66;
• Terminal blocks Input/Output;
• Single-Line Diagram - Di.co - SPI Test Report.
