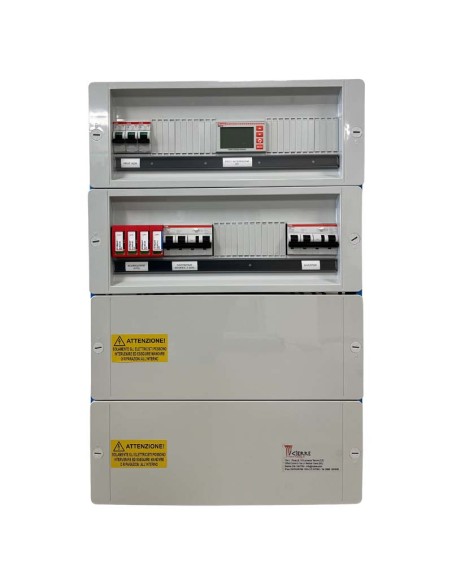

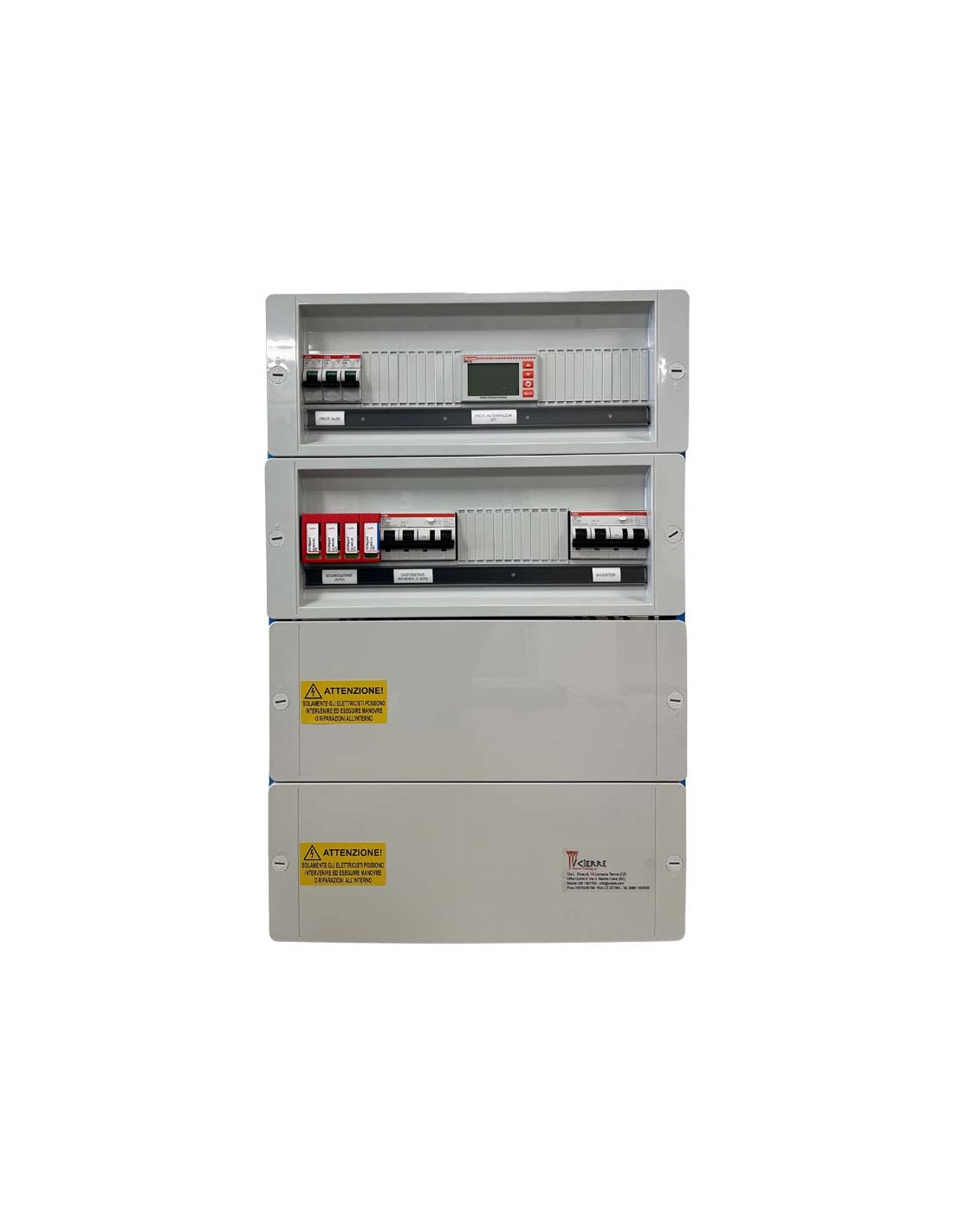

Three-phase AC panel 26/30kW 50A 400V CEI-021 for 1 inverter Icierre

Electrical Characteristics

• ICR-QAC 26/30 kW 50A (1 inverter);
• Compliant with CEI-021 Current 50A 400V;
• IMT 4x50A 6kA (DG);
• Shunt trip coil with backup function (DDR);
• 1 IMT 4x50A 6kA + Differential block 63A 300 mA Class A (Inverter Protection);
• Contactor (DDI) 80A-AC3 + Auxiliary contacts 1NO 1NC;
• Surge arrester 4P 440VAC T2 (SPD);
• 2 - 1P+N fuse holders + 6A fuses (SPI power protection / AUX generation);
• 3P+N fuse holders + 2A fuses (SPI meter protection);
• In/Out provision (DDI/M2);
• External trip provision;
• UPS IN/OUT provision;
• SPI CEI 021;
• 72-module IP66 box (449X656X220 mm);
• Input/Output terminal blocks;
• Single-line diagram - Di.co - SPI test report.
