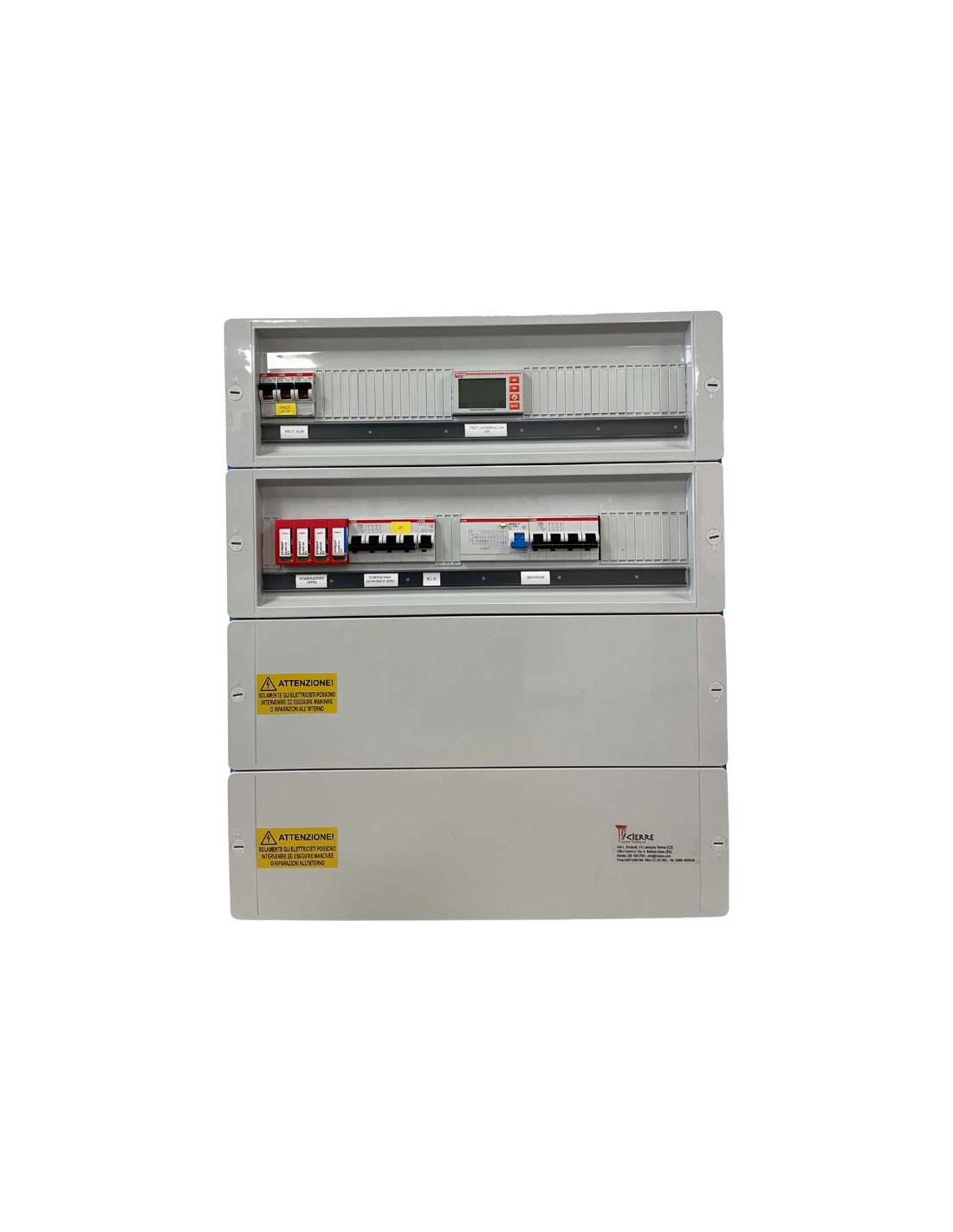

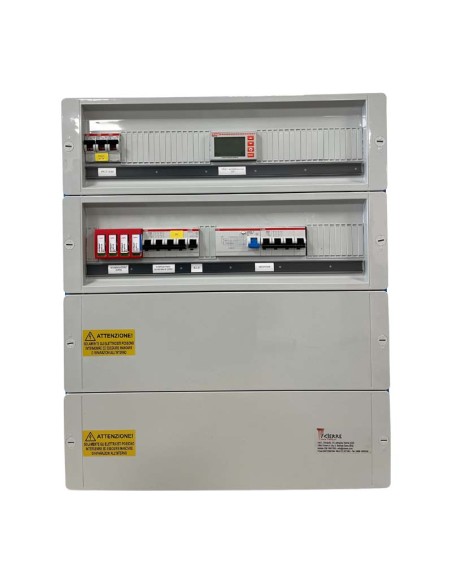

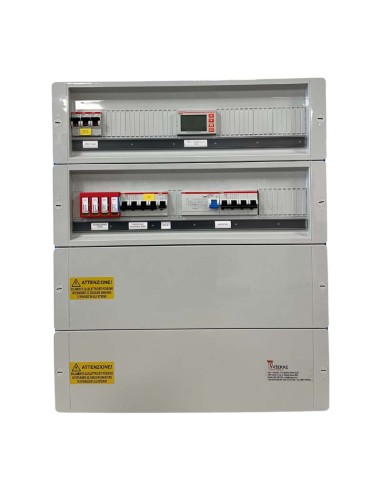

Three-phase AC panel 21/25kW 40A 400V CEI-021 for 1 inverter Icierre
Three-phase AC panel 21/25kW 40A 400V CEI-021 for 1 inverter Icierre

Three-phase AC panel 21/25kW 40A 400V CEI-021 for 1 inverter Icierre

MM006

Three-phase AC panel 21/25kW 40A 400V.

Would you like to know the price of this article?
Sign up now (reserved to companies)


Electrical Characteristics

  • ICR-QAC 21/25 kW 40A (1 inverter);
  • Compliant with CEI-021 - Current 40 A - 400 V;
  • IMT 4x40A 6kA (DG);
  • 1 IMT 4x40A 6kA + RCD block 40A 300 mA Class A (Inverter Protection);
  • Contactor (DDI) 38A-AC3 + Auxiliary contacts 1NO 1NC;
  • Surge arrester 4P 440VAC T2 (SPD);
  • 2 - 1P+N fuse holders + 6A fuses (SPI Power Protection / AUX Gen.);
  • 3P+N fuse holders + 2A fuses (SPI Meter Protection);
  • In/Out provision (DDI/M2);
  • External trip provision;
  • UPS IN/OUT provision;
  • SPI CEI 021;
  • 54-Module IP66 Box (424x655x140mm);
  • Input/Output Terminal Blocks;
  • Single-Line Diagram - Di.co - Test Report SPI.
Power
21kW
25kW
Single-phase/Three-phase
Three-phase
AC/DC side
AC side
CEI
0-21
Electrical panel brands
Icierre
