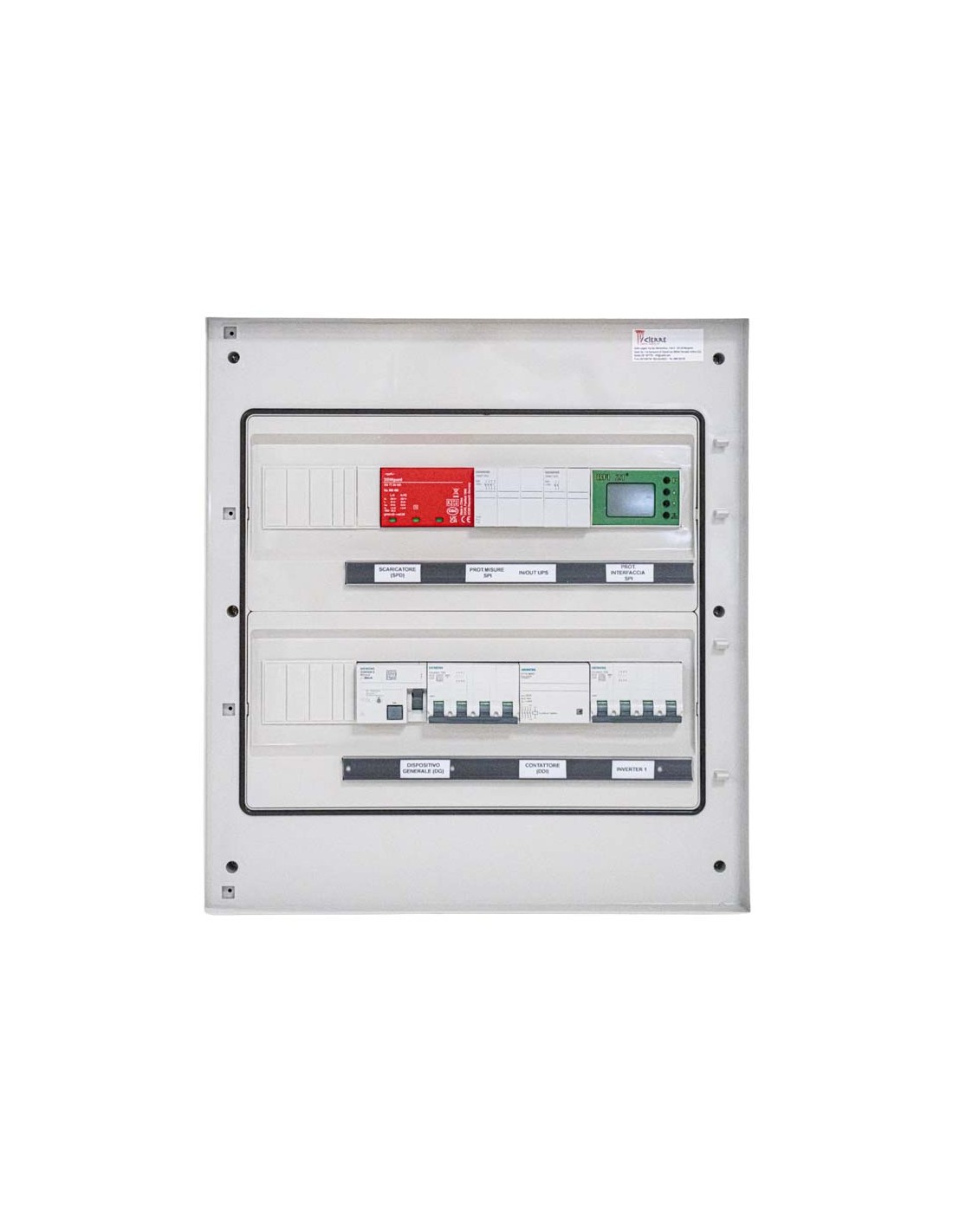

Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre

Electrical characteristics

• ICR-QAC 12/15 kW 25A (1 Inverter);
• Complies with CEI-021 Current 25A 400 V;
• IMTD 4x25A 6 kA-300 mA Cl. A;
• 1 IMT 4x25A 6 kA (Prot. Inverter);
• Contactor (DDI) 30A-AC3;
• Surge arrester 4P 440VAC (SPD);
• 2 - 1P+N fuse holders (SPI Power / Auxiliary Gen. Protection);
• 3P+N fuse holders (SPI Meter Protection);
• Provision for external Auxiliary Power;
• Provision for input/output (DDI/M2);
• Provision for external trip;
• UPS IN/OUT provision;
• SPI CEI 021;
• 36-Module IP65 Panel;
• Input/Output Terminal Blocks;
• Single-line diagram - Di.co - SPI test report.
